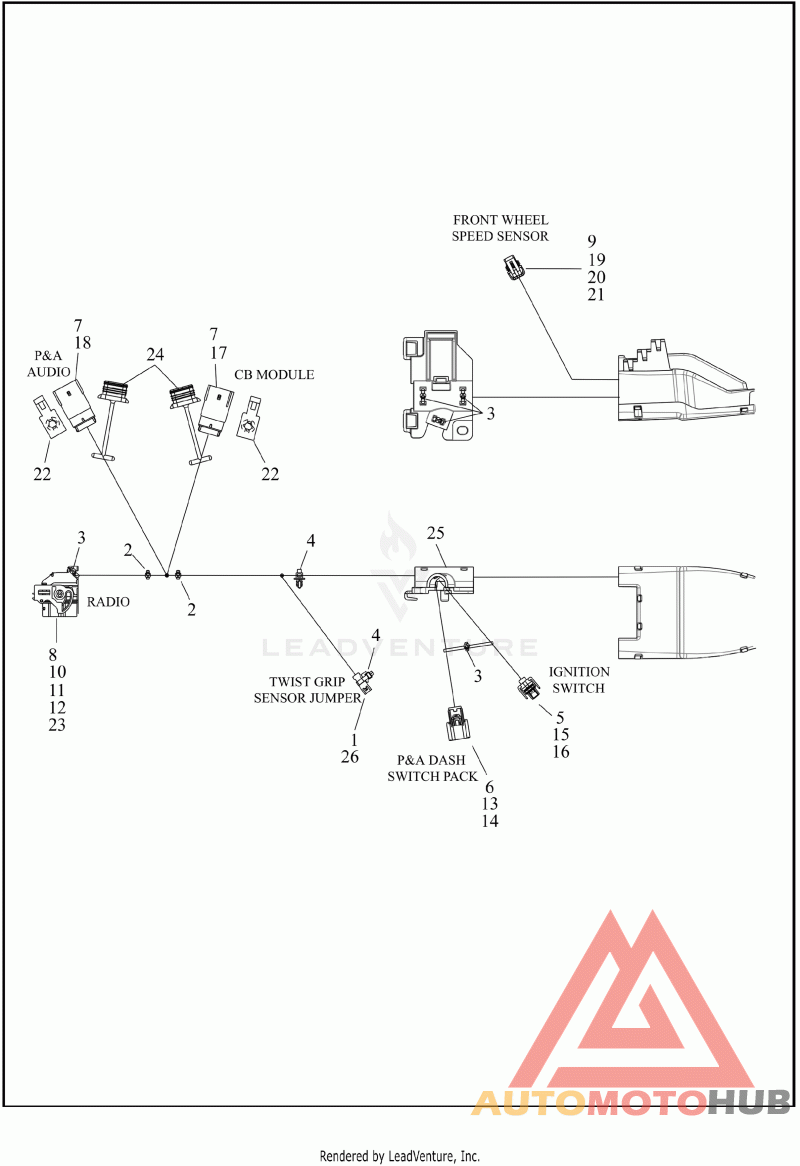

WIRING HARNESS, MAIN - FLHTCUTG (2 OF 10)

Деталь HARNESS,WIRE,MAIN,W/ABS,FLHTCUTG

Деталь SEAL,CONN/TERM,X | pin, 22 AWG

Деталь STRAP,TIE,X

Деталь STRAP,TIE,CABLE

Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored

Деталь HOUSING, 2-WAY FEMALE | two-way socket (gray)

Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG

Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG

Деталь WIRE HARN SUB-CMPNT,COVER | wire

Деталь TERMINAL SCKT 16-20AWG | socket,16-20 AWG

Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG, all terminal locations except those with seal pins or L, M locations

Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG, terminal location L1, L2, L3, L4, M1, M2, M3, M4

Деталь SEAL PIN,0.6MM,PLUG | (white) 0.6 mm

Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black)

Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG

Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)

Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black)

Деталь HOUSING,12-WAY,PIN/GREY | 12-way pin (gray)

Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)

Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)

Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket

Деталь RETAINER,X-MAS TREE CLIP | anchored

Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)

Деталь PLUG,WEATHER,12-WAY PIN(PO) | weather, 12-way pin

Деталь CADDY,RH-STEER HD(PO) | right steer hd

Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black)
