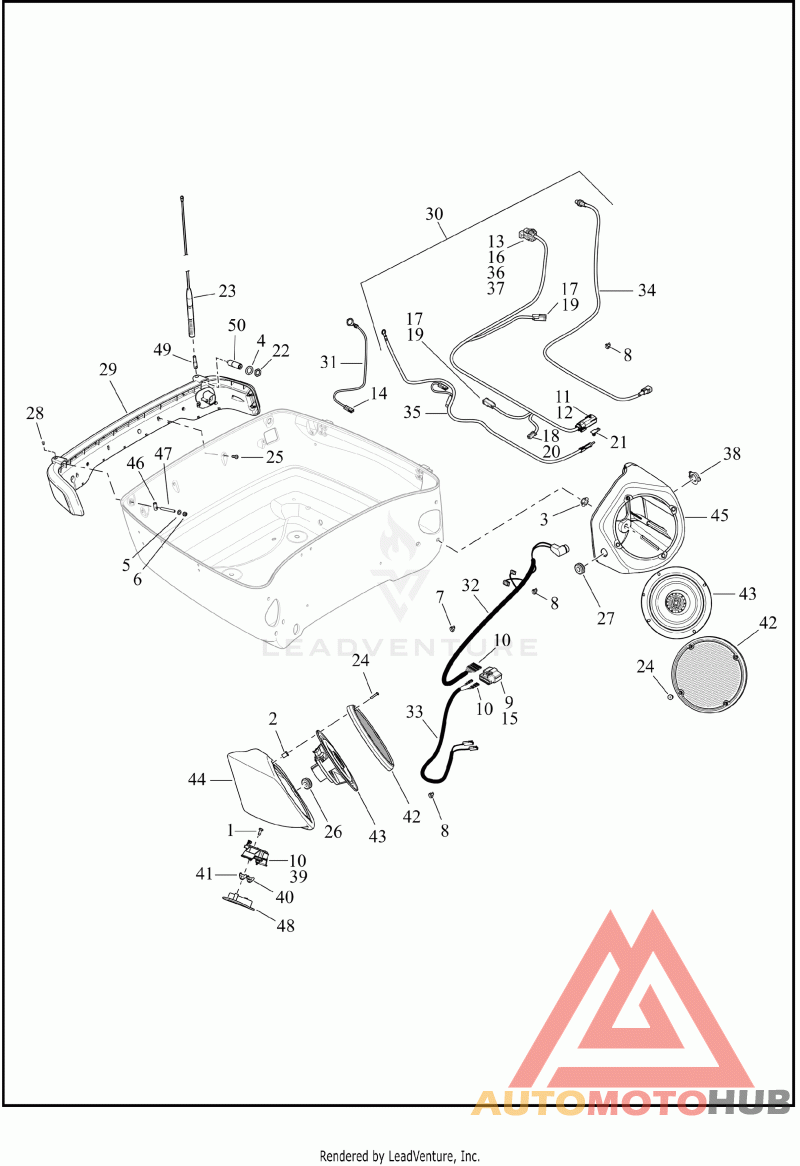

LAMPS AND SPEAKER HOUSINGS, ULTRA TOUR-PAK - FLHTCUTG

Деталь SCREW,TAP,PAN,TORX

Деталь WELLNUT

Деталь NUT,X

Шайба

Шайба

Деталь NUT,KEPS,HEX/METRIC | with lockwasher

Деталь STRAP,TIE,X

Деталь STRAP,TIE,CABLE

Деталь HOUSING,16-WAY,SCKT/BLACK | 16-way socket (black)

Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG

Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG

Деталь HOUSING,6-WAY PIN/BLACK | six-way pin (black)

Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG

Деталь TERMINAL,.250F,INSULATED | socket, 1/4 in

Деталь SEAL PIN

Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)

Деталь HSG PIN 2 PLC | two-way pin

Деталь HOUSING,2-WAY,SCKT/WHITE | two-way (white)

Деталь TERMINAL,PIN,#16-20AWG | pin, 16-20 AWG

Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG

Деталь RETAINER,X-MAS TREE CLIP | anchored

Гайка

Деталь SCREW,PAN HD TORX(PO)

Деталь SCREW,PAN HD TORX,#8-16 X 9/16

Деталь GROMMET,RH SPEAKER POD(PO) | speaker (right)

Деталь GROMMET,LH SPEAKER POD | speaker (left)

Деталь PLUG,DOME

Деталь TAIL LITE,T-PAK,DOM | Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic)

Деталь TAILLIGHT,T-PAK,STOP | Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (HDI)

Деталь WIRE HARNESS,T-PAK | Tour-Pak, with 10065, 72169-07, 72188-07BK, 72213-94, 72610-08, 73102-96BK, 73152-96WE, 73190-96, 73191-96, 69200210, 69200211, 69200225 and 69200226

Деталь WIRE HARNESS,AM/FM GRND JUMPER | AM/FM ground jumper, with 72290-94

Деталь WIRE HARNESS, SPEAKER POD, LEFT | speaker, with 10065 and 72168-07 (left)

Деталь WIRE HARNESS, SPEAKER POD, RIGHT | speaker, with 10065, 72168-07 and 71400005 (right)

Деталь CABLE EXTENSION,AM/FM ANTENNA(PO) | AM/FM antenna (except China)

Деталь CABLE EXTENSION,CB ANTENNA | CB antenna

Деталь CONNECTOR, HOUSING, 5-WAY SOCKET | five-way (black)

Деталь LOCK,SECONDARY,5-WAY(PO) | five-way (black)

Деталь WEATHER CAP ASY,DIN(PO)

Деталь SWITCH ASY,RR CONTROLS(PO) | rear speaker, with 72168-07, 71400006 and 71400007

Деталь KNOB, PTT/VOL+/VOL- | push to talk (ptt) vol-/vol+ rear control switch

Деталь KNOB,MODE SELECT,TUNEUP/TUNE DWN(PO) | mode select up/down rear control switch

Деталь SPEAKER GRILL(PO) | rear speaker

Деталь SPEAKER,AUD SYS,5.25 DIAMETER | 5.25 in

Деталь ENCLOSURE,RH-RR SPEAKER | right rear (black)

Деталь SPEAKER ENCLOSURE,LH-RR | left rear (black)

Деталь STUD,FEMALE,ANTENNA(PO) | antenna

Деталь SCREW SET,M5-.8,40MM,ANTENNA(PO) | antenna, M5 X 43 mm

Деталь BEZEL,SPEAKER SWITCH | speaker switch

Деталь STUD,ANTENNA(PO) | antenna

Деталь PLUG ASY,ANTENNA(PO) | antenna
