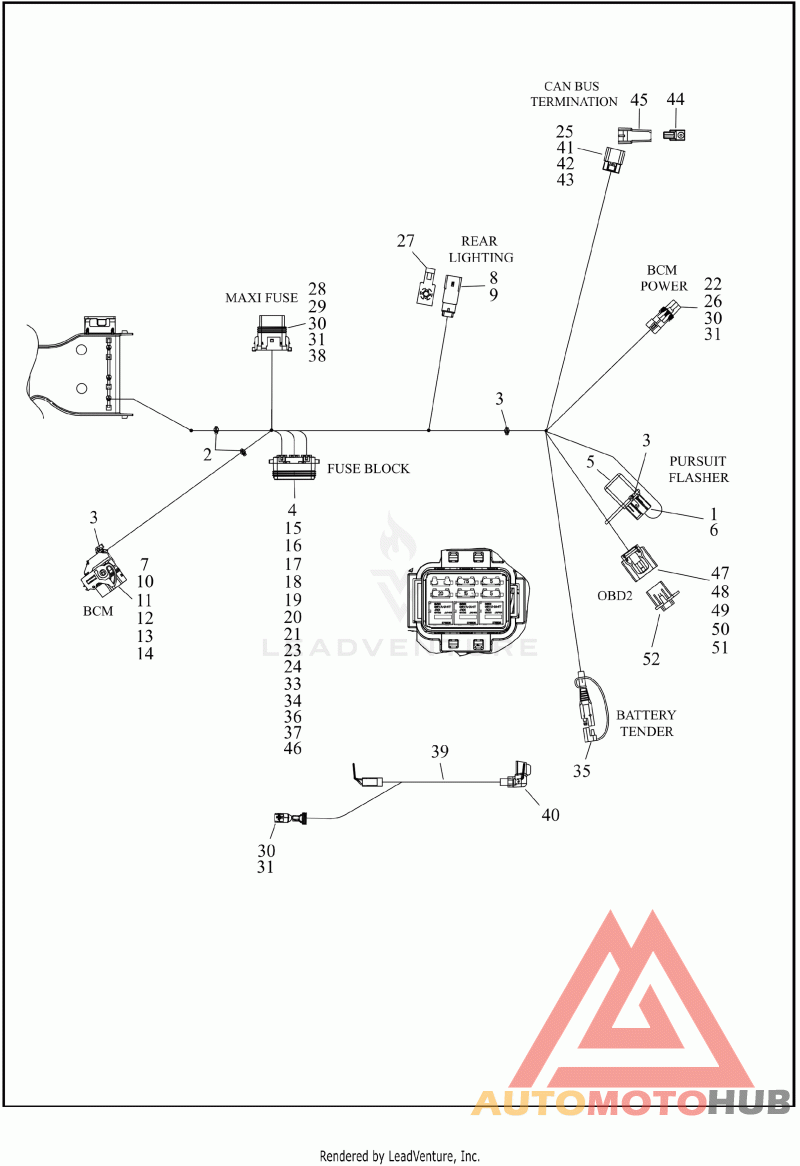

WIRING HARNESS, MAIN, ABS - FLHP (8 OF 9)

Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLHP

Деталь TERMINAL .25 FASTON 18-14GA | socket, 14-18 AWG

Деталь STRAP,TIE,X

Деталь STRAP,TIE,CABLE

Деталь RELAY,ULTRA-MICRO,280,SPST

Деталь RELAY,FLASHER

Деталь HOUSING,5-WAY/FEMALE | five-way socket (black)

Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)

Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG

Деталь HOUSING,6-WAY PIN/BLACK | six-way pin (black)

Деталь WIRE HARN SUB-CMPNT,COVER | wire

Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG, terminal location A2, A4, B2, C3, C4, D2, D3, E2, E4, F3, F4, G2, G3, G4, H2, H4, J2, J3, J4, K2, K3, K4

Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG, terminal location L2, M3

Деталь SEAL PIN,0.6MM,PLUG | (white) 0.6 mm

Деталь FUSE TERM | socket, 14-16 AWG, terminal location 12, 13, 17, 20

Деталь CABLE SEAL | 14-18 AWG (green) terminal location 12, 13, 17, 20

Деталь CAVITY PLUG | (green)

Деталь TERMINAL, FEMALE, #12-12 AWG | socket, 12-14 AWG, terminal location 1, 9, 11

Деталь FUSE 15 AMP BLUE | 15 A (blue)

Деталь FUSE,5 AMP,MINI-BLADE,LT TAN | 5 A (tan)

Деталь FUSE,MINI TYPE,20AMP/YELLOW | 20 A (yellow)

Деталь HOUSING,ONE-WAY | one-way socket (black)

Деталь TERMINAL,SCKT,#18-20AWG | socket, 18-20 AWG, terminal location 2, 3, 4, 7, 8, 10, 14, 15, 16, 18, 19, 21, 22, 23, 24

Деталь SEAL CABLE #12-14 AWG | 12-14 AWG (gray) terminal location 1, 9, 11

Деталь WIRE SEAL,#20-22 AWG,GREEN | 20-22 AWG (green)

Деталь SECONDARY LOCK | one-way socket

Деталь RETAINER,X-MAS TREE CLIP | anchored
