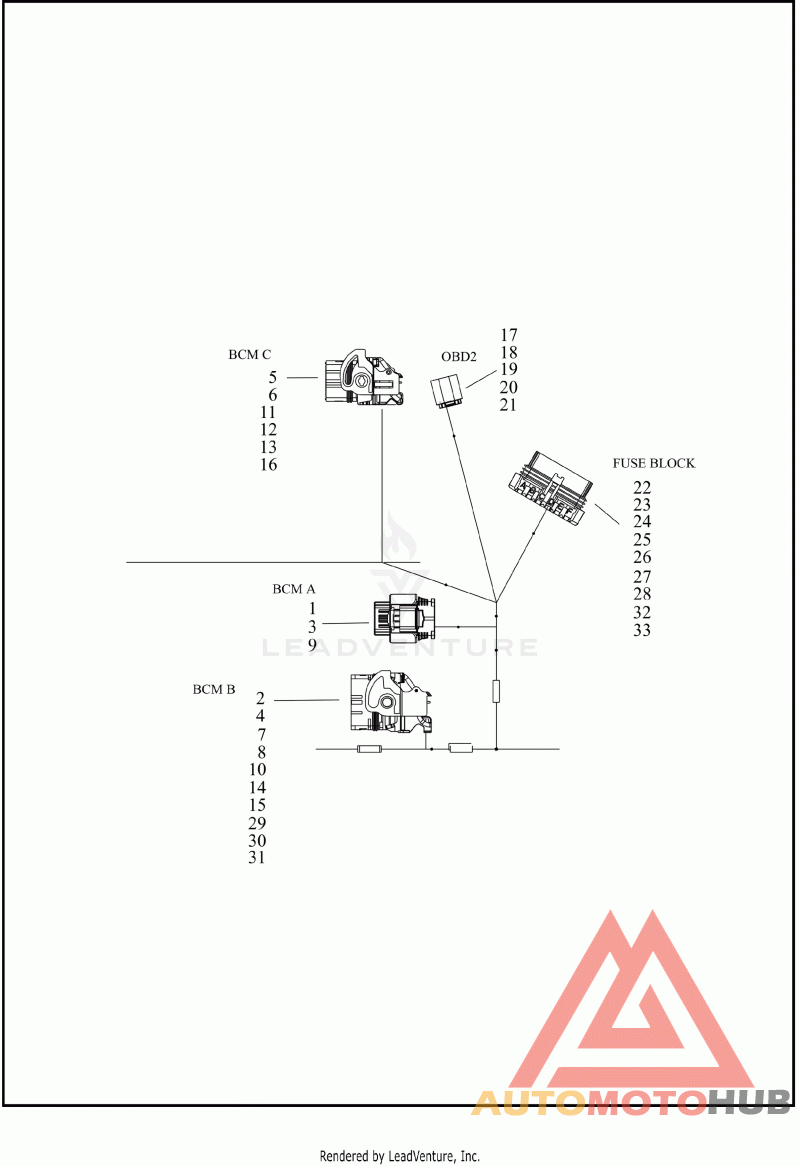

WIRING HARNESS, MAIN RA1250SE (3 OF 7)

Деталь HARNESS,WIRE,SPECIAL

Деталь CONNECTOR,HOUSING,2-WAY | two-way

Деталь CONNECTOR,HOUSING,28-WAY | 28-way

Деталь SEAL,CONN/TERM,4.1-5.0MM OD

Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG, terminal locations G1, G2, G3, G4, H3

Деталь SEAL PIN,0.6MM,PLUG | (white) 0.6 mm, terminal locations A4, B2, B3, B4, C1, E2, F2

Деталь TERMINAL,SOCKET,2.8MM,14-16 AWG | socket, 14-16 AWG, terminal location 1

Деталь TERMINAL,SOCKET,2.8MM,18-20 AWG | socket, 18-20 AWG, terminal locations 2, 3, 4, 5

Деталь TERMINAL,SOCKET,8.0MM,10 AWG | socket, 10 AWG

Деталь WIRE HARN SUB-CMPNT,COVER | wire

Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG, terminal locations A1, A2, A3, B1, C2, C3, C4, D1, D2, D3, D4, E1, E3, E4, F1, F3, F4

Деталь CONNECTOR,HOUSING,32-WAY | connector, 32-way

Деталь WIRE HARN SUB-CMPNT,CONNECTOR COVER | connector wire harness

Деталь SEAL,CONN/TERM,2.1-2.8MM OD | 2.1 mm-2.8 mm (green) terminal location 1

Деталь SEAL,CONN/TERM,SOCKET,1.4-2.15MM OD | 1.4 mm-2.15 mm (green) terminal locations 2, 3, 4, 5

Деталь SEAL PIN,1.5MM,PLUG(PO) | plug 1.5 mm, terminal locations H1, H2, H4

Деталь CONNECTOR,CAP | connector

Деталь CONNECTOR,HOUSING,6-WAY,RED | eight-way (red)

Деталь TERMINAL,FEMALE, 0.3-0.5 SQ MM | socket, terminal locations 2, 3, 4, 5

Деталь SEAL,CONN/TERM,PLUG | plug, terminal location 1, 6

Деталь SEAL,CONN/TERM,0.3-0.5 | 0.3 mm-0.5 mm, terminal locations 2, 3, 4, 5

Деталь BLOCK,FUSE/RLY,COVER

Деталь WIRE SEAL,#18-20AWG | 18-20 AWG (purple), terminal locations A, B, C, D

Деталь FUSE TERM | socket, 14-16 AWG, terminal locations E, F

Деталь TERMINAL,SCKT,#18-20AWG | socket, 18-20 AWG, terminal locations A, B, C, D

Деталь FUSE,7.5A MINI,BROWN | 7.5A

Деталь FUSE,10AMP/MINI-TYPE | 10A

Деталь FUSE 15 AMP BLUE | 15A

Деталь ELEC MISC CMPNT,FUSE HOLDER

Деталь BLOCK,FUSE/RLY,LOCK,SECONDARY | secondary lock, relay
