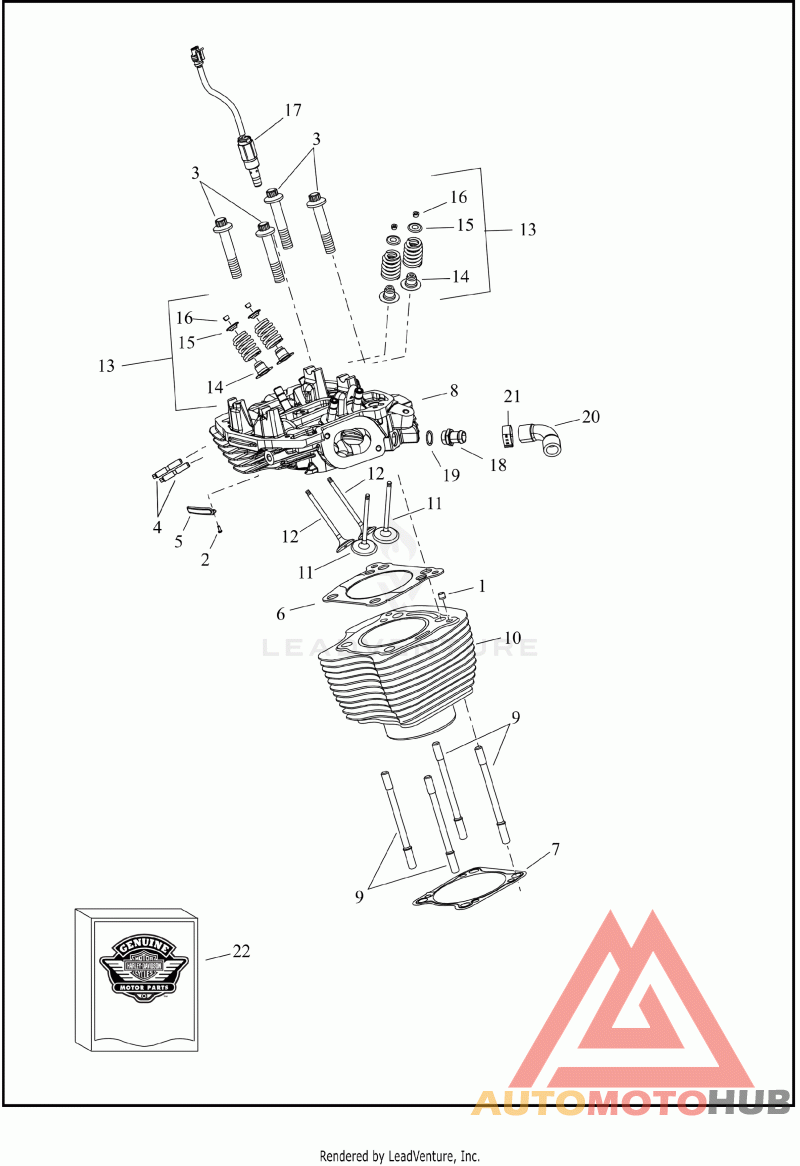

CYLINDERS, HEADS AND VALVES

Деталь PIN,DOWEL

Деталь SCREW,SELF-TAP/TAPTITE TORX

Деталь SCREW,X | (dull silver)

Деталь STUD,EXHAUST | exhaust port

Деталь MEDALLION,ASSY,CYL HEAD,SE,STAGE IV | stage IV (front)

Деталь MEDALLION,ASSY,CYL HEAD,SE 131 | 131 (rear)

Деталь GASKET,CYL HD,4.310 BORE,PC | cylinder head

Деталь GASKET,CYL HD,X | cylinder base

Деталь CYL HEAD,ASSY,LD4,RR,BLK,ENGINE,131 | Screamin Eagle® rear, with 2, 4, 5, 11, 12, 13, 14, 15, 16, 17, 18 and 65324-83B (Center-Cooled) (black)

Деталь CYL HEAD,ASSY,LD4,FR,WTR,BLK,ENGINE | Screamin Eagle® front, with 2, 4, 5, 11, 12, 13, 14, 15, 16, 17, 18 and 65324-83B (Center-Cooled) (black)

Деталь STUD,CYL,X | cylinder

Деталь CYLINDER,ASSY,4.310,FR,BLK | front, with 16589-99A (black)

Деталь CYLINDER,ASSY,4.310,RR,BLK | rear, with 16589-99A (black)

Деталь VALVE,INTK,SE42MM

Деталь VALVE,EXH,SE34MM

Деталь KIT,VALVE CMPNT,SPRING,PERFORMANCE | complete, includes (8) valve springs, (8) 18100044, (8) 18100045, (16) 18100060

Деталь SEAL,VALVE,X | valve

Деталь TOP COLLAR,VALVE SPRING | valve spring

Деталь COLLAR,VALVE,X | valve

Деталь PT CAMDR/VT MISC CMPNT,ACR VALVE | auto compression release (ACR)

Деталь PT LUBT/CLG MISC CMPNT,HEAD FITTING ASSY | includes o-ring

Деталь HOSE,RDTR,REAR HEAD, OUTLET | head to head

Деталь CLAMP,HOSE,5/8(PO)

Деталь KIT,CVR/SLG,TOP END,117 | top end (see NOTE)

Деталь KIT,CVR/SLG,ENGINE OVERHAUL,117 | engine overhaul (see NOTE)
