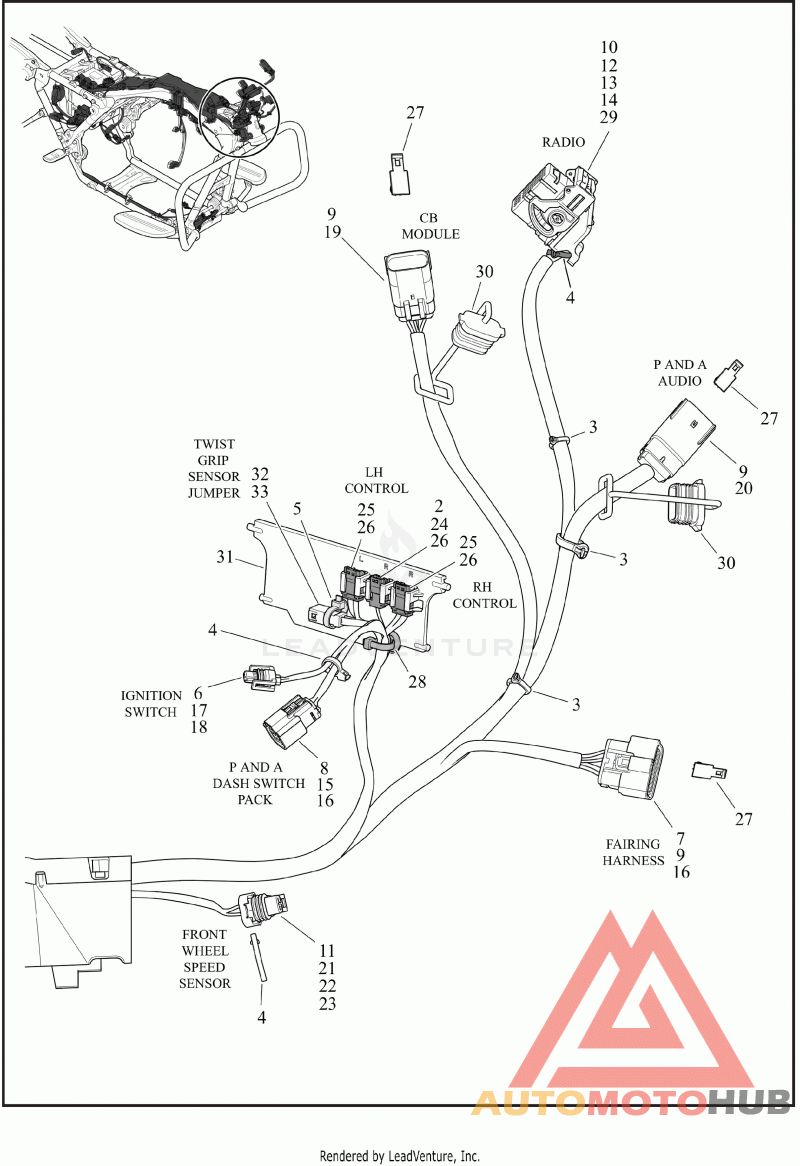

WIRING HARNESS, MAIN, ABS - FLTRK (2 OF 10)

Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLTRK

Деталь TERMINAL,X

Деталь STRAP,TIE,X

Деталь STRAP,TIE,CABLE

Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored

Деталь HOUSING, 2-WAY FEMALE | 2-way socket (gray)

Деталь HOUSING,16-WAY,PIN/BLACK | 16-way pin (black)

Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG

Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG

Деталь WIRE HARN SUB-CMPNT,COVER | wire dress

Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG

Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG, terminal location A1, A2, A3, A4, B1, B2, C1, C2, C3, D1, D2, D3, E1, E2, E3, F1, F2, H1, H2, H3, J1, J2, J3, K1, K2, K3, K4

Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG, terminal location L1, L2, L3, L4, M1, M2, M3, M4

Деталь SEAL PIN,0.6MM,PLUG

Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black)

Деталь SEAL PIN

Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG

Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)

Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black)

Деталь HOUSING,12-WAY,PIN/GREY | 12-way pin (gray)

Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)

Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)

Деталь SECONDARY LOCK,2-WAY SCKT,CONDUIT | two-way socket

Деталь HOUSING,2-WAY PIN | two-way pin (black)

Деталь HOUSING,4-WAY PIN | four-way pin (black)

Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG

Деталь RETAINER,X-MAS TREE CLIP | anchored

Деталь CABLE STRAP,XMAS,2-PC(PO)

Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)

Деталь PLUG,WEATHER,12-WAY PIN(PO) | 12-way pin

Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black)

Деталь SEAL,CONN/TERM,X | pin, 22 AWG
