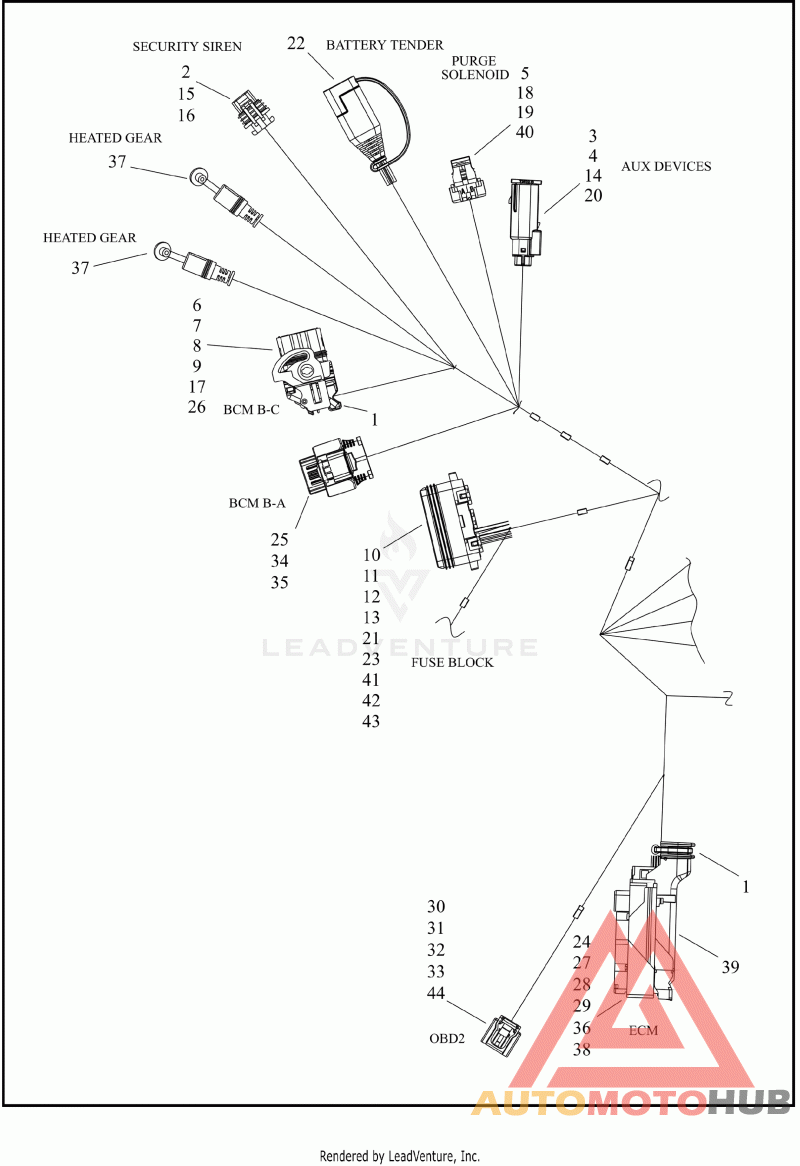

WIRING HARNESS, MAIN - FLHX (4 OF 11)

Деталь HARNESS,WIRE,MAIN

Деталь STRAP,TIE,CABLE

Деталь HOUSING,3-WAY,FEM,SCKT,VSS | three-way socket (black)

Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG

Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin

Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG

Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG

Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG

Деталь SEAL PIN,1.5MM,PLUG(PO)

Деталь SEAL PIN,0.6MM,PLUG

Деталь FUSE TERM | socket, 14-16 AWG, terminal location 12, 20, 21, 22, 23, 24

Деталь CAVITY PLUG | cavity, terminal location 17, 18

Деталь TERMINAL, FEMALE, #12-12 AWG | socket, 12-14 AWG, terminal location 1, 3, 4, 5, 7, 8, 9, 11

Деталь TERMINAL,SCKT,#18-20AWG | socket, 18-20 AWG, terminal location 2, 6, 10, 13, 14, 15, 16, 19

Деталь SEAL PIN | 20 A (yellow)

Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG

Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)

Деталь WIRE HARN SUB-CMPNT,CONNECTOR COVER | connector

Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket (black)

Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)

Деталь PLUG,WEATHER,4-WAY PIN | weather, four-way pin

Деталь CONNECTOR,BATTERY TNDR OVER-MOLD-PO | battery tender, over-mold

Деталь SECONDARY LOCK,FUSEBLOCK | 24-way socket

Деталь TERMINAL,SOCKET,2.8MM,0.75-1.0MM WIRE | socket, terminal location 1, 2, 3, 4, 5

Деталь CONNECTOR,HOUSING,2-WAY | two-way

Деталь CONNECTOR,HOUSING,32-WAY | 32-way

Деталь CONNECTOR,CAVITY PLUG,0.64MM CAVITY | pin plug, terminal location 9, 10, 12, 13, 15, 18, 19, 22, 33, 35, 40, 50, 51, 54, 56, 57, 58, 59, 60, 61, 62, 63, 64, 68, 69, 73, 75, 76, 79, 81

Деталь SEAL,CONN/TERM,2.0-2.7MM OD | 2.0-2.7 mm (red/brown) terminal location 1, 2, 3, 4, 5

Деталь CONNECTOR,SECONDARY LOCK

Деталь CONNECTOR,HOUSING,6-WAY,RED | six-way socket (red)

Деталь SEAL,CONN/TERM,1.6-1.7 MM | 1.6-1.7 mm (red/violet)

Деталь SEAL,CONN/TERM,PLUG | (light gray

Деталь CONNECTOR,TERMINAL RETAINER, OBD2 | terminal

Деталь TERMINAL,SOCKET,8.0MM,10 AWG | socket

Деталь SEAL,CONN/TERM,4.1-5.0MM OD | 4.1-5.0 mm

Деталь CONNECTOR,HOUSING,81-WAY,WIRE DRESS LEFT | 81-way socket

Деталь HOUSING | heated gear

Деталь TERMINAL,SKT,0.64MM,0.35-0.5MM WIRE,SIL | socket, terminal location 6, 7, 8, 11, 14, 16, 17, 20, 21, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 34, 36, 37, 38, 39, 41, 42, 43, 44, 45, 46, 47, 48, 49, 52,

Деталь CONNECTOR,COVER,81-WAY HSG,DRESS | 81-way housing

Деталь HOUSING, 2-WAY SOCKET, RED | two-way socket (red)

Деталь SEAL CABLE #12-14 AWG | 12-14 AWG (gray) terminal location 1, 3, 4, 5, 7, 8, 9, 11

Деталь WIRE SEAL,#18-20AWG | 18-20 AWG (purple) terminal location 2, 6, 10, 13, 14, 15, 16, 19

Деталь CABLE SEAL | 14-18 AWG (green) terminal location 12, 20, 21, 22, 23, 24

Деталь TERMINAL,FEMALE, 0.3 SQ MM | socket, 22AWG
