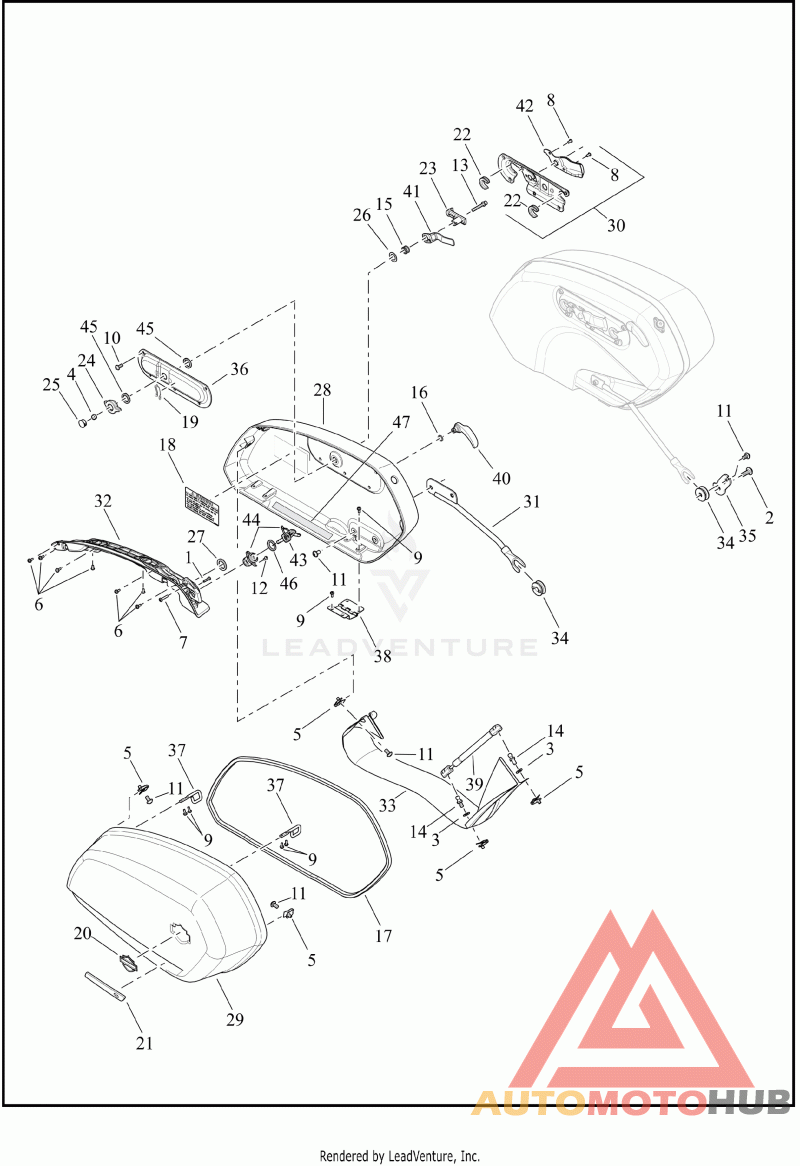

SADDLEBAGS - FLSB, FXLRST, FXRST

Деталь SCREW,X

Деталь SCREW,SEMS,BTN-TORX OR 6 LOBES HD/LOCK

Деталь WASHER,PLAIN,TYPE-A

Деталь NUT,HEX LOCK

Деталь NUT,CLIP 5/16

Деталь TORX SEMS,8-32X1/2,PLAS 48-2 T15

Деталь TORX PAN,8-32X1,TAP-II T20

Деталь SCREW,BTN HD TORX,W/LOCKPATCH

Деталь 8-32 X 1/2 TORX PAN SEMS T15

Деталь SCREW,BTN HEAD,SEMS,1/4-20

Деталь SCREW,BUTTON HEAD

Деталь SCREW,TORX SEMS,NO.8,PLASTITE

Деталь SCREW,SPEC TORX SCKT HD CAP,SEMS

Деталь STUD,BALL,5/16 | ball

Деталь SPRING,COIL,X

Деталь O-RING,500,QUAD SEAL

Деталь GROMMET,S-BAG SEAL

Деталь WARNING LABEL,SBAG CAPACITY | warning, saddlebag

Деталь LABEL,GENL,SBAG LATCH | saddlebag latch (left)

Деталь LABEL,GENL,SBAG LATCH | saddlebag latch (right)

Деталь MEDALLION,BAR AND SHIELD | saddlebag

Деталь REFLECTOR,X | (amber) (left) (Asia-Pacific, Australia, AU2, ASEAN, Brazil, China, England, EN2, HDI, HD4, Japan)

Деталь REFLECTOR,X | (amber) (right) (Asia-Pacific, Australia, AU2, ASEAN, Brazil, China, England, EN2, HDI, HD4, Japan)

Деталь S-BAG BTM,X | saddlebag mount

Деталь S-BAG BTM,X | latching

Деталь S-BAG BTM,X | latch

Деталь LATCH CAP | latch

Деталь SPRING SPACER,LATCHING ARM | spring, latching arm

Деталь SEAL,HANDLE SUPPORT,SBAG | handle support

Деталь S-BAG BTM,RH | (right) (unpainted)

Деталь S-BAG BTM,LH | (left) (unpainted)

Деталь COVER,S-BAG,RH | (right) (unpainted)

Деталь COVER,S-BAG,LH | (left) (unpainted)

Деталь KIT,S-BAG, MTG,RH | with 10200070, 90200480 and 90201762 (right)

Деталь PL/BRKT,S-BAG MTG,LH | with 10200070, 90200480 and 90201761 (left)

Деталь PL/BRKT,S-BAG MTG,LOWER,RH | saddlebag mounting, lower (right)

Деталь PL/BRKT,S-BAG MTG,LOWER,LH | saddlebag mounting, lower (left)

Деталь LATCH,S-BAG,ASSY,RH | saddlebag, with 2968, 10200063 and 90200901 (right)

Деталь LATCH,S-BAG,ASSY,LH | saddlebag, with 2968, 10200063 and 90200901 (left)

Деталь S-BAG INR,CARGO NET | saddlebag, inner (right)

Деталь S-BAG INR,TETHER,LH | saddlebag, inner (left)

Деталь PL/BRKT,S-BAG MTG,DOCKING,LWR | mounting bracket

Деталь PL/BRKT,S-BAG MTG,DOCKING | saddlebag mounting, lower

Деталь PL/BRKT,S-BAG MTG,ASSY,INR,RH | inner, with 14000267 and 90200492 (right)

Деталь PL/BRKT,S-BAG MTG,ASSY,INR,LH | inner, with 14000234 and 90200492 (left)

Деталь S-BAG,STRIKE | saddlebag

Деталь S-BAG,HINGE,ASSY | saddlebag

Деталь S-BAG,DAMPER | saddlebag

Деталь LATCH,S-BAG,HANDLE,ASSY,RH | saddlebag latch, with 11900127 (right)

Деталь LATCH,S-BAG,HANDLE,ASSY,LH | saddlebag latch, with 11900127 (left)

Деталь S-BAG,INDICATOR,LH | saddlebag (left)

Деталь PL/BRKT,S-BAG MTG,INDICATOR,CVR,LH | indicator (left)

Деталь PL/BRKT,S-BAG MTG,INDICATOR,CVR,RH | indicator (right)

Деталь KEY,SET,SIDE-CUT,BLADE | (set of 2) (specify key number)

Деталь KIT,LOCKSET,ONE BAG LOCK,W/KEYSET | saddlebag, with 90300129 (specify key number)

Деталь KIT,LOCKSET,TWO BAG LOCKS,W/KEYSET | saddlebag (set of 2) (specify key number)

Деталь S-BAG BTM,X

Деталь MECH SCTY,GASKET,FACE,S-BAG LOCK

Деталь TAPE,MTG,VELCRO,HOOK | tether mounting
