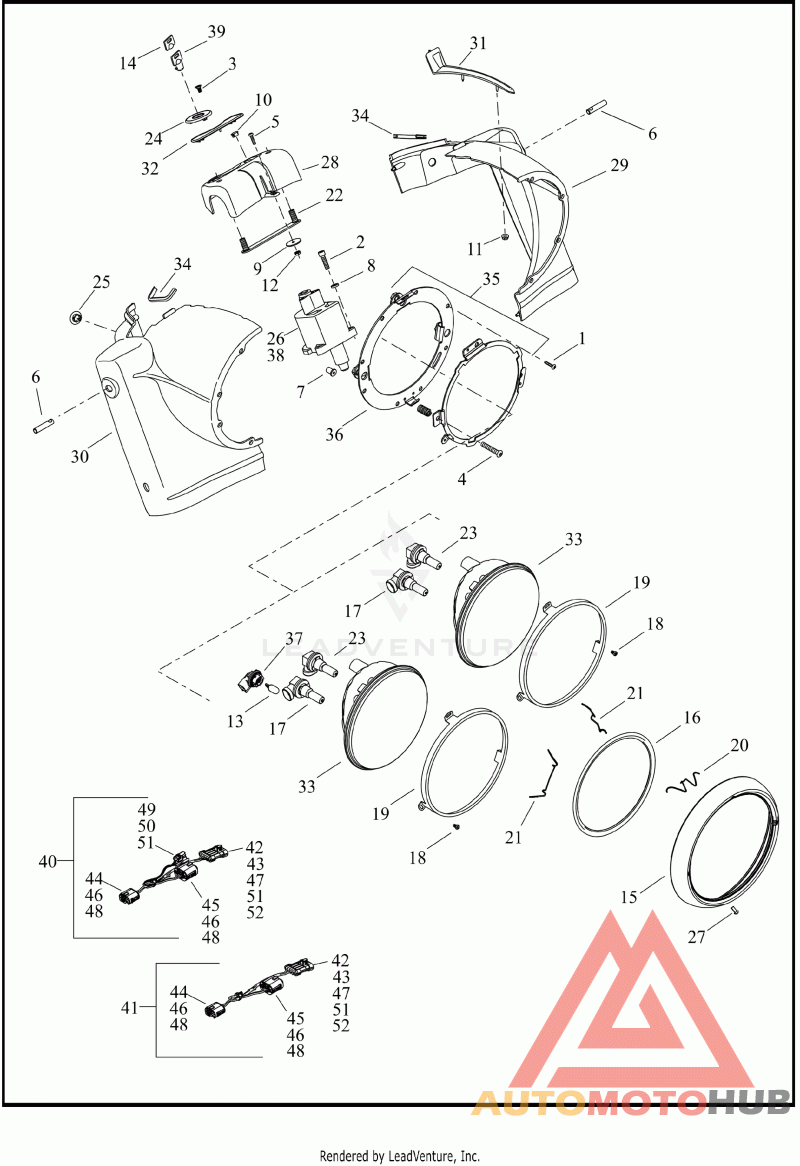

NACELLE AND HEADLAMP - FLHP

Деталь SCREW TRUSS HD-CROSS REC DRV

Деталь SCREW,HEX SOCK HD

Деталь SCREW FLAT HD MACHINE

Деталь SCREW,BTN,HEX SCKT

Деталь SCREW,MACH,PAN,PHILLIPS

Деталь STUD,DOUBLE END,TYPE 2

Деталь WELLNUT

Деталь WASHER,FLAT

Деталь HOLE PLUG,BLACK

Деталь FLANGE NUT,#6-32

Деталь NUT,KEPS,#6-32

Деталь BULB,WEDGE #W5W | position lamp (HDI)

Деталь COVER,KEY,HEAD-SET | key-head (set of 2)

Деталь DOOR,HEADLAMP/CHRM | headlamp

Деталь GASKET,HEADLAMP DOOR | headlamp door

Деталь BULB H-9 | high beam halogen

Деталь SCREW,HDLAMP RET RING

Деталь HEADLIGHT,X

Деталь SPRING, TOP | trim ring, headlamp, top

Деталь SPRING,BOTTOM,HDLAMP DOOR | trim ring, headlamp, bottom

Деталь STUD PLATE

Деталь BULB,HALOGEN | low beam halogen

Деталь TRIM ASY,FORK LOCK | fork lock

Деталь HOLE PLUG,BLACK | (black)

Деталь LOCK,FORK,HSG | (specify key number)

Деталь SCREW,PHILLIPS,RND HD,#8-32 X .38

Деталь TUBE,H-BAR,CLAMP COVER,BLK | handlebar (black)

Деталь COVER,RACE HDLT,NACELLE,LH,BLK | (left) (black)

Деталь COVER,RACE HDLT,NACELLE,RH,BLK | (right) (black)

Деталь TRIM,NACELLE,CHRM | nacelle (chrome)

Деталь TRIM INSERT,HBAR COVER | handlebar cover

Деталь HEADLAMP,DUAL HAL,DOM | with 67717-01 and 68881-01(Domestic)

Деталь HEADLAMP,DUAL HAL,RH-DIP,HDI | with 54346-97, 67717-01, 68881-01 and 68000038 (HDI)

Деталь TRIM,HDLAMP HSG

Деталь MOUNTING RING ASY | with 3088 and 67700205

Деталь MOUNTING RING | headlamp

Деталь CONNECTOR, POSITION BULB, 90 DEGREES | position bulb (HDI)

Деталь SWITCH,IGN,CONSOLE,LOCK SET | complete, with keys, ignition switch, fork lock and saddle bag lock

Деталь KEY W/ 61081-92 (SET OF 2) (SPECIFY KEY CODE - FOR KEY CODES 5000 & UP) (ENGLAND, HDI & ASIA-PACIFIC - LATE MODEL YEAR) (SEE NOTE) | with 61081-92 (set of 2) (specify key number)

Деталь WIRE HARNESS,DUAL HALOGEN HDLAMP,HDI | dual halogen headlamp, with 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52 and 53 (HDI)

Деталь WIRE HARNESS,DUAL HALOGEN HDLAMP | dual halogen headlamp, with 42, 43, 44, 45, 46, 47, 48, 52 and 53 (Domestic)

Деталь RING,RETG,X | connector

Деталь CABLE SEAL | 14-16 AWG (dark red)

Деталь SOCKET HOUSING, 2-WAY, BLACK | two-way socket (black)

Деталь SOCKET HOUSING, 2-WAY, GRAY | two-way socket (gray)

Деталь SOCKET TERMINAL 18-20 AWG | socket, 18-20 AWG

Деталь TERMINAL,PIN,16-20AWG,150 METRI-PACK | pin, 16-20 AWG

Деталь SEAL WIRE WHITE #14-16AWG | 14-16 AWG (white)

Деталь CONNECTOR, 2-WAY SOCKET | two-way socket (black) (HDI)

Деталь TERMINAL,SOCKET,#16-18AWG(PO) | socket, 18-20 AWG (HDI)

Деталь WIRE SEAL,#16AWG | 16 AWG (green) (HDI)

Деталь CONNECTOR,4-WAY PIN(PO) | four-way pin

Деталь LOCK, SECONDARY, 4WAY | four-way socket
