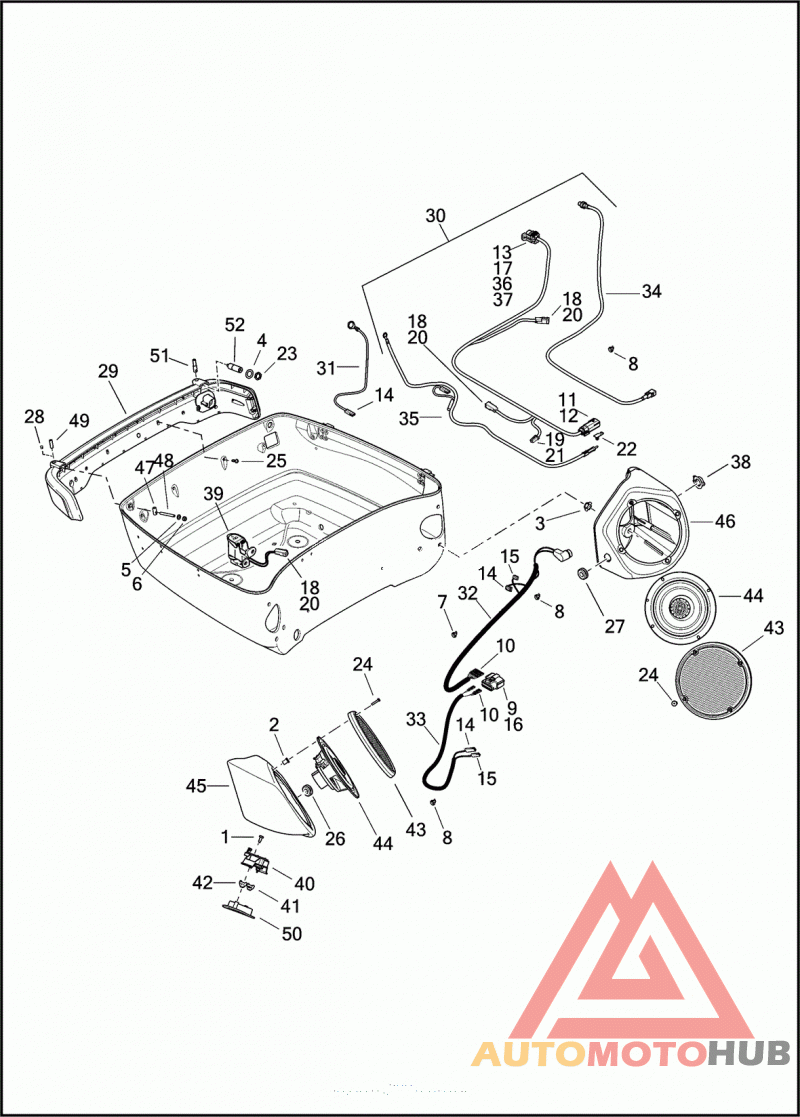

LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK

SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING

WELL NUT

CRIMP NUT

WASHER 1/2 X 13/16 X 1/32

WASHER 1/4 X 7/16 X 1/32

NUT W/ LOCKWASHER

CABLE STRAP

CABLE STRAP

SOCKET HOUSING 12-WAY (BLACK)

SOCKET TERMINAL 18-20 AWG

TERMINAL PIN 16-20 AWG

PIN HOUSING 6-WAY (BLACK)

TERMINAL SOCKET, FEMALE, 16-20 AWG

TERMINAL FEMALE 1/4 IN.

TERMINAL FEMALE 16-20 GAUGE

SEAL PIN

SEAL 18-20 AWG (WHITE)

PIN HOUSING 2-PLACE

SOCKET HOUSING 2-PLACE (WHITE)

TERMINAL PIN, 16-20 AWG

TERMINAL SOCKET, 16-20 GAUGE

RETAINER XMAS TREE CLIP

Гайка

SCREW NO. 6-32 X 3/4 TORX PAN HD. (BLACK ZINC)

SCREW NO. 8-16 X 9/16 TORX PAN HD. (ZINC)

GROMMET SPEAKER, RIGHT

GROMMET SPEAKER, LEFT

PLUG (W/O CB RADIO) (JAPAN)

LAMP TOUR-PAK, W/ 76000164, 76000165, 76000186 & 76000208 (DOMESTIC)

LAMP TOUR-PAK, W/ 76000164, 76000165, 76000186 & 76000208 (HDI)

LAMP TOUR-PAK, W/ 76000164, 76000165, 76000186 & 76000208 (JAPAN)

WIRING HARNESS TOUR-PAK, W/ 10065, 72169-07, 72188-07BK, 72213-94, 72610-08, 73102-96BK, 73152-96WE, 73190-96, 73191-96, 69200210, 69200211, 69200225 & 69200226

WIRING HARNESS AM/FM GROUND JUMPER, W/ 72290-94

WIRING HARNESS SPEAKER, LEFT, W/ 10065, 72168-07, 72290-94 & 72294-94

WIRING HARNESS SPEAKER, RIGHT, W/ 10065, 72168-07, 72290-94, 72294-94 & 71400005

CABLE EXTENSION AM/FM ANTENNA

CABLE EXTENSION CB ANTENNA

SOCKET CONNECTOR 5-WAY (BLACK)

SECONDARY LOCK 5-WAY (BLACK)

WEATHER CAP ASSEMBLY

KIT, AUXILIARY POWER OUTLET TOUR-PAK, W/ 73102-96BK & 73190-96

SWITCH ASSEMBLY REAR SPEAKER, W/ 71400006 & 71400007

KNOB PTT VOL-/VOL+ REAR CONTROL SWITCH

KNOB MODE SELECT UP/DOWN REAR CONTROL SWITCH

GRILLE REAR SPEAKER

SPEAKER 5.25 INCH

SPEAKER BOX ENCLOSURE RIGHT REAR

SPEAKER BOX ENCLOSURE LEFT REAR

STUD ANTENNA, FEMALE

SET SCREW ANTENNA, M5 X 43MM

BEZEL SPEAKER SWITCH

STUD ANTENNA

PLUG ASSEMBLY ANTENNA
