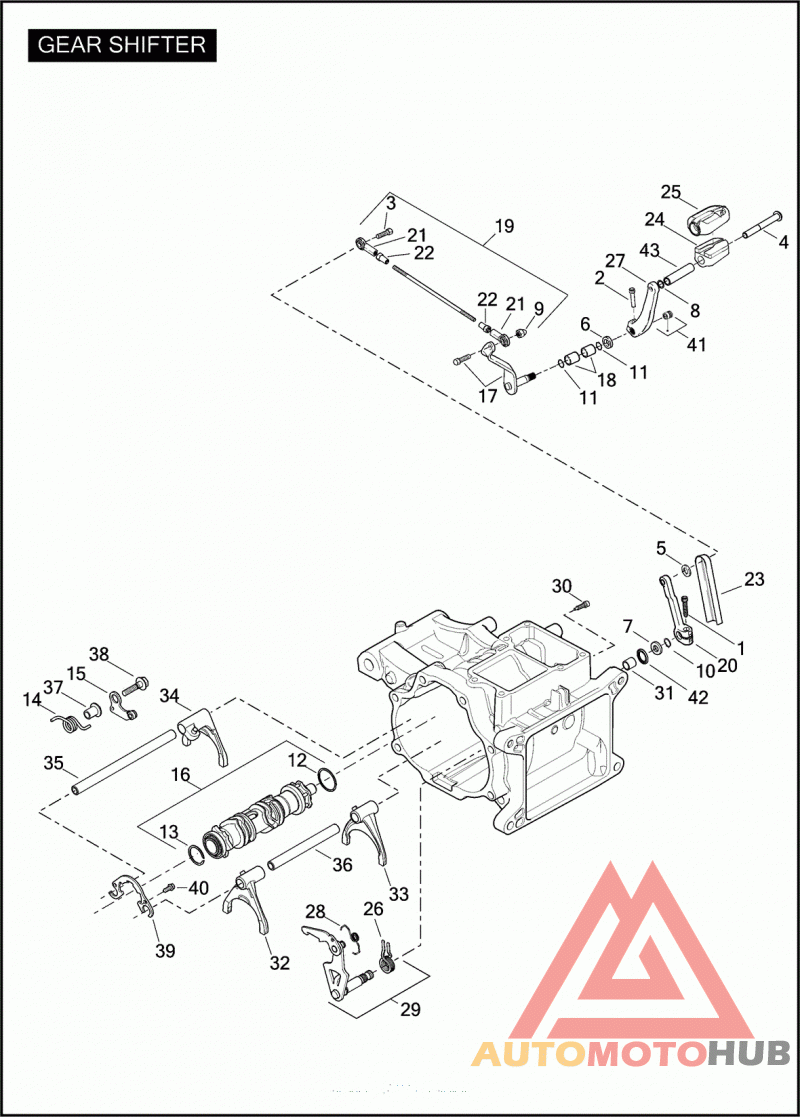

GEAR SHIFTER

SCREW 5/16-24 X 1 SOCKET HD. (GRADE 8)

SCREW 5/16-18 X 3/4 SOCKET HD. (GRADE 8)

SCREW 5/16-24 X 59/64 HEX HD.

SCREW 5/16-24 X 2-3/4 TORX BUTTON HD.

SPACER SHIFT COVER

WASHER 29/64 X 1-1/8 X 1/16

LOCKWASHER 5/16

ACORN NUT 0.312-24 (STAINLESS)

Стопорное кольцо

Уплотнительное кольцо

RING SHIFT CAM RETAINING

RING SHIFT CAM RETAINING

SPRING DETENT

DETENT ARM ASSEMBLY W/ 33389-07

CAM SHIFTER, ASSEMBLY, W/ 11389, 11575 & BEARING

SHIFTER LEVER

BEARING SLEEVE

SHIFTER LINKAGE KIT W/ 4192, 5826, 7904 & 33890-99A

LEVER SHIFTER ROD

ROD END SHIFTER ROD

NUT ROD END

COVER SHIFTER ROD

TREAD SHIFTER PEG

COVER SHIFTER PEG

SPRING SHIFT LEVER CENTERING

KIT SHIFT LEVER

SPRING RATCHET LEVER

SHIFT MECHANISM W/ 34064-00C & 34987-06

CENTERING SCREW SHIFT LEVER

Гильца

FORK SHIFT 1 - 2

FORK SHIFT 3 - 4

FORK SHIFT 5 - 6

SHAFT 5 - 6 SHIFT FORK

SHAFT 1 - 2 & 3 - 4 SHIFT FORK

Гильца

SCREW 5/16-18 X 1-1/4 HEX FLANGE HD.

LOCK PLATE SHIFT CAM

GEAR PACK, FORKS & DRUM SUBASSEMBLY W/ 1, 2, 3, 4, 7, 8, 9, 11, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 7340, 35256-08A, SHIFTER CAM AND FORKS (GRANITE)

SCREW NO. 10-24 X 1/2 HEX HD. (GRADE 8)

COVER GEARSHIFTER SHAFT, W/ SETSCREW

Сальник

SPACER TUBE
