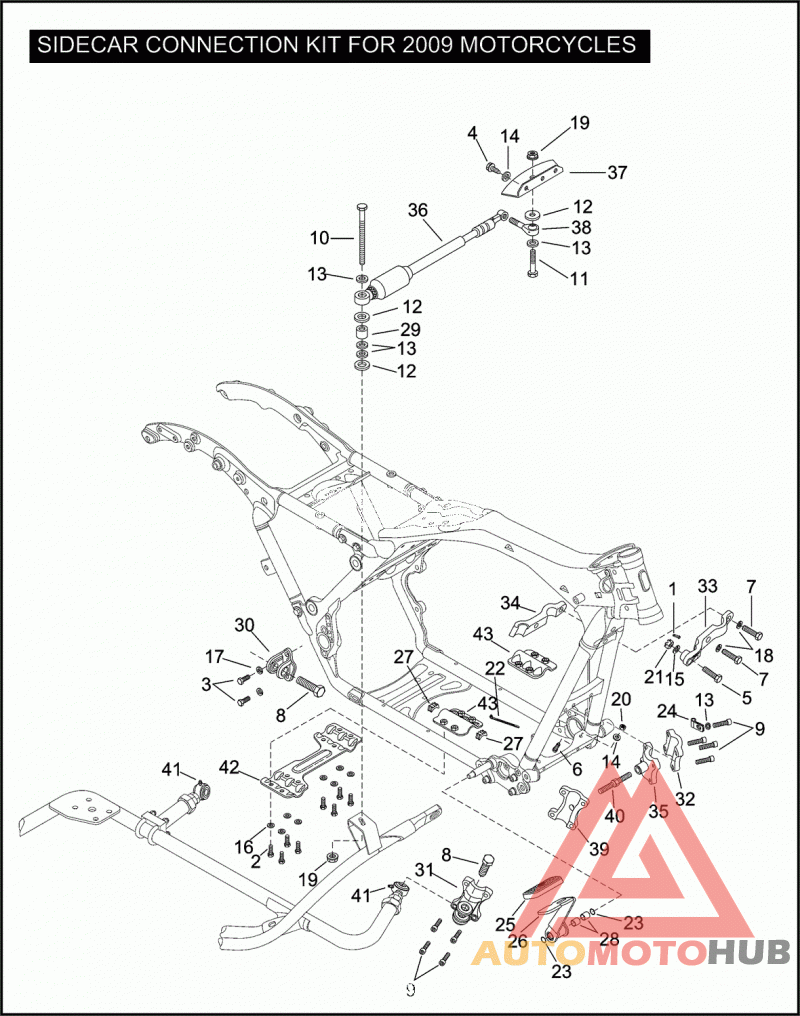

SIDECAR CONNECTION KIT FOR 2009 MOTORCYCLES

Деталь COTTER PIN | SG/SK/SL/SM/SN/SP/SV

Деталь SCREW 7/16-14 X 1, hex hd. (Grade 8) | SG/SK/SL/SM/SN/SP/SV

Деталь SCREW 1/4 X 5/8 self-tapping | SG/SK/SL/SM/SN/SP/SV

Деталь SCREW 1/2-13 X 1-3/4 hex hd. | SG/SK/SL/SM/SN/SP/SV

Деталь BOLT 1/4-20 X 1-1/4 hex hd. (Grade 5) | SG/SK/SL/SM/SN/SP/SV

Деталь BOLT 1/2-13 X 1-3/4 hex hd. (Grade 5) | SG/SK/SL/SM/SN/SP/SV

Деталь SCREW 3/4-10 X 2-1/4 hex hd. (Grade 8) | SG/SK/SL/SM/SN/SP/SV

Деталь SCREW 3/8-16 X 1-1/2 knurled hd. (Grade 8) | SG/SK/SL/SM/SN/SP/SV

Деталь SCREW 3/8-16 X 2.75 hex hd. (Grade 5) | SG/SK/SL/SM/SN/SP/SV

Деталь BOLT 3/8-16 X 1-1/2 hex hd. (Grade 5) | SG/SK/SL/SM/SN/SP/SV

Деталь WASHER 13/32 X 1-1/32 X 1/8 | SG/SK/SL/SM/SN/SP/SV

Деталь WASHER 3/8 X 13/16 X 1/16 | SG/SK/SL/SM/SN/SP/SV

Деталь WASHER 1/4 X 5/8 X 1/16 | SG/SK/SL/SM/SN/SP/SV

Деталь WASHER 17/32 X 1-1/2 X 9/64 | SG/SK/SL/SM/SN/SP/SV

Деталь WASHER 13/32 X 11/16 X 1/16 | SG/SK/SL/SM/SN/SP/SV

Деталь LOCKWASHER 7/16 | SG/SK/SL/SM/SN/SP/SV

Деталь LOCKWASHER 1/2 | SG/SK/SL/SM/SN/SP/SV

Деталь LOCKNUT 3/8-16 flange | SG/SK/SL/SM/SN/SP/SV

Деталь LOCKNUT 1/4-20 X 7/16 flange | SG/SK/SL/SM/SN/SP/SV

Деталь NUT 1/2-13 slotted | SG/SK/SL/SM/SN/SP/SV

Деталь CABLE STRAP | SG/SK/SL/SM/SN/SP/SV

Деталь O-RING | SG/SK/SL/SM/SN/SP/SV

Деталь CLAMP clutch cable retainer | SG/SK/SL/SM/SN/SP/SV

Деталь PAD brake pedal | SG/SK/SL/SM/SN/SP/SV

Деталь BRAKE PEDAL ASSEMBLY rear, w/ 57217-02 | SG/SK/SL/SM/SN/SP/SV

Деталь GUIDE triple brakeline | SG/SK/SL/SM/SN/SP/SV

Деталь BUSHING BRAKE LEVER | SG/SK/SL/SM/SN/SP/SV

Деталь SPACER mounting | SG/SK/SL/SM/SN/SP/SV

Деталь BRACKET rear connection | SG/SK/SL/SM/SN/SP/SV

Деталь MOUNTING BRACKET right hand | SG/SK/SL/SM/SN/SP/SV

Деталь MOUNTING BRACKET left hand | SG/SK/SL/SM/SN/SP/SV

Деталь CLAMP outer front sidecar brace | SG/SK/SL/SM/SN/SP/SV

Деталь CLAMP inner front sidecar brace | SG/SK/SL/SM/SN/SP/SV

Деталь MOUNT left hand lower front stabilizer | SG/SK/SL/SM/SN/SP/SV

Деталь STEERING DAMPER | SG/SK/SL/SM/SN/SP/SV

Деталь BRACKET steering damper | SG/SK/SL/SM/SN/SP/SV

Деталь ROD END BALL JOINT | SG/SK/SL/SM/SN/SP/SV

Деталь STABILIZER MOUNT right hand, lower, front | SG/SK/SL/SM/SN/SP/SV

Деталь STABILIZER ADJUSTER | SG/SK/SL/SM/SN/SP/SV

Деталь CONNECTION KIT sidecar | SG/SK/SL/SM/SN/SP/SV

Деталь GREASE FITTING | SG/SK/SL/SM/SN/SP/SV

Деталь BRACKET lower cross bar | SG/SK/SL/SM/SN/SP/SV

Деталь CAP ASSEMBLY lower cross bar bracket | SG/SK/SL/SM/SN/SP/SV

Деталь ELBOW used on sidecar-equipped 2009 motorcycles to relocate oil pressure switch or sender (not shown) | SG/SK/SL/SM/SN/SP/SV
