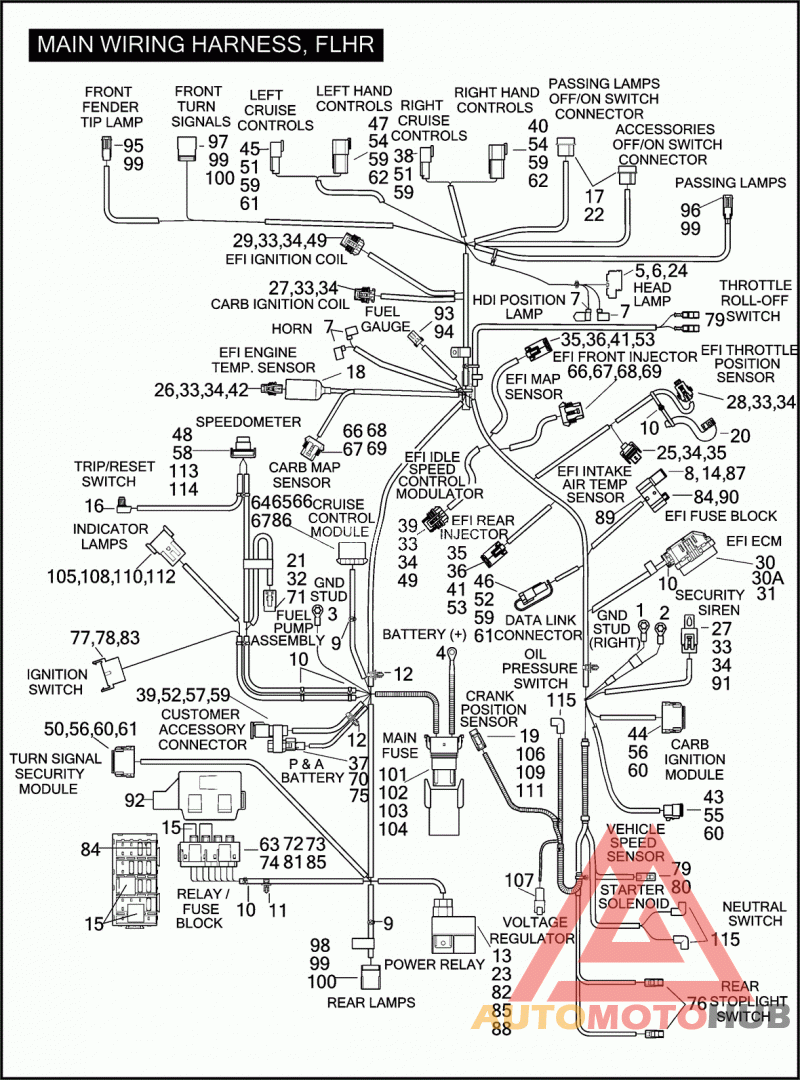

MAIN WIRING HARNESS, FLHR

MAIN WIRING HARNESS CARB

TERMINAL 1/4 IN. RING, #12 AWG

TERMINAL 1/4 IN., STUD

TERMINAL 1/4 IN. RING, #10-12 AWG

TERMINAL 1/4 IN. RING, #10-12 GAUGE

WIRE TERMINAL FEMALE SPADE, RIGHT

WIRE TERMINAL FEMALE SPADE, LEFT

TERMINAL INSULATED

TERMINAL 1/4 IN., FEMALE, #14-18 AWG

CABLE STRAP

CABLE STRAP

CABLE STRAP ROSEBUD MOUNT

CABLE STRAP TREE MOUNT

RELAY W/ DIODE

RELAY (BLACK)

RELAY

Выключатель

HOUSING 4-PIN

BOOT ENGINE TEMPERATURE SENSOR

BOOT 2-WAY (BLACK)

SOCKET TERMINAL 16-20 GAUGE

PIN SINGLE SOCKET

CONNECTOR SPADE TERMINALS

CONNECTOR SPADE TERMINAL, 3-WAY

HOUSING 2-WAY SOCKET

HOUSING 2-WAY SOCKET

HOUSING 3-WAY, FEMALE

HOUSING 3-WAY SOCKET

SEAL PIN (CARBURETED ONLY)

TERMINAL SOCKET, #18 AWG

WIRE SEAL #18-20 AWG

HOUSING MALE, 1-WAY

HOUSING PIN, 2-WAY (BLACK)

RECEPTACLE 4-WAY PIN (BLACK)

PIN HOUSING 6-WAY (BLACK)

LOCK SECONDARY, 2-WAY SOCKET

HOUSING 3-WAY SOCKET (BLACK)

HOUSING 2-WAY PIN (BLACK) (REPLACES GRAY CONNECTOR)

HOUSING 4-WAY PIN (GRAY)

PIN HOUSING 6-WAY (BLACK) (REPLACES GRAY CONNECTOR)

SOCKET HOUSING 12-WAY (BLACK)

MAIN WIRING HARNESS CARB (CONTINUED)

SOCKET HOUSING 12-WAY (GRAY)

PIN LOCK SECONDARY, 2-WAY

PIN LOCK SECONDARY, 4-WAY

PIN LOCK SECONDARY, 6-WAY

LOCK SECONDARY, 3-WAY SOCKET HOUSING

SOCKET LOCK 1-WAY

WEATHER PLUG 4-WAY

SEAL PIN

TERMINAL PIN

TERMINAL SOCKET

SEAL PIN

CONNECTOR ANCHOR

FUSE/RELAY BLOCK

CONNECTOR 10-WAY

SOCKET LOCK SECONDARY

TERMINAL FEMALE, #18-20 WIRE

SEAL CABLE

HOUSING 3-WAY SOCKET

LOCK SECONDARY, 3-WAY HOUSING

HOUSING FEMALE

SOCKET HOUSING 4-WAY SOCKET (BLACK)

SECONDARY LOCK FUSE BLOCK

TERMINAL FEMALE

TERMINAL FEMALE

TERMINAL FEMALE, #12 GAUGE

TERMINAL 1/4 IN. FEMALE

TERMINAL FEMALE SPADE, 14-16 GAUGE

TERMINAL FEMALE, 12 GAUGE

TERMINAL INSULATED, FEMALE

HOUSING STARTER

TERMINAL #16-18 GAUGE

MAXI-FUSE 40 AMP (NOT ILLUSTRATED) NOTE: FUSE IS SOLD SEPERATELY AND IS NOT PART OF MAIN HARNESSES 70245-06 OR 71007-06

RELAY HOLDER

CONNECTOR 3-way

FUSE 15 AMP (BLUE)

TERMINAL FEMALE, #10-12 AWG

BOOT CRUISE CONTROL

TERMINAL FEMALE

Пылезащитный колпачок

COVER FUSE RELAY BLOCK

SOCKET HOUSING 4-WAY

SOCKET TERMINAL #14-20 GAUGE

MAIN WIRING HARNESS CARB (CONTINUED)

PIN HOUSING (BLACK)

PIN HOUSING (WHITE)

PIN HOUSING 6-PLACE (BLACK)

PIN HOUSING 8-PLACE (BLACK)

TERMINAL PIN, #20-16 GAUGE

CONNECTOR ANCHOR

HOUSING FEMALE 2-WAY

COVER MAXI-FUSE (NOT ILLUSTRATED) NOTE: COVER IS SOLD SEPERATELY AND IS NOT PART OF MAIN HARNESSES 70245-06 OR 71007-06

SECONDARY LOCK FEMALE, 2-WAY

TERMINAL FEMALE, #10 GAUGE

WIRE SEAL #10 GAUGE (BLUE)

PIN HOUSING 8-WAY (BLACK)

SOCKET HOUSING 2-WAY (BLACK)

DC LEAD ASSEMBLY VOLTAGE REGULATOR

SECONDARY LOCK 8-WAY, PIN

SOCKET LOCK SECONDARY, 2-WAY

TERMINAL PIN

TERMINAL SOCKET

SEAL PIN

TERMINAL SOCKET, 20 GAUGE

SOCKET LOCK SECONDARY, 12-WAY

WIRE ASSEMBLY PUSH-ON, RIGHT ANGLE MOLDED, 60 IN. (USED FOR NEUTRAL SWITCH APPLICATION)
