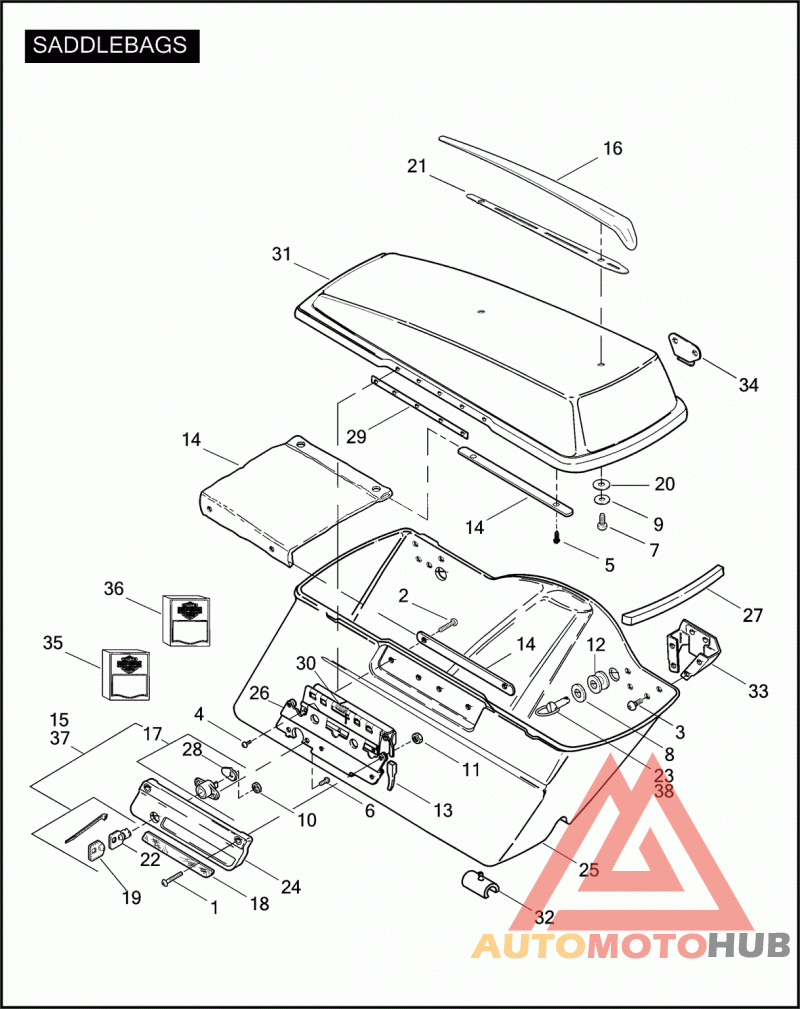

Кофры боковые

SCREW NO. 8-32 X 5/16 TORX BUTTON HD., SELF-TAPPING

SCREW NO. 8-32 X 1/2 TORX TRUSS HD. W/ DOGPOINT LEAD (STAINLESS)

SCREW NO. 8-32 X 5/16 TORX TRUSS HD.

SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH

SCREW NO. 12-16 X 5/8 TORX HD., SELF-TAPPING

SCREW NO. 8-32 X 3/8 TORX PAN HD. (GRADE 5)

SCREW NO. 10-24 X 3/8 TORX PAN HD.

WASHER 5/16 X 1-1/16 X 3/64

WASHER 13/64 X 47/64 X 1/16

JAMNUT 9/32-28 X 1/4

NUT NO. 8-32 X 1/8 X 11/32 (GRADE 2)

Уплотнитель резиновый

RUB BAR LEFT (PLASTIC)

RUB BAR RIGHT (PLASTIC)

CHECK STRAP

TRIM STRIP COVER, LEFT

TRIM STRIP COVER, RIGHT

LOCK W/ 7586 & 90682-96 (SPECIFY KEY CODE)

REFLECTOR RIGHT (RED)

REFLECTOR LEFT (RED)

COVER KEY HEAD

WASHER 5/32 X 3/4 X 1/16 EPDM (BLACK)

Прокладка

PROTECTOR SADDLEBAG (NOT ILLUSTRATED)

BAIL HEAD STUD (NOTE: BAIL MUST BE REMOVED FOR SALE IN GERMANY.)

FACE PLATE RIGHT

FACE PLATE LEFT

SADDLEBAG BOTTOM LEFT (2-TONE CANDY CHERRY)

SADDLEBAG BOTTOM LEFT (SUNRISE YELLOW PEARL/STINGRAY SILVER)

SADDLEBAG BOTTOM LEFT (2-TONE CANDY TEAL)

SADDLEBAG BOTTOM RIGHT (2-TONE CANDY CHERRY)

SADDLEBAG BOTTOM RIGHT (SUNRISE YELLOW PEARL/STINGRAY SILVER)

SADDLEBAG BOTTOM RIGHT (2-TONE CANDY CHERRY)

LATCH ASSEMBLY LEFT, W/ 53482-93 & 90707-00A

LATCH ASSEMBLY RIGHT, W/ 53483-93 & 90707-00A

GASKET COVER

CAM HOOK

BACKING PLATE

Пружина

SADDLEBAG COVER LEFT (LIGHT CANDY CHERRY)

SADDLEBAG COVER LEFT (SUNRISE YELLOW PEARL)

SADDLEBAG COVER LEFT (DARK CANDY TEAL)

SADDLEBAG COVER RIGHT (LIGHT CANDY CHERRY)

SADDLEBAG COVER RIGHT (SUNRISE YELLOW PEARL)

SADDLEBAG COVER RIGHT (DARK CANDY TEAL)

Подушка

LABEL LOAD LIMITS (NOT ILLUSTRATED)

SADDLEBAG ASSEMBLY LEFT, COMPLETE, W/ 1, 2, 3, 4, 7, 9, 11, 12, 13, 14, 16, 20, 21, 24, 25, 26, 27, 29, 30, 31, 32 & 33 (2-TONE CANDY CHERRY)

SADDLEBAG ASSEMBLY LEFT, COMPLETE, W/ 1, 2, 3, 4, 7, 9, 11, 12, 13, 14, 16, 20, 21, 24, 25, 26, 27, 29, 30, 31, 32 & 33 (SUNRISE YELLOW PEARL/STINGRAY SILVER)

SADDLEBAG ASSEMBLY LEFT, COMPLETE, W/ 1, 2, 3, 4, 7, 9, 11, 12, 13, 14, 16, 20, 21, 24, 25, 26, 27, 29, 30, 31, 32 & 33 (2-TONE CANDY TEAL)

SADDLEBAG ASSEMBLY RIGHT, COMPLETE, W/ 1, 2, 3, 4, 7, 9, 11, 12, 13, 14, 16, 20, 21, 24, 25, 26, 27, 29, 30, 31, 32 & 33 (2-TONE CANDY CHERRY)

SADDLEBAG ASSEMBLY RIGHT, COMPLETE, W/ 1, 2, 3, 4, 7, 9, 11, 12, 13, 14, 16, 20, 21, 24, 25, 26, 27, 29, 30, 31, 32 & 33 (SUNRISE YELLOW PEARL/STINGRAY SILVER)

SADDLEBAG ASSEMBLY RIGHT, COMPLETE, W/ 1, 2, 3, 4, 7, 9, 11, 12, 13, 14, 16, 20, 21, 24, 25, 26, 27, 29, 30, 31, 32 & 33 (2-TONE CANDY TEAL)

MOUNTING BRACKET

Плита Износа

COVER INDOOR STORAGE

Вставка

TOOL KIT (NOT ILLUSTRATED)

LOCKSET COMPLETE WITH KEYS, IGNITION KNOB, TOUR PACK, & SADDLEBAG LOCK

STUD BAIL LESS (HDI)
