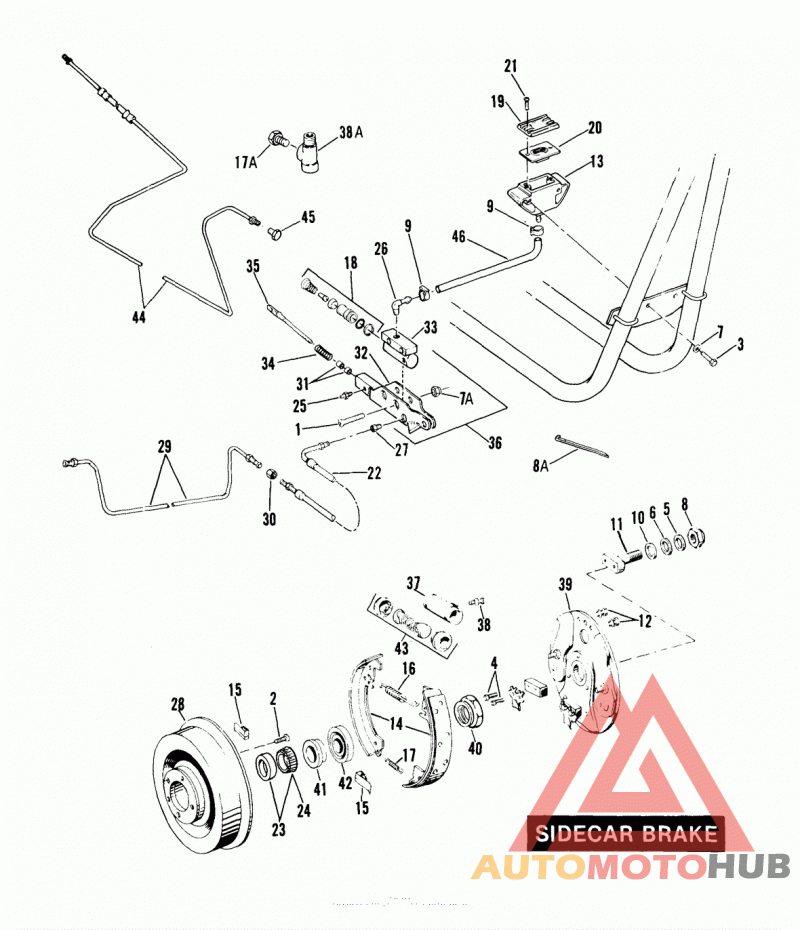

SIDECAR BRAKE - TLE & RLE

Деталь SCREW, 5/16-24 X 1-1/2 Pozidrivflat ctsk. hd. (Grade 2 steel) | 85 to * - RLE

Деталь SCREW, 7/16-14 X 1-1/4flat socket ctsk. hd. (w/lockpatch) | Late 84 to * - TLE; 85 to * - RLE

Деталь BOLT, No. 10-32 X 1/2 hex. washer hd. Grade 2 steel) | 85 to * - RLE

Деталь BOLT, 5/16-24 X 1-3/8 hex. hd.(Grade 5 steel) | Late 84 to * - TLE; 85 to * - RLE

Деталь WASHER, 5/8 X 13/16 X 1/32 | Late 84 to * - TLE; 85 to * - RLE

Деталь WASHER, 5/8 X 15/16 X 3/32 | Late 84 to * - TLE; 85 to * - RLE

Деталь WASHER, No. 10 X 1/2 X 3/64 | 85 to * - RLE

Деталь LOCKNUT, 5/8-18 X 15/16 hex. | Late 84 to * - TLE; 85 to * - RLE

Деталь CABLE STRAP | Late 84 to * - TLE; 85 to * - RLE

Деталь WASHER | Late 84 to * - TLE; 85 to * - RLE

Деталь ANCHOR STUD | Late 84 to * - TLE; 85 to * - RLE

Деталь SCREW AND LOCKWASHER, brake cylinder | Late 84 to * - TLE; 85 to * - RLE

Деталь RESERVOIR, master cylinder | 85 to * - RLE

Деталь SET OF BRAKE SHOES & LININGS | Late 84 to * - TLE; 85 to * - RLE

Деталь HOLD DOWN, spring | Late 84 to * - TLE; 85 to * - RLE

Деталь BRAKE SHOE SPRING, upper | Late 84 to * - TLE; 85 to * - RLE

Деталь BRAKE SHOE SPRING, lower | Late 84 to * - TLE; 85 to * - RLE

Деталь PLUG, brake line tee | Late 84 to * - TLE

Деталь REPAIR KIT, master cylinder | 85 to * - RLE

Деталь COVER, reservoir | 85 to * - RLE

Деталь GASKET, reservoir | 85 to * - RLE

Деталь SCREW | 85 to * - RLE

Деталь HOSE, brake line | 85 to * - RLE

Деталь BEARING, brake drum | 85 to * - TLE, RLE

Деталь BEARING CUP, brake drum | 85 to * - TLE, RLE

Деталь FITTING lubrication | 85 to * - RLE

Деталь FITTING, reservoir hose | 85 to * - RLE

Деталь FITTING, brake hose | 85 to * - RLE

Деталь BRAKE DRUM ASSEMBLY | Late 84 - TLE; Early 85 - TLE, RLE

Деталь BRAKE DRUM ASSEMBLY | Late 85 to * - TLE, RLE

Деталь BRAKE LINE | 85 to * - RLE

Деталь FITTING, brake line | 85 to * - RLE

Деталь BUSHING, housing | 85 to * - RLE

Деталь HOUSING, master cylinder | 85 to * - RLE

Деталь MASTER CYLINDER | 85 to * - RLE

Деталь SPRING, brake rod | 85 to * - RLE

Деталь ROD, brake | 85 to * - RLE

Деталь MASTER CYLINDER AND HOUSING ASSEMBLY | 85 to * - RLE

Деталь BRAKE CYLINDER, wheel (3/4in. dia.) | Late 84 to 89 - TLE; 85 to 89 - RLE

Деталь BRAKE CYLINDER, wheel (5/8in. dia.) - NOTE: 87071-89 BRAKE CYLINDER may be used on 1986 to 1989 TLE and 1985 to 1989 RLE. | 90 to * - TLE, RLE

Деталь TEE, sidecar brake line | Late 84 to * - TLE

Деталь SIDE PLATE | Late 84 to * - TLE, 85 to * - RLE

Деталь LOCKNUT, axle shaft | Late 84 to * - TLE, RLE

Деталь SPACER | Late 84 to * - TLE

Деталь SEAL, oil | Late 84 to * - TLE, RLE

Деталь REPAIR KIT, brake cylinder (3/4in. dia.) | Late 84 to 89 - TLE; 85 to 89 - RLE

Деталь REPAIR KIT, brake cylinder (5/8in. dia.) | 90 to * - TLE, RLE

Деталь BRAKE LINE | Late 84 to * - TLE

Деталь CAP, sidecar brake line | Late 84 to * - TLE

Деталь HOSE reservoir | 85 to * - RLE
