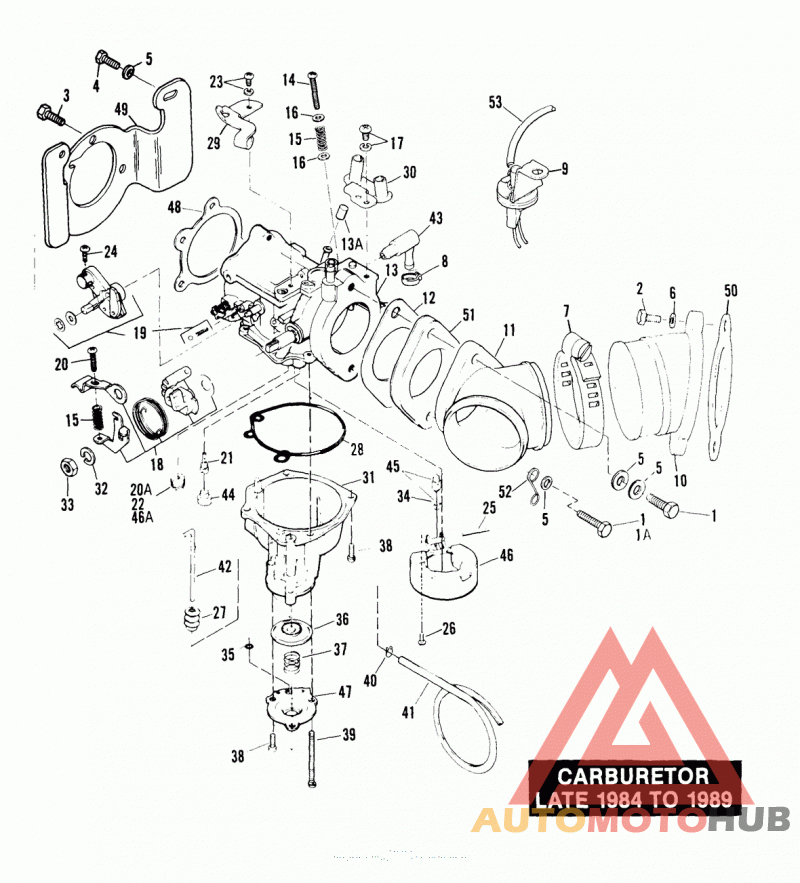

CARBURETOR - LATE 1984 TO 1989

BOLT, 5/16-18 X 1-1/2 hex. hd. (Grade 5 steel) | 89 - FXRP, FLHTP

BOLT, 5/16-18 X 1-1/4 hex. hd. (Grade 5 steel) | Late 84 to 89 - FXRP, FLHTP

BOLT, 5/16-18 X 7/8 hex. hd. | Late 84 to 89 - FXRP, FLHTP

BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel) | Late 84 & 85 - FXRP, FLHTP

BOLT, 5/16-18 X 1 hex. hd.(Grade 5 steel) | Late 84 & 85 - FXRP, FLHTP

WASHER, 11/32 X 11/16 X 1/16 | Late 84 to 89 - FXRP, FLHTP

WASHER, 21/64 X 33/64 X 1/16 | Late 84 to 89 - FXRP, FLHTP

CLAMP | Late 84 to 89 - FXRP, FLHTP

CLAMP, fuel hose | Late 84 to 89 - FXRP, FLHTP

VACUUM SWITCH | Late 84 - FLHTP

VACUUM SWITCH | 85 to 89 - FLHTP

VACUUM SWITCH | Late 84 to 89 - FXRP

COMPLIANCE FITTING, front cylinder head | Late 84 to 89 - FXRP, FLHTP

COMPLIANCE FITTING, rear cylinder head | Late 84 to 89 - FXRP, FLHTP

INTAKE MANIFOLD | Late 84 to 89 - FXRP, FLHTP

GASKET, spacer Early 78 - All Models | Early 85 - FXRP, FLHTP

CARBURETOR (02BK) | Late 84 - FXRP

CARBURETOR (02BR) | 86 & 87 - FXRP

CARBURETOR, 49 STATE | 88 & 89 - FXRP, FLHTP

CARBURETOR (B88M) | 85 - FXRP, FLHTP

CARBURETOR (B88R) | 86 & 87 - FLHTP

CAP, overflow port | 85 to 89 - FXRP FLHTP

SCREW, throttle stop | Late 84 to 89 - FXRP, FLHTP

SPRING, throttle stop screw & fast idle screw | Late 84 to 89 - FXRP, FLHTP

WASHER, throttle stop screw | Late 84 to 89 - FXRP, FLHTP

SCREW WITH WASHER, throttle cable bracket | Late 84 to 89 - FXRP, FLHTP

LEVER KIT, accelerator pump | Late 84 to 89 - FXRP, FLHTP

CHOKE LEVER KIT | Late 84 to Early 86 - FXRP, FLHTP

CHOKE LEVER KIT | Late 86 to 89 - FXRP, FLHTP

SCREW, fast idle | Late 84 to 89 - FXRP, FLHTP

MAIN JET, 1.70mm - standard | 86 & 87 - FLHTP

LOW SPEED JET, 0.50mm | Late 84 to 87 - FXRP, FLHTP

LOW SPEED JET, .052mm | 88 to 89 - FXRP FLHTP

MAIN JET, 1.75mm - standard | Late 84 & 85 - FLHTP; 85 to * - FXRP

SCREW WITH WASHER, choke cable bracket | Late 84 to 89 - FXRP, FLHTP

SCREW, wire block | Late 84 to 89 - FXRP, FLHTP

PIN, float | Late 84 to 89 - FXRP, FLHTP

SCREW, float pin | Late 84 to 89 - FXRP, FLHTP

RUBBER CAP, accelerator pump | Late 84 to 89 - FXRP, FLHTP

O-RING, bowl | Late 84 to 89 - FXRP, FLHTP

BRACKET, choke cable | Late 84 & 85 - FXRP, FLHTP

BRACKET, choke cable | 86 to 89 - FXRP FLHTP

BRACKET, throttle cable | Late 84 to 89 - FXRP, FLHTP

LOCKWASHER, throttle lever | Late 84 to 89 - FXRP, FLHTP

NUT, throttle lever | Late 84 to 89 - FXRP, FLHTP

CLIP, float valve | Late 84 - FXRP

O-RING | .. Late 84 to 89 - FXRP, FLHTP

DIAPHRAGM accelerator pump | Late 84 to 89 - FXRP, FLHTP

SPRING, diaphragm | Late 84 to 89 - FXRP, FLHTP

SCREW | Late 84 to 89 - FXRP, FLHTP

SCREW | Late 84 to 89 - FXRP, FLHTP

CLIP, overflow hose | Late 84 to 89 - FXRP, FLHTP

HOSE, overflow | Late 84 to 89 - FXRP, FLHTP

ROD, accelerator pump | Late 84 to 89 - FXRP, FLHTP

FITTING | Late 84 to 89 - FXRP, FLHTP

PLUG, low speed jet | Late 84 to 89 - FXRP, FLHTP

CARBURETOR REBUILD KIT | 86 to 89 - FLHTP

CARBURETOR REBUILD KIT | 86 to 89 - FXRP

VALVE, with clip | Late 84 to 89 - FXRP, FLHTP

FLOAT | Late 84 to 89 - FXRP, FLHTP

MAIN JET, 1.60mm - standard | Late 84 - FXRP

MAIN JET, 1.65mm - standard | 86 to 89 - FXRP; 88 to & 89 - FLHTP

HOUSING, accelerator pump | Late 84 to 89 - FXRP, FLHTP

BRACKET, mounting | Late 84 to 86 - FXRP, FLHTP

GASKET, compliance fittings | Late 84 to 89 - FXRP, FLHTP

INSULATING SPACER | Late 84 to 89 - FXRP, FLHTP

CABLE GUIDE | Late 84 to 89 - FXRP, FLHTP

HOSE, 3/16 I.D. x 3/4 O.D. (10ft. lg.) (black) - Hose is sold in bulk length under the following part number. Cut to required length. | Late 84 to 89 - FXRP, FLHTP
