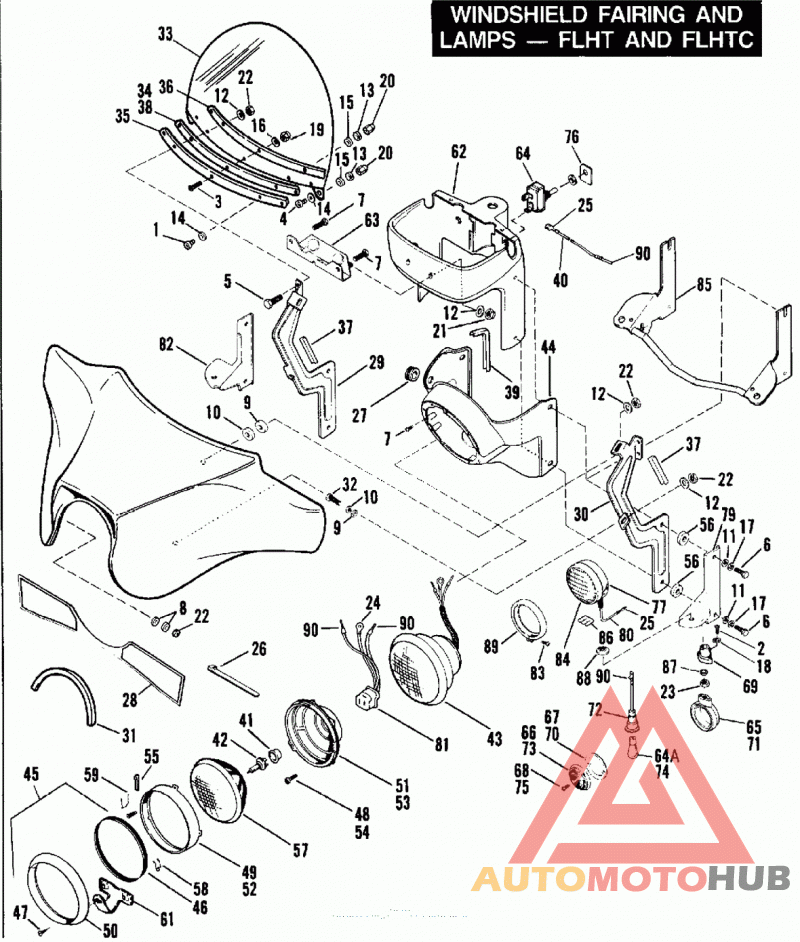

WINDSHIELD FAIRING AND LAMPS - FLHT AND FLHTC

SCREW | NOTE: For painted part numbers, see Dealer Accessory Guide.

SCREW, 10-24 X 1/2 hex socket head (grade 8) | NOTE: For painted part numbers, see Dealer Accessory Guide.

SCREW | NOTE: For painted part numbers, see Dealer Accessory Guide.

BOLT, 5/16-24 X 1-1/2 hex. hd.(Grade 5 steel) | NOTE: For painted part numbers, see Dealer Accessory Guide.

WASHER, 17/64 X 1 X 1/16 | NOTE: For painted part numbers, see Dealer Accessory Guide.

WASHER, 5/16 X 11/16 X 1/16 | NOTE: For painted part numbers, see Dealer Accessory Guide.

WASHER, 17/64 X 33/64 X 5/64 (black) | NOTE: For painted part numbers, see Dealer Accessory Guide.

WASHER | NOTE: For painted part numbers, see Dealer Accessory Guide.

LOCKWASHER, 5/16 | NOTE: For painted part numbers, see Dealer Accessory Guide.

LOCKWASHER, No. 10 | NOTE: For painted part numbers, see Dealer Accessory Guide.

ACORN NUT | NOTE: For painted part numbers, see Dealer Accessory Guide.

LOCKNUT, 1/4-20 X 5/16 X 7/16 hex. | NOTE: For painted part numbers, see Dealer Accessory Guide.

LOCKNUT, 3/8-16 X 7/16 X 9/16 hex. | NOTE: For painted part numbers, see Dealer Accessory Guide.

WIRE TERMINAL, ring type | NOTE: For painted part numbers, see Dealer Accessory Guide.

CONNECTOR, passing lamp wire | NOTE: For painted part numbers, see Dealer Accessory Guide.

TRIM, lower fairing | NOTE: For painted part numbers, see Dealer Accessory Guide.

WINDOW, fairing | NOTE: For painted part numbers, see Dealer Accessory Guide.

CUSHION TAPE, outer fairing | NOTE: For painted part numbers, see Dealer Accessory Guide.

BULB, halogen HB2/H-4 | NOTE: For painted part numbers, see Dealer Accessory Guide.

HEADLAMP ASSEMBLY complete, w/ 22, 30, 31, 34, 36, 38, 39, 51, 56, 62, 63, 64 & 65 | NOTE: For painted part numbers, see Dealer Accessory Guide.

SCREW, headlamp door | NOTE: For painted part numbers, see Dealer Accessory Guide.

DOOR, headlamp N/A | NOTE: For painted part numbers, see Dealer Accessory Guide.

RETAINING RING, headlamp N/A | NOTE: For painted part numbers, see Dealer Accessory Guide.

MOUNTING RING ASSEMBLY N/A | NOTE: For painted part numbers, see Dealer Accessory Guide.

ADJUSTING SCREW, headlamp N/A | NOTE: For painted part numbers, see Dealer Accessory Guide.

SCREW N/A | NOTE: For painted part numbers, see Dealer Accessory Guide.

HEADLAMP, less bulb - w/ boot | NOTE: For painted part numbers, see Dealer Accessory Guide.

SPRING, door - top N/A | NOTE: For painted part numbers, see Dealer Accessory Guide.

BULB, tail lamp | NOTE: For painted part numbers, see Dealer Accessory Guide.

LAMP WITH WIRE. turn signal - 12V (amber) | NOTE: For painted part numbers, see Dealer Accessory Guide.

LENS, turn signal (amber) | NOTE: For painted part numbers, see Dealer Accessory Guide.

O-Ring | NOTE: For painted part numbers, see Dealer Accessory Guide.

SCREW w/O-ring | NOTE: For painted part numbers, see Dealer Accessory Guide.

MOUNTING BRACKET | NOTE: For painted part numbers, see Dealer Accessory Guide.

AUXILIARY LAMP | NOTE: For painted part numbers, see Dealer Accessory Guide.

LAMP WIRING & CONNECTOR, headlamp | NOTE: For painted part numbers, see Dealer Accessory Guide.

SCREW, spotlamp molding | NOTE: For painted part numbers, see Dealer Accessory Guide.

SEALED UNIT AUXILIARY LAMPS | NOTE: For painted part numbers, see Dealer Accessory Guide.

SPOTLAMP BRACKET | NOTE: For painted part numbers, see Dealer Accessory Guide.

CLIP, wire | NOTE: For painted part numbers, see Dealer Accessory Guide.

CLAMP BLOCK, passing lamps . | NOTE: For painted part numbers, see Dealer Accessory Guide.

SWIVEL BLOCK | NOTE: For painted part numbers, see Dealer Accessory Guide.

BEZEL RING, passing lamps | NOTE: For painted part numbers, see Dealer Accessory Guide.

TERMINAL, pin | NOTE: For painted part numbers, see Dealer Accessory Guide.
