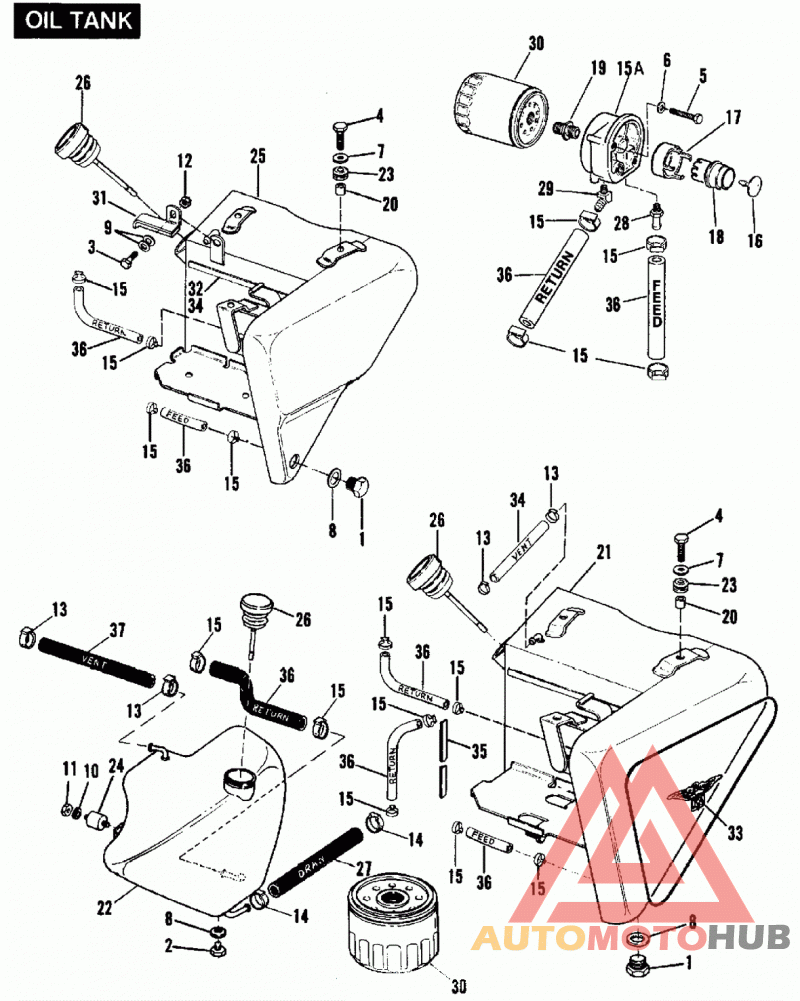

OIL TANK & FILTER

DRAIN PLUG, 1/2-20 x 1/2 x 7/8 hex. hd.

BOLT, 5/16-24 X 5/8 hex. hd. (Grade 5 steel)

BOLT, 5/16-18 x 3-1/4 hex. hd. (Late 84 to * - XL, XLS, XLX)

WASHER, 11/32 X 11/16 X 1/16

WASHER, 5/16 X 11/16 X 1/16

LOCKWASHER, 5/16

LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.

NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)

CLAMP, oil vent hose

CLAMP, oil draw hose

CLAMP, oil hoses

MOUNTING BRACKET (Late 84 to * - XL, XLS, XLX)

CAP, breather baffle (Late 84 to * - XL, XLS, XLX)

TUBE, breather baffle (Late 84 to * - XL, XLS, XLX)

ADAPTOR, oil filter (Late 84 to * - XL, XLS, XLX)

OIL TANK ASSEMBLY

MOUNT (rubber)

FILLER CAP W/ DIPSTICK

HOSE, oil draw

Фитинг

FITTING, oil line (Late 84 to * - XL, XLS, XLX)

OIL FILTER (chrome)

OIL FILTER, standard

OIL FILTER (black)

HOSE, 3/8 I.D. x 5/8 O.D. reinforced rubber (25 ft.lg.) | NOTE: Hose is sold in bulk length. Cut to required length.

HOSE 1/4 I.D. (25 ft. long) (black) | NOTE: Hose is sold in bulk length. Cut to required length.
