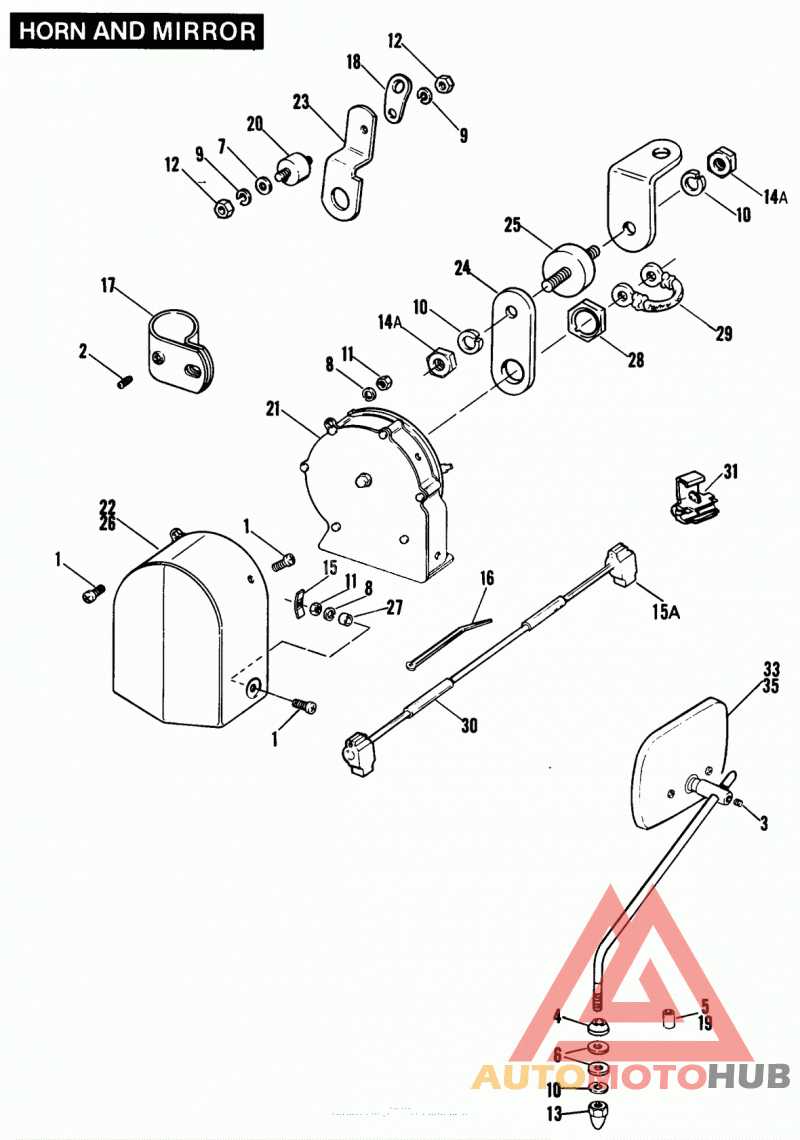

HORN AND MIRROR

SCREW NO. 8-32 X 5/8 SOCKET BUTTON HD.

SCREW, No. 8-32 X 1-7/8 (headless brass)

SET SCREW, 1/4-28 X 1/4 socket hd.

SPACER Early 82 to * - All Models

SPACER 71 to 81 - All Models except FXB 82 to * - All Models

WASHER, 5/16 X 11/16 X 1/16

WASHER, 1/4 X 5/8 X 1 /16

LOCKWASHER, No. 8 71 to * - All Models

LOCKWASHER, 1/4

LOCKWASHER, 5/16

NUT, No. 8-32 X 1/8 X 11/32 hex.(Grade 2 steel)

NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)

ACORN NUT, 5/16-24 X 19/32 X 1/2 hex.

NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)

SPEED NUT, horn cover 71 to * - All Models

INSULATOR, flag terminal 71 to * - All Models

PLASTIC STRAP, horn wire to frame 71 to * - All Models

CLAMP, horn to frame (1 or 2) 71 to 80 - FX, FXE, FXS

RUBRER MOUNT, horn - 1/4-20 threads 73 to 80 - FX, FXE

HORN F NOTE

TWIN HORN KIT Late 76 to * - All Models

HORN A NOTE

COVER, high note horn Late 76 to * - All Models except FXB

COVER, high tone horn (black) 80 to 82 - FXB

BRACKET, horn mounting (chrome) 73 to 80 - FX, FXE

MOUNTING PLATE, horn 71 & 72 - All Models Late 76 to * - All Models

RUBBER MOUNT, horn - 5/16-18 threads 71 & 72 - All Models Late 76 to * - All Models

COVER, low note horn (standard FX) N/A 71 to Early 76 - All Models

COVER, low note horn (standard FX) Late 76 to 80 - FX, FXE

COVER, high note horn N/A 71 to 84 - All Models

SPACER, horn cover 71 to * - All Models

NUT, horn mounting 71 to * - All Models

GROUND STRAP, horn 71 to * - All Models

CABLE ASSEMBLY, twin horn 71 to * - All Models

WIRE CONNECTOR 71 to 81 - All Models; 82 - FXWG 83 to * - All Models

MIRROR KIT, 5in. rectangular (chrome)(2 - except FXE-80) 82 & 83 - All Models 71 to 81 - All Models except FXB | Consists of besides mirror & stem:Index nos. 3, 4, 5, 6, 11, & 13

MIRROR KIT short, right (convex)

MIRROR KIT, 5in. rectangular (black) 80 & 81 - FXB | Consists of besides mirror & stem:Index nos. 3, 6, 10, 13, & 19

MIRROR KIT short, left (convex)
