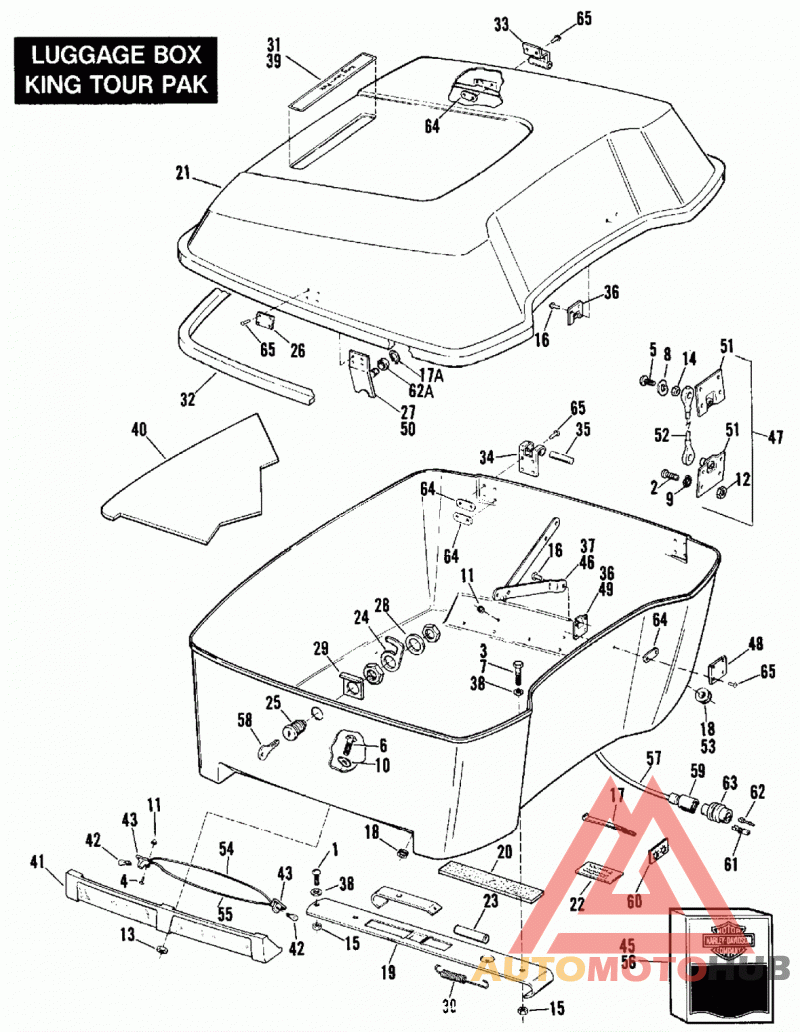

LUGGAGE BOX (KING TOUR-PAK) (CLASSIC)

SCREW, 1/4-20 X 1 pan (Grade 2 steel)

SCREW, 1/4-20 X 5/8 mach. screw pan hd.

SCREW, 6-32X1/2 PANHEAD PHIL, BRT ZINC

BOLT, 1/4-20 X 1 hex. hd. (Grade 5 steel)

SCREW, No. 6-32 x 1/4 Pozidriv pan hd. 49 to 82 - FL, FLH, FLH-80, Classic

SCREW, #6-32 X 1/4 torx drive int. w/lockpath

Винт

BOLT, 1/4-20 X 5/8 hex. hd.(Grade 5 steel)

WASHER, spring, 1/4 X 1/2 X 1/16

LOCKWASHER, No. 6 internal tooth 82 - FLH-80, Classic

LOCKWASHER, No. 8 internal tooth 49 to 82 - FL, FLH, FLH-80, Classic

ACORN NUT, No. 6-32 X 1/4 X 1/4 hex.(nylon)

NUT, No. 6-32 x 1/8 x 5/16 hex. 82 - FLH-80, Classic

NUT, No. 8-32 X 1/8 X 11/32 hex.(Grade 2 steel)

LOCKNUT, 3/16-32 (nylon) (Grade 6)

LOCKN UT, No. 8-32 x 3/16 x 3/8 hex. 82 - Classic

LOCKNUT, 1/4-20 X 7/32 X 7/16 hex.

RIVET (4; 2 - 82 & Later) 49 to 82 - FL, FLH, FLH-80; 79 to 81 Classic

POP RIVET 82 - Classic

CABLE STRAP 49 to 82 - FL, FLH, FLH-80, Classic

CABLE STRAP 49 to 79 - FL, FLH, FLH-80, Classic

RETAINING RING 80 to 82 - FL, FLH, FLH-80, Classic

GROMMET, side light wiring 49 to 82 - FL, FLH, FLH-80, Classic

BOX BRACKET, lower 49 to 82 - FL, FLH, FLH-80, Classic

FOAM TAPE 80 to 82 - FL, FLH, FLH-80, Classic

COVER, tour-pak (vivid black) 80 to 82 - FL, FLH, FLH-80

COVER, tour pak 80 & 81 - Classic

WARNING LABEL, tour-pak 49 to 82 - FL, FLH, FLH-80, Classic

LOCKING HOOK, luggage box cover 49 to 80 - FL, FLH, FLH-80, Classic

LOCKING HOOK, tour-pak cover 81 & 82 - FLH-80, Classic

LOCK, luggage box - with nuts 49 to 82 - FL, FLH, FLH-80; 79 to 81 Classic

LATCH PLATE, luggage box cover 49 to 82 - FL, FLH, FLH-80, Classic

LATCH, luggage box cover 49 to 80 - FL, FLH, FLH-80, Classic

WASHER, locking gear 49 to 82 - FL, FLH, FLH-80, Classic

WASHER, body lock 49 to 82 - FL, FLH, FLH-80, Classic

SPRING, luggage box 49 to 82 - FL, FLH, FLH-80, Classic

NAMEPLATE, luggage box, in.KING TOUR-PAKin. (brown) 49 to 82 - FL, FLH, FLH-80, Classic

Прокладка

HINGE, luggage box cover - upper 49 to 82 - FL, FLH, FLH-80, Classic

HINGE, luggage box cover - lower 49 to 82 - FL, FLH, FLH-80, Classic

HINGE PIN, luggage box cover 49 to 82 - FL, FLH, FLH-80, Classic

BRACKET, luggage box brace 49 to 82 - FL, FLH, FLH-80, Classic

CABLE BRACE ASSEMBLY, luggage box

WASHER, box bracket (nylon) 49 to 82 - FL, FLH, FLH-80, Classic

NAMEPLATE, luggage box, in.KING TOUR-PAKin. (black) 49 to 82 - FL, FLH, FLH-80, Classic

MAT, luggage box

BULB, luggage box side light 49 to 82 - FL, FLH, FLH-80, Classic

SOCKET, luggage box side light 49 to 82 - FL, FLH, FLH-80, Classic

LIGHT KIT, luggage box 49 to 82 - FL, FLH, FLH-80, Classic | Consists of items 4, 6, 10, 11, 13, 17, 18, 22, 41-43, 53-57, 59 & 60

CABLE BRACE ASSEMBLY, luggage box

BRACE ASSEMBLY, luggage box - with brackets 82 - FLH-80, Classic

BACKING PLATE Late 80 to 82 - FL, FLH, FLH-80, Classic

CABLE BRACE ASSEMBLY, luggage box

LATCH, luggage box cover 81 & 82 - FLH-80, Classic

BRACKET, cover to box cable 82 - FLH-80, Classic

CABLE, cover to box 82 - FLH-80, Classic

GROM MET, side light wiring 49 to 82 - FL, FLH, FLH-80, Classic

WIRE SIDE LIGHT (GREEN)

CABLE ASSEMBLY, black - side light 49 to 82 - FL, FLH, FLH-80, Classic

WIRING HARNESS, rear fender - in.KING TOUR- PAKin. 49 to 82 - FL, FLH, FLH-80, Classic

WIRING HARNESS, luggage box side light 49 to 82 - FL, FLH, FLH-80, Classic

RECEPTACLE, side light wire 49 to 82 - FL, FLH, FLH-80, Classic

CONNECTOR TAB, King Tour-Pak wiring harness 49 to Early 80 - FL, FLH, FLH-80, Classic

SOCKET, King Tour-Pak wiring harness 49 to 82 - FL, FLH, FLH-80, Classic

PIN, King Tour-Pak wiring harness 49 to 82 - FL, FLH, FLH-80, Classic

ROLLER, saddlebag latch - 0.58 diameter 80 to 82 - FL, FLH, FLH-80, Classic

ROLLER, saddlebag latch - 0.45 diamter 80 to 82 - FL, FLH, FLH-80, Classic

PLUG, King Tour-Pak wiring harness 49 to 82 - FL, FLH, FLH-80, Classic

BACKING PLATE (10; 8 - Late 80 & later) 49 to 82 - FL, FLH, FLH-80, Classic

RIVET (24; 28 - Late 80 & Later) 49 to 82 - FL, FLH, FLH-80, Classic
