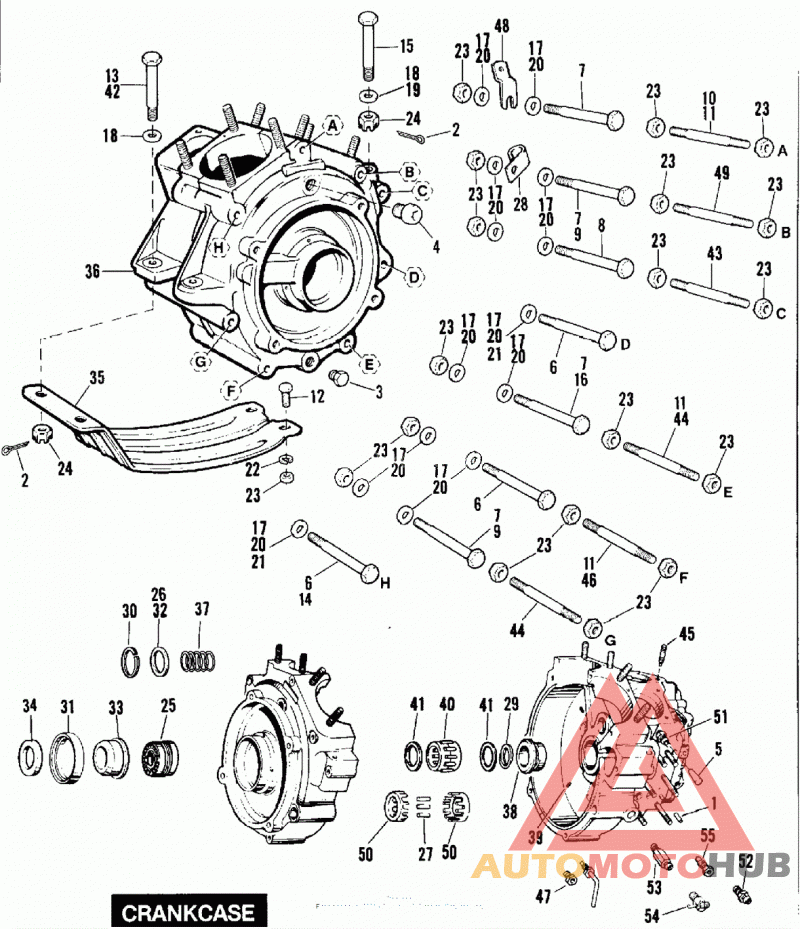

Картер двигателя

COTTER PIN, 3/32 x 5/8 41 to 66 - FL, FLH

DRAIN PLUG 41 to 70 - FL, FLH

PLUG, timing hole 41 to 69 - FL, FLH

PLUG, timing hole 70 to * - FL, FLH, FLH-80, Classic

PLUG, oil pump vent hole 70 to 80 - FL, FLH, FLH-80, Classic | NOTE: Use with 24519-73D & 24524-77D crankcases when using 80 & earlier oil pump

BOLT, 5/16-18 X 3-1/2 hex. hd. (Grade 5 steel)

Болт

BOLT, 5/16-24 x 5 hex. hd. 79 to * - FL, FLH, FLH-80, Classic

BOLT, 5-3/8 hex. hd. 82 to * - FLH-80, Classic

STUD, 5/16-24 X 5-3/4 hex. hd.(Grade 5 steel)

STUD, 5/16-24 X 5-3/4 hex. hd.(Grade 5 steel)

BOLT, 5/16-24 X 3/4 hex. hd.(Grade 5 steel)

BOLT, 3/8-24 X 2-3/4 hex. hd.(Grade 5 steel)

BOLT, 3/8-16 X 3-1/4 hex hd.(Grade 8 steel)

BOLT, 3/8-24 X 3-1/2 hex. hd.(Grade 5 steel)

BOLT, 5/16-24 x 1/2 hex. hd. N/A 76 to 78 - FL, FLH, FLH-80

WASHER, 11/32 X 11/16 X 1/16

WASHER, 5/16 X 13/16 X 3/32

WASHER, 3/8 X 13/16 X 1/16

WASHER, 5/16 X 11/16 X 1/16

WASHER, 3/8 x 5/8 x 1/16 Late 74 to 78 - FL, FLH, FLH-80, Classic

LOCKWASHER, 5/16

NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)

LOCKNUT, 3/8-24 X 7/16 X 9/16 hex.

BEARING, left crankcase (Timken) 69 to * - FL, FLH, FLH-80, Classic

BEARING, left crankcase (Timken) 55 to 68 - FL, FLH

SHIM, bearing assembly, 0.0925 - .0915 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.0945 - .0935 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.0965 - .0955 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.0985 - .0975 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1005 - .0995 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1025 - .1015 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1045 - .1035 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1065 - .1055 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1085 - .1075 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1105 - .1095 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1125 - .1115 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1145 - .1135 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1165 - .1155 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1185 - .1175 69 to * - FLH-80, Classic

SHIM, bearing assembly, 0.1205 - .1195 69 to * - FLH-80, Classic

ROLLER, right bearing, 0.250 x 0.490 lg. - std. 58 to * - FL, FLH, FLH-80, Classic

ROLLER, right bearing - 0.0001 O.S. 58 to * - FL, FLH, FLH-80, Classic

ROLLER, right bearing - 0.0002 O.S. 58 to * - FL, FLH, FLH-80, Classic

ROLLER, right bearing - 0.0003 O.S. 58 to * - FL, FLH, FLH-80, Classic

ROLLER, right bearing - 0.0004 O.S. 58 to * - FL, FLH, FLH-80, Classic

ROLLER, right bearing - 0.0005 O.S. 58 to * - FL, FLH, FLH-80, Classic

ROLLER, right bearing - 0.0006 O.S. 58 to * - FL, FLH, FLH-80, Classic

ROLLER, right bearing - 0.0008 O.S. 58 to * - FL, FLH, FLH-80, Classic

ROLLER, right bearing - 0.0010 O.S. 58 to * - FL, FLH, FLH-80, Classic

BEARING ROLLER, 0.1875 x 0.800 lg. - std. 54 to 57 - FL, FLH

CLIP, air cleaner hose (breather) Late 78 to Early 81 - FL, FLH, FLH-80, Classic

RETAINING RING, right bearing 58 to * - FL, FLH, FLH-80, Classic

BEARING ASM., main - left side of crankshaft

OIL SEAL 70 to * - FL, FLH, FLH-80, Classic

SHIM, sprocket shaft bearing - 0.003 N/A 55 to 68 - FL, FLH, FLH-80, Classic

SPACER, sprocket shaft 70 to * - FL, FLH, FLH-80, Classic

SPACER, sprocket shaft - 0.336 thick 55 to 64 - FL, FLH

SPACER, sprocket shaft - 0.06 thick 70 to * - FL, FLH, FLH-80, Classic

SPACER, sprocket shaft - 0.09 thick 70 to * - FL, FLH, FLH-80, Classic

SPACER, sprocket shaft - 0.12 thick 70 to * - FL, FLH, FLH-80, Classic

SPACER, sprocket shaft - 0.15 thick 70 to * - FL, FLH, FLH-80, Classic

SPACER, sprocket shaft - 0.18 thick 70 to * - FL, FLH, FLH-80, Classic

SPACER, sprocket shaft - 0.21 thick 70 to * - FL, FLH, FLH-80, Classic

CRANKCASE GUARD 41 to Early 81 - FL, FLH, FLH-80, Classic

SET OF CRANKCASES N/A 66 to 69 - FL, FLH

SET OF CRANKCASES N/A 70 to 72 - FL, FLH

Set of Crankcases-Sold as replacement only - 73 to 84 Shovels

SET OF CRANKCASES (black) N/A 79 to 82 - Classic

HELI-COIL INSERT 84 to * - FLH-80

BUSHING, right crankcase - std.

BUSHING, right crankcase - 0.002in. O.S. O.D.

BUSHING, right crankcase - 0.005in. O.S. O.D.

RIGHT BEARING - std. N/A 58 to 81 - FL, FLH, FLH-80, Classic

RIGHT BEARING - 0.0001 O.S 58 to * - FL, FLH, FLH-80, Classic

RIGHT BEARING - 0.0002 O.S 58 to * - FL, FLH, FLH-80, Classic

RIGHT BEARING - 0.0003 O.S 58 to * - FL, FLH, FLH-80, Classic

RIGHT BEARING - 0.0004 O.S 58 to * - FL, FLH, FLH-80, Classic

RIGHT BEARING - 0.0005 O.S 58 to * - FL, FLH, FLH-80, Classic

RIGHT BEARING - 0.0006 O.S 58 to * - FL, FLH, FLH-80, Classic

RIGHT BEARING - 0.0008 O.S 58 to * - FL, FLH, FLH-80, Classic

RIGHT BEARING - 0.0010 O.S 58 to * - FL, FLH, FLH-80, Classic

WASHER, right bearing 58 to * - FL, FLH, FLH-80, Classic

BOLT, front engine mounting N/A 41 to 72 - FL, FLH

CRANKCASE STUD, 5/16-24 x 5 41 to 78 - FL, FLH, FLH-80

STUD, 5/16-24 X 5-3/4 hex. hd.(Grade 5 steel)

NUT, breather pipe 65 to 67 - FL, FLH

BRACKET, clamp Late 82 to * - FLH-80, Classic

CRANKCASE STUD 76 to 79 - FL, FLH, FLH-80, Classic

RETAINER, right roller bearing 58 to * - FL, FLH, FLH-80, Classic

FITTING, vent pipe tubing N/A 41 to 64 - FL, FLH

Фитинг

Фитинг

TEE, rear chain oiler 70 to 79 - FL, FLH, FLH-80, Classic

FITTING, vent hose 65 & Early 66 - FL, FLH Late 76 to 78 - FL, FLH, FLH-80
