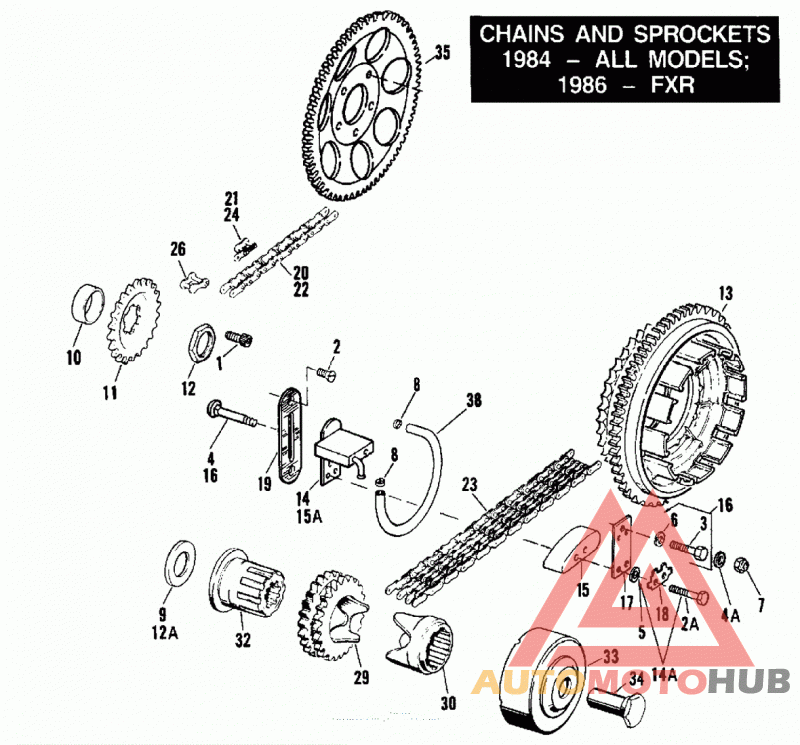

CHAINS AND SPROCKETS - 1984 - ALL MODELS; 1986 - FXR

Винт

SCREW 5/16-18 X 7/8 Pozidriv flat countersink hd. (Grade 2)

PAD MOUNTING KIT, includes items 3 & 6

BOLT, 3/8-24 X 2-3/4 hex. hd.(Grade 5 steel)

CARRIAGE BOLT, 3/8-16 X 3 (Grade 5 steel)

WASHER, 5/16 X 13/16 X 3/32

LOCKWASHER, 3/8

LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.

CLAMP (Early 84 - FXRS, FXRT)

SPACER, sprocket shaft - 0.06 thick

SPACER, sprocket shaft - 0.09 thick

SPACER, sprocket shaft - 0.12 thick

SPACER, sprocket shaft - 0.15 thick

SPACER, sprocket shaft - 0.18 thick

SPACER, sprocket shaft - 0.21 thick

Распорная втулка

SPROCKET, 22 T - with 857 SCREW

NUT, sprocket

SPACER, sprocket shaft - 0.01 thick (as req`d) (Late 84 - FXRS, FXRT;

SPACER, sprocket shaft - 0.02 thick (as req`d) (Late 84 - FXRS, FXRT;

SPACER, sprocket shaft - 0.03 thick (as req`d) (Late 84 - FXRS, FXRT;

CLUTCH SHELL AND SPROCKET, with ring gear

CLUTCH SHELL AND SPROCKET W/RING GEAR

CHAIN TENSIONER SHOE (Early 84 - FXRS, FXRT)

TENSIONER SCREW KIT

PAD, chain tensioner

CHAIN TENSIONER SHOE (Late 84 - FXRS, FXRT; 86 to * - FXR, )

CHAIN TENSIONER MOUNTING KIT, w/#`s 4, 4A & 7

PLATE, chain tensioner

LOCK PLATE, chain tensioner

ANCHOR PLATE chain tensioner

REAR CHAIN, O-ring - 112 pitch (Late 84 - FXRS, FXRT)

CONNECTING LINK, O-ring (Late 84 - FXRS, FXRT; 86 to * - FXR, )

REAR CHAIN (Duckworth)

REAR CHAIN (Diamond)

PRIMARY CHAIN

CONNECTING LINK, rear chain (Diamond) (press fit)

CONNECTING LINK, rear chain (Duckworth) (press fit)

CONNECTING LINK, front chain (Duckworth) N/A

OFFSET REPAIR LINK, rear chain (Diamond)

TRANSMISSION SPROCKET, 24T

SLIDING CAM

SHAFT EXTENSION

COVER ASSEMBLY, w/springs

Гайка

SPROCKET, rear wheel - 48 T

HOSE, 3/8 I.D. x 5/8in. O.D. reinforced rubber (25 ft.) (Early 84 - FXRS, FXRT) | NOTE: Hose is sold in bulk length. Cut to required length.
