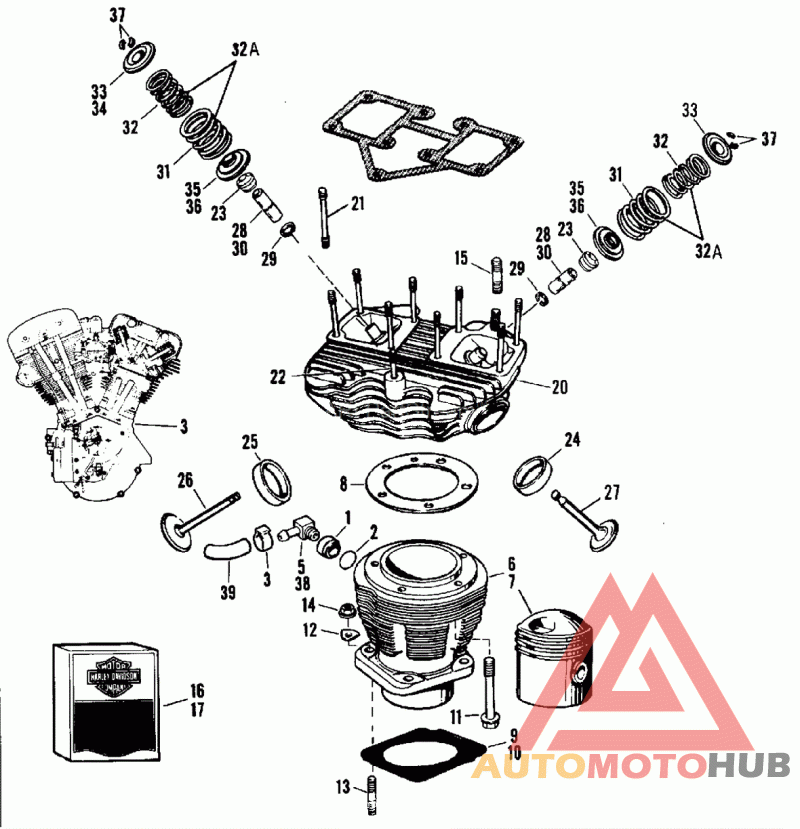

CYLINDER, CYLINDER HEAD AND VALVES

Деталь FRONT CYLINDER WITH PISTON

Деталь REAR CYLINDER WITH PISTON

Прокладка

Деталь GASKET, front cylinder base

Деталь GASKET, rear cylinder base

Деталь BOLT, cylinder head

Деталь LOAD SPREADER, cylinder base stud

Деталь STUD, cylinder base

Гайка

Деталь Gasket Sets - 66 to 84 Big Twins

Деталь Gasket Sets-top overhaul - 71 to 84 FX

Деталь HEAD, front cylinder (w/studs)

Деталь HEAD, rear cylinder (w/studs)

Деталь STUD, rocker arm cover (long)

Деталь STUD, rocker arm cover (short)

Деталь SEAL, valve (Late 81 to * - FLT, FLHT, Classics) | NOTE: To use on Early 81 & Earlier vechicles; replace exhaust valves with either 18086-81 or 18089-81; replac

Деталь Insert, exhaust valve seat - 66 to 84 Big Twins

Деталь Insert, intake valve seat - 66 to 84 Big Twins

Деталь INTAKE VALVE (Nittan) (Late 81 to 83 - FLT, FLHT, Classics)

Деталь EXHAUST VALVE (Nittan) (Late 81 to 83 - FLT, FLHT, Classics)

Деталь VALVE GUIDE, int. and exh. - 0.008 O.S. (castiron)

Деталь VALVE GUIDE, int. and exh. - 0.006 O.S. (cast iron)

Деталь VALVE GUIDE, int. and exh. - 0.004 O.S. (cast iron)

Деталь VALVE GUIDE, int. and exh. - 0.003 O.S. (cast iron)

Деталь VALVE GUIDE, int. and exh. - 0.002 O.S. (castiron) (Late 81 to 83 - FLT, FLHT,

Деталь VALVE GUIDE, int. and exh. - 0.001 O.S. (castiron) (Late 81 to 83 - FLT, FLHT,

Деталь Valve Spring Kit incl. inner & outer springs - 66 to early 82 Big Twins

Деталь Valve Spring Kit incl. inner & outer springs - 66 to early 82 Big Twins

Деталь VALVE SPRING KIT - must be used as a unit

Деталь COLLAR, valve spring - upper (Late 81 to * - FLT, FLHT, Classics)

Деталь COLLAR, valve spring - lower (Late 81 to * - FLT, FLHT, Classics)

Деталь RETAINER, valve collar
