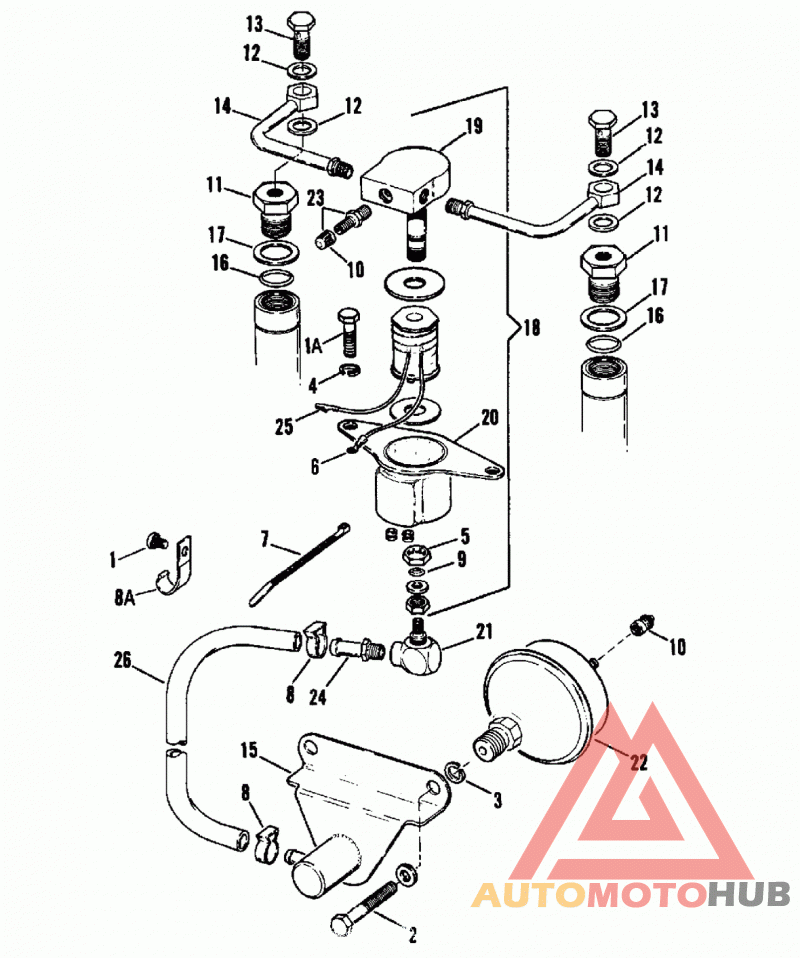

FRONT FORK AIR CONTROL - FXRT

SCREW, 5/16-24 X 3/8 Pozidriv truss hd. (w/lockwasher)(Grade 2 steel)

BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel)

BOLT, 3/8-24 X 1-3/4 hex. hd.(Grade 5 steel)

LOCKWASHER, 3/8

LOCKWASHER, 5/16

Гайка

WIRE TERMINAL, ring type, No. 10 hole - #16 - 22 wire

CABLE STRAP

Зажим

Хомут

VALVE CAP

CAP, fork slider tube

Прокладка

Фитинг

Патрубок

Держатель

O-RING, fork slider tube cap

WASHER, fork slider tube cap

VALVE ASSEMBLY

VALVE BODY

SOLENOID

Колено

ACCUMULATOR

VALVE STEM ASSEMBLY

Фитинг

TERMINAL, socket

HOSE, 3/8 I.D. x 5/8 O.D. fabric reinforced rubber (25 ft. long) | NOTE: Hose is sold in bulk length. Cut to required length.
