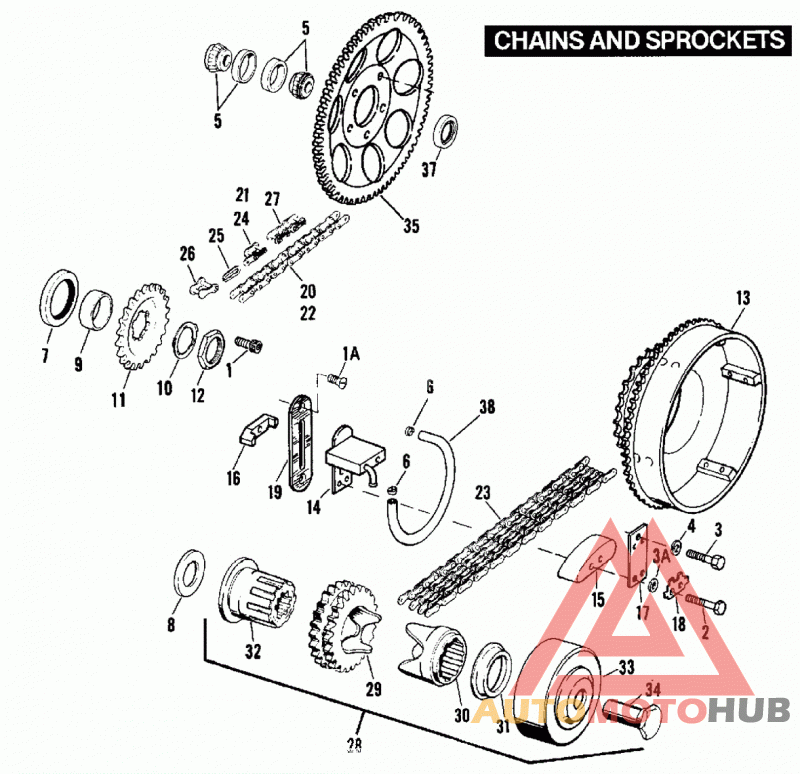

CHAINS AND SPROCKETS

SCREW 5/16-18 X 7/8 Pozidriv flat countersink hd. (Grade 2)

BOLT, 1/4-28 X 2 hex. hd. (Grade 5 steel)

BOLT, 3/8-24 X 2-3/4 hex. hd.(Grade 5 steel)

WASHER, 1/4 X 5/8 X 1 /16

LOCKWASHER, 3/8

BEARING, rear wheel

Зажим

Сальник

SPACER, sprocket shaft - 0.06 thick

SPACER, sprocket shaft - 0.09 thick

SPACER, sprocket shaft - 0.12 thick

SPACER, sprocket shaft - O.15 thick

SPACER, sprocket shaft - O.18 thick

SPACER, sprocket shaft - 0.21 thick

Распорная втулка

SPROCKET, 22 T - with 857 screw

NUT, sprocket

CLUTCH SHELL AND SPROCKET, with ring gear

CHAIN TENSlONER SHOE

TENSlONER MOUNTING KIT, includes items 2 & 3A

PAD, chain tensioner

NUT, chain tensioner

PLATE, chain tensioner

LOCK PLATE, chain tensioner

ANCHOR PLATE chain tensioner

REAR CHAIN, power chain (nickel plated)

REAR CHAIN, self lubricating

CONNECTING LINK, rear chain (Diamond)

REAR CHAIN (Duckworth)

REAR CHAIN (Diamond)

REAR CHAIN 25 ft. (Duckworth) N/A

REAR CHAIN 25 ft. (Diamond) N/A

PRIMARY CHAIN

CONNECTING LINK, rear chain (Diamond) (press fit)

CONNECTING LINK, rear chain (Duckworth) (press fit)

CONNECTING LINK, front chain (Duckworth) N/A

SPRING CONNECTING LINK, rear chain

CONNECTING LINK, front chain (Duckworth) N/A

OFFSET REPAIR LINK, rear chain (Diamond)

OFFSET REPAIR LINK, rear chain (Duckworth)

DOUBLE REPAIR LINK, rear chain (Diamond) N/A

DOUBLE REPAIR LINK, rear chain (Duckworth) N/A

COMPENSATING SPROCKET KIT - 24 T

COMPENSATING SPROCKET - 24 T

SLIDING CAM

Крышка крыльчатки

SHAFT EXTENSION

RETAINER AND COVER ASSEMBLY, w/spring washers

Гайка

SPROCKET, rear wheel - 48 T

OIL SEAL, rear sprocket

HOSE, 3/8 I.D. x 5/8 O.D. fabric reinforced rubber (25 ft. lg.). | NOTE: Hose is sold in bulk length. Cut to required length.
