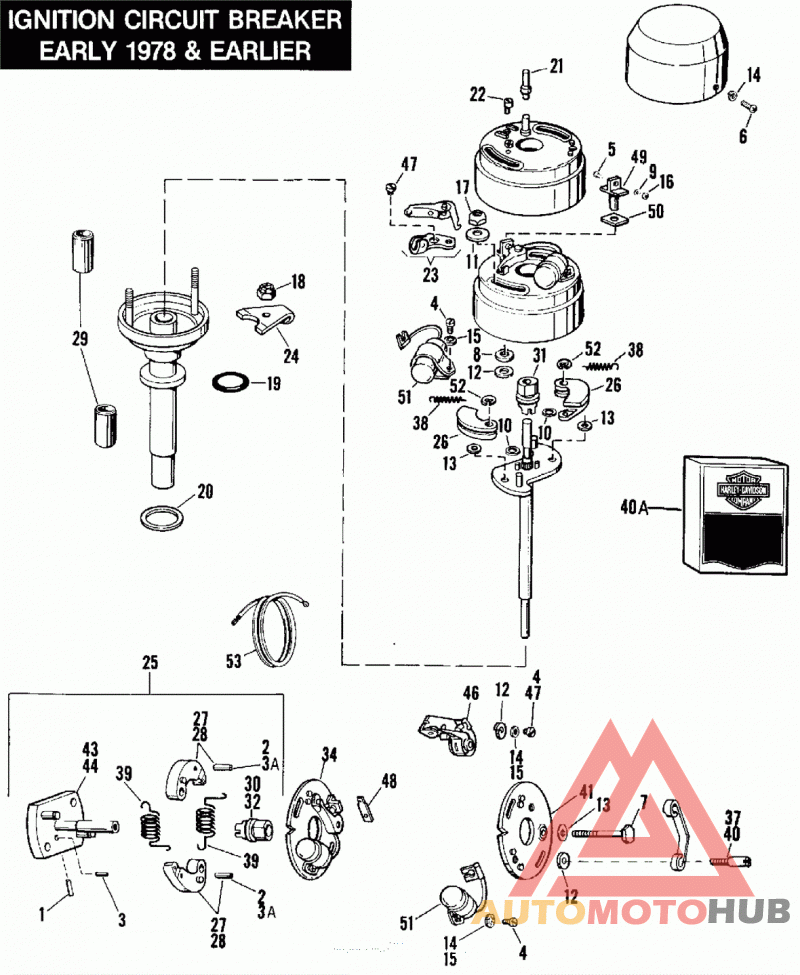

IGNITION CIRCUIT BREAKER - EARLY 1978 & EARLIER

ROLL PIN, breaker plate 70 to Early 78 - FL, FLH

ROLL PIN, breaker weight 70 to Early 78 - FL, FLH

ROLL PIN, breaker plate 70 to Early 78 - FL, FLH

PIN, breaker weight, use w/32629-80 70 to Early 78 - FL, FLH

SCREW, No. 8-36 x 1/4 fil. hd. (2 - Late 72 and later) 61 to Early 78 - FL, FLH

SCREW, No. 8-32 X 5/16 Pozidriv pan hd. (Grade 2 steel)

Винт

SCREW, timer 70 to Early 78 - FL, FLH

WASHER, 13/64 x 3/8 x 1/32 49 to 69 - FL, FLH

WASHER, 3/16 x 3/8 x 1/32 65 to 69 - FL, FLH

WASHER, No. 10 x 7/16 x 1/32 65 to 69 - FL, FLH

WASHER, 11/64 x 13/32 x 1/32 65 to Early 70 - FL, FLH Late 72 to Early 78 FL, FLH

WASHER, #4 X 5/16 X 1/32

LOCKWASHER, No. 8 48 to 69 - FL, FLH

LOCKWASHER, No. 8, internal tooth (2 - Late 72 and Late 72 andlater) 61 to Early 78 - FL, FLH

NUT, No. 8-32 X 1/8 X 11/32 hex.(Grade 2 steel)

LOCKNUT, 3/16-32 (nylon) (Grade 6)

LOCKNUT, 1/4-28 X 5/16 X 7/16 hex.

O-RING, circuit breaker housing 66 to 69 - FL, FLH

OIL SEAL, breaker stem 65 - FL, FLH

BREAKER POINT SET 48 to 69 - FL, FLH

CLAMP, circuit breaker N/A 66 to 69 - FL, FLH

WEIGHT & CAM ASSY | Consists of: 32522-80 WEIGHT & PIN ; 32533-70 CAM; 32605-70 SPRING ; 32629-80 SHAFT AND PLATE (Teflon coated)

WEIGHT & PIN, breaker assembly N/A 67 to 69 - FL, FLH

TIMER WEIGHT & PIN

WEIGHT & PIN (use w/32629-80) 70 to Early 78 - FL, FLH

BUSHING, breaker housing N/A 41 to 69 - FL, FLH

CAM, circuit breaker (use w/32629-80) 70 to Early 78 - FL, FLH

CAM N/A 65 to 69 - FL, FLH

TIMER CAM

CIRCUIT BREAKER BASE ASSEMBLY 70 to Early 78 - FL, FLH

SCREW, ignition breaker plate Late 72 to Early 78 - FL, FLH

SPRING, breaker weight N/A 67 to Early 69 - FL, FLH

SPRING, breaker weight N/A Late 69 - FL, FLH

SPRING, breaker weight 70 to Early 78 - FL, FLH

STUD, ignition breaker plate N/A Early 70 - FL, FLH

STUD, ignition breaker plate Late 70 to Early 72 - FL, FLH

IGNITION MODULE ASSEMBLY 71 to 78 - XLH, XLCH

BASE, circuit breaker 70 to Early 78 - FL, FLH

TIMER PLATE ASSY

SHAFT AND PLATE (Teflon coated) 70 to Early 78 - FL, FLH

BREAKER POINT SET 70 to Early 78 - FL, FLH

ADAPTER, terminal - circuit breaker 70 to Early 78 - FL, FLH

PIN, circuit breaker wire N/A 65 to 69 - FL, FLH

INSULATOR, wire stud N/A 49 to 69 - FL, FLH

WIRE, circuit breaker to coil 70 to Early 78 - FL, FLH
