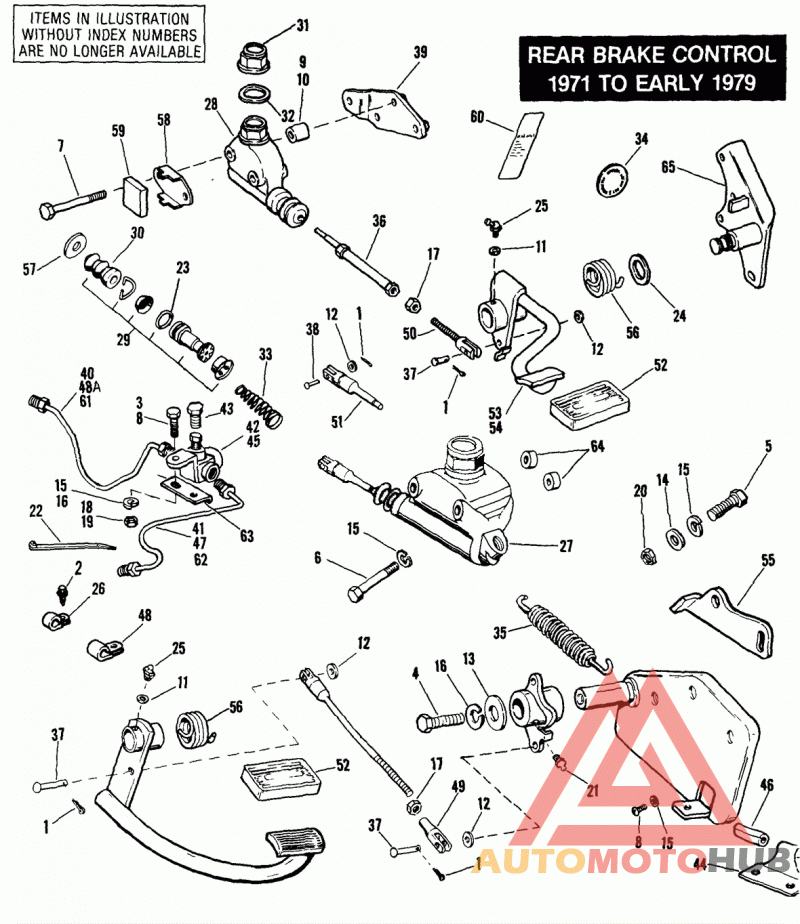

REAR BRAKE CONTROL - 1971 TO EARLY 1979

COTTER PIN, 1/16 x 1/2 71 to Early 79 - All Models

SCREW, No. 10-16 x 3/8 self tapping hex. washer hd. 71 to Early 72 - FX

BOLT, 5/16-24 X 1/2 hex. hd.(Grade 5 steel)

BOLT, 5/16-24 x 9/16 hex. hd. 71 to Early 72 - FX

BOLT, 3/8-24 X 2-3/4 hex. hd.(Grade 5 steel)

BOLT, 3/8-16 X 2-3/4 hex. hd.(Grade 5 steel

BOLT, 3/8-24 x 3-1/4 hex. hd. Late 72 to Early 79 - All Models

BOLT, 3/8-16 X 3/4 hex. hd.(Grade 5 steel)

SPACER, 5/8 rd. Late 72 to Early 79 - All Models

WASHER, 3/16 x 3/8 x 1/32 (brass) 71 to Early 79 - All Models

WASHER, 1/4 X 7/16 X 1/32

WASHER, 1/4 X 7/16 X 1/32

WASHER, 21/64 X 1 X 1/16

WASHER, 21/64 X 1 X 1/16

SCREW, 3/8-16 X 2.0 hex flange hd. (Grade 8)

SCREW, 3/8-16 X 2.0 hex flange hd. (Grade 8)

LOCKWASHER, 3/8

LOCKWASHER, 3/8

LOCKWASHER, 5/16

LOCKWASHER, 5/16

JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel)

JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel)

NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)

NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)

NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel)

NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)

NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)

FITTING lubrication

FITTING lubrication

STRAP, brake tube to frame 71 & Early 72 - FX

STRAP, brake tube to frame 71 & Early 72 - FX

O-RING, repair kit 71 to Early 79 - All Models

O-RING, repair kit 71 to Early 79 - All Models

GREASE FITTING, rear brake pedal 71 to Early 79 - All Models

GREASE FITTING, rear brake pedal 71 to Early 79 - All Models

CLAMP, front brake tube - small 71 & Early 72 - FX

CLAMP, front brake tube - small 71 & Early 72 - FX

MASTER CYLINDER 71 & 72 - FX

MASTER CYLINDER 71 & 72 - FX

MASTER CYLINDER 73 to Early 79 - All Models

MASTER CYLINDER 73 to Early 79 - All Models

REPAIR KIT, master cylinder 71 to Early 79 - All Models | NOTE: Must order 41773-58 VALVE & SEAT for use on 71 & 72 vehicles with drum brake.

RUBBER BOOT, master cylinder 71 to Early 79 - All Models

RUBBER BOOT, master cylinder 71 to Early 79 - All Models

FILLER PLUG, master cylinder 71 to Early 79 - All Models

FILLER PLUG, master cylinder 71 to Early 79 - All Models

WASHER, filler plug 71 to Early 79 - All Models

WASHER, filler plug 71 to Early 79 - All Models

MASTER CYLINDER SPRING, with cap, valve and seat 71 to Early 79 - All Models

MASTER CYLINDER SPRING, with cap, valve and seat 71 to Early 79 - All Models

SPRING, foot lever 71 & Early 72 - FX

SPRING, foot lever 71 & Early 72 - FX

BRAKE ROD Late 72 to Early 79 - All Models

BRAKE ROD Late 72 to Early 79 - All Models

PIN, rear brake rod clevis 71 to Early 79 - All Models

PIN, rear brake rod clevis 71 to Early 79 - All Models

CLEVIS PIN 71 & Early 72 - FX

CLEVIS PIN 71 & Early 72 - FX

SUPPORT BRACKET Late 72 to Early 79 - All Models

SUPPORT BRACKET Late 72 to Early 79 - All Models

REAR BRAKE TUBE N/A 71 & Early 72 - FX

REAR BRAKE TUBE N/A 71 & Early 72 - FX

FRONT TUBE 71 & Early 72 - FX; 73 to Early 79 - All Models

FRONT TUBE 71 & Early 72 - FX; 73 to Early 79 - All Models

TEE, REAR BRAKE TUBE

TEE, REAR BRAKE TUBE

PLUG, rear brake line 71 & Early 72 - FX

PLUG, rear brake line 71 & Early 72 - FX

BRACKET, brake front tube Early 72 - FX

TEE, REAR BRAKE TUBE

TEE, REAR BRAKE TUBE

HOSE PAD, brake front tube Early 72 - FX

HOSE PAD, brake front tube Early 72 - FX

BRAKE TUBE KIT, front (rubber mounted) N/A 71 & Early 72 - FX

BRAKE TUBE KIT, front (rubber mounted) N/A 71 & Early 72 - FX

CLAMP, brake front tube - large 71 & Early 72 - FX

CLAMP, brake front tube - large 71 & Early 72 - FX

REAR BRAKE TUBE Late 72 to 77 - All Models

REAR BRAKE TUBE Late 72 to 77 - All Models

CLEVIS, brake rod Late 72 to Early 79 - All Models

CLEVIS, brake rod Late 72 to Early 79 - All Models

PLUNGER, master cylinder 71 & Early 72 - FX

PLUNGER, master cylinder 71 & Early 72 - FX

RUBBER, brake pedal 71 to Early 79 - All Models

RUBBER, brake pedal 71 to Early 79 - All Models

LEVER, foot brake Late 72 to Early 78 - All Models

LEVER, foot brake Late 72 to Early 78 - All Models

LEVER, foot brake Late 78 & Early 79 - All Models

LEVER, foot brake Late 78 & Early 79 - All Models

STOP PLATE, foot brake lever N/A 71 & Early 72 - FX

STOP PLATE, foot brake lever N/A 71 & Early 72 - FX

SPRING, foot lever Late 79 to * - All Models except FXWG

SPRING, foot lever Late 79 to * - All Models except FXWG

RUBBER WASHER N/A Late 72 to Early 79 - All Models

RUBBER WASHER N/A Late 72 to Early 79 - All Models

CLAMP, master cylinder insulator Late 72 to Late 75 - FX 77 to Early 79 - All Models

CLAMP, master cylinder insulator Late 72 to Late 75 - FX 77 to Early 79 - All Models

INSULATOR Late 72 to Late 75 - FX 77 to Early 79 - All Models

INSULATOR Late 72 to Late 75 - FX 77 to Early 79 - All Models

WARNING LABEL, master cylinder (DOT 5) N/A 77 to Early 79 - All Models

WARNING LABEL, master cylinder (DOT 5) N/A 77 to Early 79 - All Models

REAR BRAKE TUBE N/A 78 & Early 79 - All Models

REAR BRAKE TUBE N/A 78 & Early 79 - All Models

BRACKET, brake line tee (ST E87-BH/K)

BRACKET, brake line tee (ST E87-BH/K)

SPACER, master cylinder stud 71 & Early 72 - FX

SPACER, master cylinder stud 71 & Early 72 - FX

BRACKET, foot lever Late 72 to Early 79 - All Models

BRACKET, foot lever Late 72 to Early 79 - All Models
