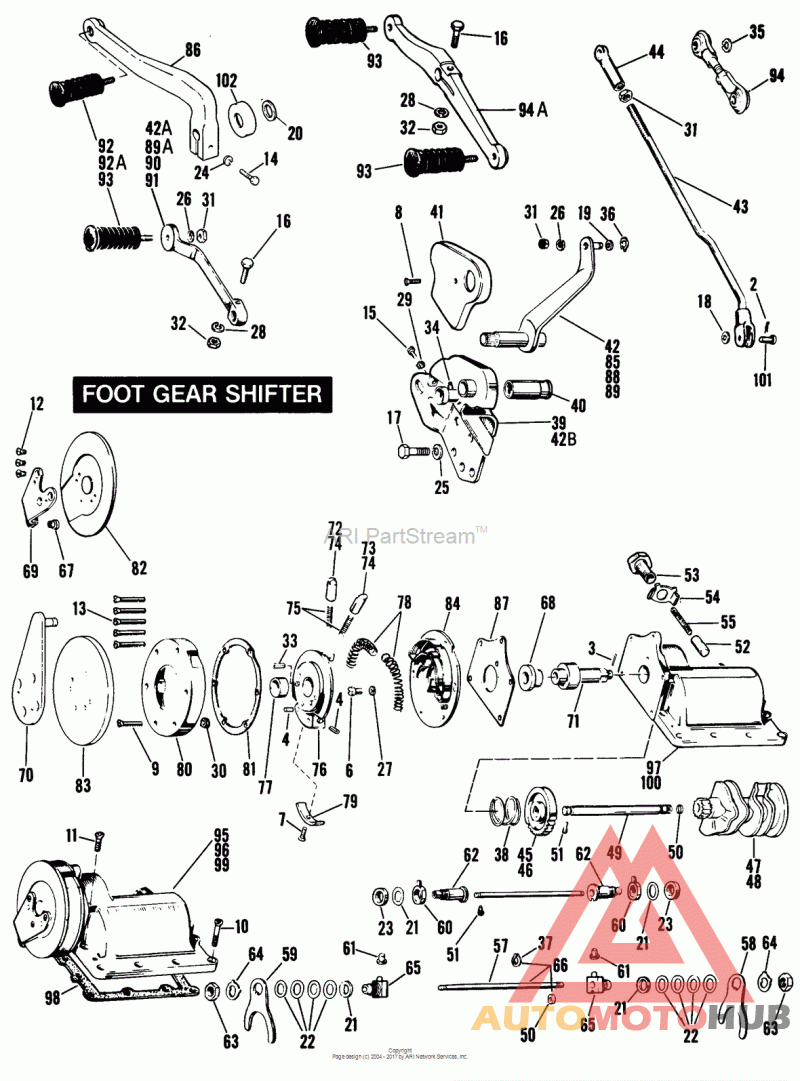

FOOT GEAR SHIFTER

Деталь COTTER PIN, 1/16 x 1/2 71 to 73 - All Models; 80 to 84 - FXWG

Деталь COTTER PIN, 1/16 x 1/2 71 to 73 - All Models; 80 to 84 - FXWG

Деталь COTTER PIN, 3/32 x 5/8 71 to Early 79 - All Models

Деталь COTTER PIN, 3/32 x 5/8 71 to Early 79 - All Models

Деталь ROLL PIN 74 to Early 79 - All Models

Деталь ROLL PIN 74 to Early 79 - All Models

Деталь SCREW, 1/4-20 x 11/16 fil. hd. N/A 71 to Early 79 - All Models

Деталь SCREW, 1/4-20 x 11/16 fil. hd. N/A 71 to Early 79 - All Models

Деталь SCREW, No. 6-32 x 7/16 ctsk. Pozidriv flat hd. 71 to Early 79 - All Models

Деталь SCREW, No. 6-32 x 7/16 ctsk. Pozidriv flat hd. 71 to Early 79 - All Models

Деталь SCREW NO. 8-32 X 5/8 SOCKET BUTTON HD.

Деталь SCREW NO. 8-32 X 5/8 SOCKET BUTTON HD.

Деталь SCREW, No. 10-24 x 1-5/32 socket hd. 71 to Early 79 - All Models

Деталь SCREW, No. 10-24 x 1-5/32 socket hd. 71 to Early 79 - All Models

Деталь SCREW, 1/4-24 x 2 socket hd. 71 to Early 79 - All Models

Деталь SCREW, 1/4-24 x 2 socket hd. 71 to Early 79 - All Models

Деталь SCREW, 1/4-24 x 13/16 socket hd. 71 to Early 79 - All Models

Деталь SCREW, 1/4-24 x 13/16 socket hd. 71 to Early 79 - All Models

Деталь SCREW, No. 10-24 x 1/2 ctsk. hd. N/A 71 to Early 79 - All Models

Деталь SCREW, No. 10-24 x 1/2 ctsk. hd. N/A 71 to Early 79 - All Models

Деталь SCREW, No. 10-24 x 1-3/8 socket hd. 71 to Early 79 - All Models

Деталь SCREW, No. 10-24 x 1-3/8 socket hd. 71 to Early 79 - All Models

Деталь BOLT, 1/4-20 X 1 hex. hd. (Grade 5 steel)

Деталь BOLT, 1/4-20 X 1 hex. hd. (Grade 5 steel)

Деталь SCREW, 1/4-24 x 3/8 rd. hd. 71 to 73 - All Models

Деталь SCREW, 1/4-24 x 3/8 rd. hd. 71 to 73 - All Models

Деталь SCREW,3/8-24 X 1-1/4 hex cap (grade 5)

Деталь BOLT, 3/8-16 X 3/4 hex. hd.(Grade 5 steel)

Деталь BOLT, 3/8-16 X 3/4 hex. hd.(Grade 5 steel)

Деталь WASHER, 1/4 X 7/16 X 1/32

Деталь WASHER, 1/4 X 7/16 X 1/32

Деталь WASHER, 3/8 x 9/16 x 1/32 71 to 73 - All Models; 80 to 84 - FXWG

Деталь WASHER, 3/8 x 9/16 x 1/32 71 to 73 - All Models; 80 to 84 - FXWG

Деталь WASHER, 1/2 X 3/4 X 1/32 (plastic)

Деталь WASHER, 1/2 X 3/4 X 1/32 (plastic)

Деталь WASHER, 43/64 x 55/64 x .007 (as req.) 71 to Early 79 - All Models

Деталь WASHER, 43/64 x 55/64 x .007 (as req.) 71 to Early 79 - All Models

Деталь WASHER, 43/64 x 55/64 x .014 (as req.) 71 to Early 79 - All Models

Деталь WASHER, 21/32 x 55/64 x 3/32 N/A 71 to Early 76 - All Models

Деталь WASHER, 21/32 x 55/64 x 3/32 N/A 71 to Early 76 - All Models

Деталь LOCKWASHER, 1/4

Деталь LOCKWASHER, 1/4

Деталь LOCKWASHER, 3/8

Деталь LOCKWASHER, 3/8

Деталь LOCKWASHER, 5/16

Деталь LOCKWASHER, 5/16

Деталь LOCKWASHER, 1/4 internal tooth

Деталь LOCKWASHER, 1/4 internal tooth

Деталь LOCKWASHER, 3/8 internal tooth

Деталь LOCKWASHER, 3/8 internal tooth

Деталь LOCKWASHER, 1/4 external tooth

Деталь LOCKWASHER, 1/4 external tooth

Деталь NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel)

Деталь NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel)

Деталь JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel)

Деталь JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel)

Деталь NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)

Деталь PIN, shifter pawl carrier 71 to Early 79 - All Models

Деталь PIN, shifter pawl carrier 71 to Early 79 - All Models

Деталь FITTING lubrication

Деталь FITTING lubrication

Деталь RETAINING RING, shifter rod 74 to * - All Models except FXWG

Деталь RETAINING RING, shifter rod 74 to * - All Models except FXWG

Деталь RETAINING RING 71 to 73 - All Models; 80 to 84 - FXWG

Деталь RETAINING RING 71 to 73 - All Models; 80 to 84 - FXWG

Деталь RETAINING RING, fork shaft Late 76 to Early 79 - All Models

Деталь RETAINING RING, fork shaft Late 76 to Early 79 - All Models

Деталь SPRING, shifter gear N/A 71 to Early 79 - All Models

Деталь SPRING, shifter gear N/A 71 to Early 79 - All Models

Деталь BRACKET, shift lever N/A 71 to 73 - All Models

Деталь BRACKET, shift lever N/A 71 to 73 - All Models

Деталь BUSHING, shift lever 71 to 73 - All Models; 80 to 84 - FXWG

Деталь BUSHING, shift lever 71 to 73 - All Models; 80 to 84 - FXWG

Деталь COVER, shift lever N/A 71 to 73 - All Models

Деталь COVER, shift lever N/A 71 to 73 - All Models

Деталь SHIFT LEVER N/A 71 to 73 - All Models

Деталь SHIFT LEVER N/A 71 to 73 - All Models

Деталь SHIFT LEVER (chrome) 80 to 84 - FXWG

Деталь SHIFT LEVER (chrome) 80 to 84 - FXWG

Деталь SHIFT LEVER (chrome) 80 to 84 - FXWG

Деталь SHIFT LEVER (chrome) 80 to 84 - FXWG

Деталь BRACKET, shift lever and foot peg 80 to 84 - FXWG

Деталь BRACKET, shift lever and foot peg 80 to 84 - FXWG

Деталь SHIFTER ROD N/A 71 to 73 - All Models; 80 to 84 - FXWG

Деталь SHIFTER ROD N/A 71 to 73 - All Models; 80 to 84 - FXWG

Деталь END, shift rod 71 to 73 - All Models; 80 to 84 - FXWG

Деталь END, shift rod 71 to 73 - All Models; 80 to 84 - FXWG

Деталь SHIFTER GEAR N/A 71 to 74 - All Models

Деталь SHIFTER GEAR N/A 71 to 74 - All Models

Деталь SHIFTER GEAR 75 to Early 79 - All Models

Деталь SHIFTER GEAR 75 to Early 79 - All Models

Деталь SHIFTER CAM (casting) N/A 75 to Early 79 - All Models

Деталь SHIFTER CAM (casting) N/A 75 to Early 79 - All Models

Деталь SHIFTER CAM (casting) 71 to 74 - All Models

Деталь SHIFTER CAM (casting) 71 to 74 - All Models

Деталь SHAFT, shifter cam 71 to Early 79 - All Models

Деталь SHAFT, shifter cam 71 to Early 79 - All Models

Деталь OIL SEAL, shifter cam shaft 71 to Early 79 - All Models

Деталь OIL SEAL, shifter cam shaft 71 to Early 79 - All Models

Деталь LOCK SCREW, shifter cam shaft 71 to Early 76 - All Models

Деталь LOCK SCREW, shifter cam shaft 71 to Early 76 - All Models

Деталь CAM FOLLOWER 71 to Early 79 - All Models

Деталь CAM FOLLOWER 71 to Early 79 - All Models

Деталь RETAINER, cam follower N/A 71 to Early 79 - All Models

Деталь RETAINER, cam follower N/A 71 to Early 79 - All Models

Деталь SHIFTER FORK, MAINSHAFT

Деталь SHIFTER FORK, MAINSHAFT

Деталь SHIFTER FORK, COUNTERSHAFT

Деталь SHIFTER FORK, COUNTERSHAFT

Деталь SHIFTER FINGER N/A 71 to Early 76 - All Models

Деталь SHIFTER FINGER N/A 71 to Early 76 - All Models

Деталь ROLLER, shifter finger 71 to Early 79 - All Models

Деталь BUSHING, shifter fork N/A 71 to Early 76 - All Models

Деталь BUSHING, shifter fork N/A 71 to Early 76 - All Models

Деталь LOCKNUT, SHIFT FORK

Деталь LOCKNUT, SHIFT FORK

Деталь LOCKWASHER, bushing 71 to Early 79 - All Models

Деталь LOCKWASHER, bushing 71 to Early 79 - All Models

Деталь SHIFTER FINGER Late 76 to Early 79 - All Models

Деталь SHIFTER FINGER Late 76 to Early 79 - All Models

Деталь FORK SHAFT KIT 71 to Early 79 - All Models | Consists of besides shaft: 11036 RETAINING RING; 34036-80 O-RING N/A

Деталь FORK SHAFT KIT 71 to Early 79 - All Models | Consists of besides shaft: 11036 RETAINING RING; 34036-80 O-RING N/A

Деталь BUSHING, shifter shaft lever 71 to Early 79 - All Models

Деталь BUSHING, shifter shaft lever 71 to Early 79 - All Models

Деталь BUSHING, shifter shaft (bronze) N/A 71 to Early 79 - All Models

Деталь BUSHING, shifter shaft (bronze) N/A 71 to Early 79 - All Models

Деталь LEVER, shifter shaft N/A 71 to 73 - All Models

Деталь LEVER, shifter shaft N/A 71 to 73 - All Models

Деталь LEVER, shifter shaft 74 to Early 79 - All Models

Деталь LEVER, shifter shaft 74 to Early 79 - All Models

Деталь SHIFTER SHAFT N/A 71 to Early 79 - All Models

Деталь SHIFTER SHAFT N/A 71 to Early 79 - All Models

Деталь SHIFTER PAWL, right (without spring) N/A 71 to Early 75 - All Models

Деталь SHIFTER PAWL, right (without spring) N/A 71 to Early 75 - All Models

Деталь SHIFTER PAWL N/A Late 75 to Early 79 - All Models

Деталь SHIFTER PAWL N/A Late 75 to Early 79 - All Models

Деталь SPRING, shifter pawl 71 to Early 79 - All Models

Деталь SPRING, shifter pawl 71 to Early 79 - All Models

Деталь CARRIER, shifter pawl N/A 71 to Early 79 - All Models

Деталь CARRIER, shifter pawl N/A 71 to Early 79 - All Models

Деталь BUSHING, pawl carrier N/A 71 to Early 79 - All Models

Деталь BUSHING, pawl carrier N/A 71 to Early 79 - All Models

Деталь SPRING, pawl carrier 71 to Early 79 - All Models

Деталь RETAINER, pawl N/A 71 to Early 79 - All Models

Деталь RETAINER, pawl N/A 71 to Early 79 - All Models

Деталь COVER, shifter 71 to Early 79 - All Models

Деталь COVER, shifter 71 to Early 79 - All Models

Деталь GASKET, shifter cover 71 to Early 79 - All Models

Деталь GASKET, shifter cover 71 to Early 79 - All Models

Деталь SHIELD, dust cover N/A 71 to 73 - All Models

Деталь SHIELD, dust cover N/A 71 to 73 - All Models

Деталь SHIELD, dust cover N/A 74 to Early 79 - All Models

Деталь SHIELD, dust cover N/A 74 to Early 79 - All Models

Деталь ADAPTER PLATE, shifter N/A 71 to Early 79 - All Models

Деталь ADAPTER PLATE, shifter N/A 71 to Early 79 - All Models

Деталь SHIFT LEVER, chrome N/A 71 to 73 - All Models

Деталь SHIFT LEVER (chrome)

Деталь SHIFT LEVER (chrome)

Деталь GASKET, adapter plate 71 to Early 79 - All Models

Деталь GASKET, adapter plate 71 to Early 79 - All Models

Деталь SHIFT LEVER (zinc) N/A 74 to Early 79 - All Models

Деталь SHIFT LEVER (zinc) N/A 74 to Early 79 - All Models

Деталь SHIFT LEVER (zinc) Late 79 to * - All Models except FXWG

Деталь SHIFT LEVER (zinc) Late 79 to * - All Models except FXWG

Деталь SHIFT LEVER, with cover N/A 80 to 84 - FXWG

Деталь SHIFT LEVER, with cover N/A 80 to 84 - FXWG

Деталь SHIFT LEVER (chrome) N/A 71 to 73 - All Models

Деталь SHIFT LEVER (chrome) N/A 71 to 73 - All Models

Деталь COVER, shift lever (black) 80 to 84 - FXWG

Деталь COVER, shift lever (black) 80 to 84 - FXWG

Деталь SHIFTER PEG, rubber

Деталь SHIFTER PEG, rubber

Деталь PEG shift lever

Деталь SHIFTER ROD, with ball joints 74 to * - All Models except FXWG

Деталь SHIFTER ROD, with ball joints 74 to * - All Models except FXWG

Деталь SHIFT LEVER, with cover - heel & toe (chrome) Early 80 - FXWG

Деталь SHIFT LEVER, with cover - heel & toe (chrome) Early 80 - FXWG

Деталь SHIFTER ASSEMBLY - 4 speed N/A 71 to 73 - All Models

Деталь SHIFTER ASSEMBLY - 4 speed N/A 71 to 73 - All Models

Деталь SHIFTER ASSEMBLY - 4 speed N/A 74 to Early 79 - FX, FXE, FXEF, FXEF-80

Деталь SHIFTER ASSEMBLY - 4 speed N/A 74 to Early 79 - FX, FXE, FXEF, FXEF-80

Деталь COVER, shifter N/A 71 to Early 79 - FX, FXE, FXEF, FXEF-80

Деталь COVER, shifter N/A 71 to Early 79 - FX, FXE, FXEF, FXEF-80

Деталь GASKET, shifter cover 71 to Early 79 - All Models

Деталь GASKET, shifter cover 71 to Early 79 - All Models

Деталь SHIFTER ASSEMBLY - 4 speed (painted) N/A 77 to Early 79 - FXS, FXS-80

Деталь SHIFTER ASSEMBLY - 4 speed (painted) N/A 77 to Early 79 - FXS, FXS-80

Деталь COVER, shifter (painted) N/A 77 to Early 79 - FXS, FXS-80

Деталь COVER, shifter (painted) N/A 77 to Early 79 - FXS, FXS-80

Деталь CLEVIS PIN, shift rod 71 to 73 - All Models; 80 to 84 - FXWG

Деталь COVER, shift lever 74 to * - All Models except FXWG

Деталь COVER, shift lever 74 to * - All Models except FXWG
