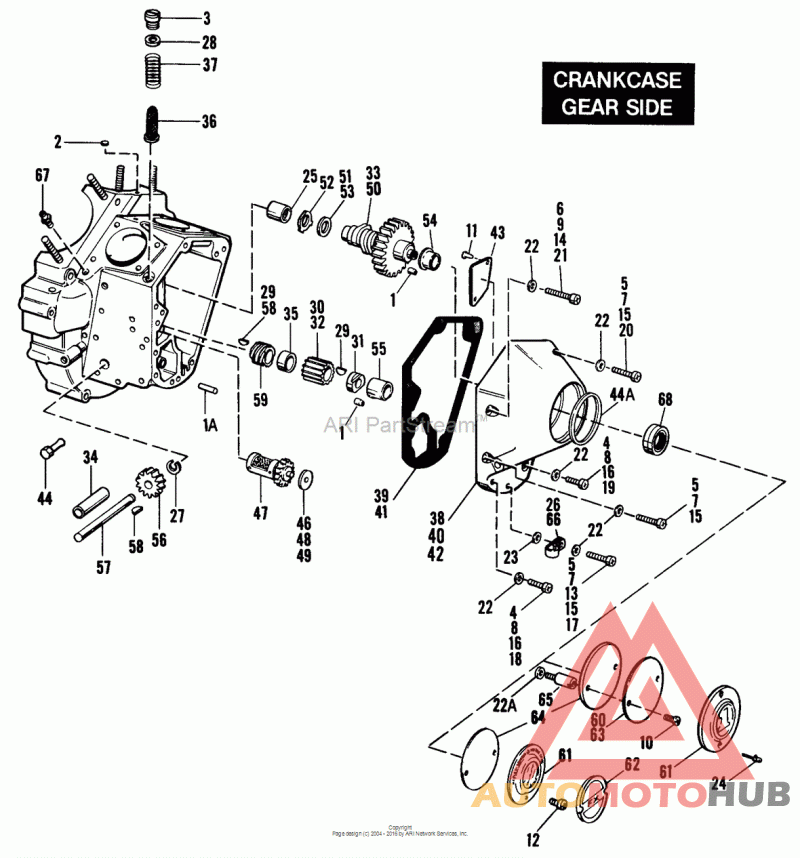

CRANKCASE - GEAR SIDE

Деталь DOWEL PIN (2 - as req`d.) 71 to * - All Models

Деталь DOWEL PIN 71 to * - All Models

Деталь PLUG, crankcase 71 to * - All Models

Деталь PLUG, oil screen 71 to 80 - All Models

Деталь SCREW, 1/4-20 x 1 Pozidriv oval ctsk. hd. (black) N/A 77 to 79 - FXS, FXS-80

Деталь SCREW, 1/4-20 x 1-1/4 Pozidriv oval ctsk. hd. (black) 77 to 79 - FXS, FXS-80

Деталь SCREW, 1/4-20 x 1-3/4 Pozidriv oval ctsk. hd. (black) N/A 77 to 79 - FXS, FXS-80

Деталь SCREW, 1/4-20 x 1-1/4 Pozidriv fil. hd. (2 in 1980) 71 to 80 - FX, FXE, FXEF; 79 - FXEF-80

Деталь SCREW, 1/4-20 x 1 Pozidriv fil. hd. 71 to 80 - FX, FXE, FXEF; 79 - FXEF-80

Деталь SCREW, 1/4-20 x 1-3/4 Pozidriv fil. hd. N/A 71 to 80 - FX, FXE, FXEF; 79 - FXEF-80

Деталь SCREW, No. 8-32 X 1/2 Pozidrivflat ctsk. hd. (Grade 2 steel)

Деталь SCREW No. 10-24 X 1/2 TORX pan hd.

Деталь SCREW, No. 8-32 x 5/8 Pozidriv hd. 73 to 79 - All Models

Деталь SCREW, No. 8-32 x 1/16 ctsk. hd. 71 & 72 - All Models

Деталь SCREW, 1/4-20 X 1-1/4 knurled socket hd. (w/lockpatch)

Деталь SCREW, 1/4-20 X 1-3/4 knurled socket hd. (Grade 8 steel)

Деталь SCREW, 1/4-20 X 1-3/8 knurled socket hd. (w/lockpatch)

Деталь SCREW, 1/4-20 X 1-1/8 knurled socket hd. (w/lockpatch)

Деталь ACORN HEAD BOLT, 1/4-20 x 1-1/4 N/A 80 to 82 - FXB

Деталь ACORN HEAD BOLT, 1/4-20 x 1 N/A 80 to Early 82 - FXB

Деталь ACORN HEAD BOLT, 1/4-20 x 1 N/A 80 to 82 - FXB

Деталь ACORN HEAD BOLT, 1/4-20 x 1-1/4 N/A 80 to 82 - FXB

Деталь ACORN HEAD BOLT, 1/4-20 x 1-3/4 N/A 80 to 82 - FXB

Деталь ACORN HEAD BOLT, 1/4-20 x 1-3/4 N/A 80 to 82 - FXB

Деталь WASHER, 1/4 X 7/16 X 1/16

Деталь WASHER, 1/4 X 7/16 X 1/16

Деталь WASHER, No. 8 X 7/16 X 3/64

Деталь WASHER, No. 8 X 7/16 X 3/64

Деталь WASHER, 1/4 X 5/8 X 1 /16

Деталь WASHER, 1/4 X 5/8 X 1 /16

Деталь POP RIVET, 3/16 x 3/8 x 3/8 dia. hd. 80 to * - AI1 Models

Деталь NEEDLE BEARING crankcase cam cover

Деталь NEEDLE BEARING crankcase cam cover

Деталь CLAMP, electronic ignition wire 80 to * - All Models

Деталь CLAMP, electronic ignition wire 80 to * - All Models

Деталь RETAINING RING, oil pump drive shaft 71 to * - All Models

Деталь RETAINING RING, oil pump drive shaft 71 to * - All Models

Деталь O-RING 71 to * - All Models

Деталь O-RING 71 to * - All Models

Деталь KEY, gear shaft (2 - Early 75 & Earlier) 71 to * - All Models

Деталь KEY, gear shaft (2 - Early 75 & Earlier) 71 to * - All Models

Деталь PINION GEAR 71 to 77 - All Models

Деталь PINION GEAR 71 to 77 - All Models

Деталь NUT, gear shaft 71 to * - All Models

Деталь NUT, gear shaft 71 to * - All Models

Деталь PINION GEAR, 1.4751-56 pitch dia. (orange) 78 to * - All Models

Деталь PINION GEAR, 1.4745-51 pitch dia. (white) 78 to * - All Models

Деталь PINION GEAR, 1.4745-51 pitch dia. (white) 78 to * - All Models

Деталь PINION GEAR, 1.4737-45 pitch dia. (yellow) 78 to * - All Models

Деталь PINION GEAR, 1.4737-45 pitch dia. (yellow) 78 to * - All Models

Деталь PINION GEAR, 1.4729-37 pitch dia. (red) 78 to * - All Models

Деталь PINION GEAR, 1.4729-37 pitch dia. (red) 78 to * - All Models

Деталь PINION GEAR, 1.4721-29 pitch dia. (blue) 78 to * - All Models

Деталь PINION GEAR, 1.4721-29 pitch dia. (blue) 78 to * - All Models

Деталь PINION GEAR, 1.4715-21 pitch dia. (green) 78 to * - All Models

Деталь PINION GEAR, 1.4715-21 pitch dia. (green) 78 to * - All Models

Деталь PINION GEAR, 1.4710-15 pitch dia. (black) 78 to * - All Models

Деталь PINION GEAR, 1.4710-15 pitch dia. (black) 78 to * - All Models

Деталь CAM & PINION GEAR SET 71 to * - All Models

Деталь CAM & PINION GEAR SET 71 to * - All Models

Деталь BUSHING, oil pump shaft 71 to * - All Models

Деталь BUSHING, oil pump shaft 71 to * - All Models

Деталь SPACER, gear shaft pinion 71 to * - All Models

Деталь SPACER, gear shaft pinion 71 to * - All Models

Деталь OIL SCREEN, crankcase 71 to * - All Models

Деталь OIL SCREEN, crankcase 71 to * - All Models

Деталь OIL SCREEN SPRING 71 to * - All Models

Деталь OIL SCREEN SPRING 71 to * - All Models

Деталь GEAR COVER

Деталь GEAR COVER

Деталь GASKET gear cover

Деталь GASKET gear cover

Деталь GEAR COVER

Деталь GEAR COVER

Деталь GASKET gear cover

Деталь GASKET gear cover

Деталь GEAR COVER 80 to 84 - FXS-80, FXWG, FXE-80, FXSB | Consists of besides gear cover: 11, 43, 68

Деталь COVER, breather valve Late 82 to * - All Models

Деталь COVER, breather valve Late 82 to * - All Models

Деталь FITTING, straight

Деталь FITTING, straight

Деталь SPACER, gear cover 73 to 79 - FXE, FXEF; 77 to 79 - FXS

Деталь SPACER, gear cover 73 to 79 - FXE, FXEF; 77 to 79 - FXS

Деталь THRUST WASHER, breather valve - .115 thick 71 to Early 79 - All Models

Деталь THRUST WASHER, breather valve - .115 thick 71 to Early 79 - All Models

Деталь BREATHER VALVE, with gear 71 to Early 77 - All Models

Деталь BREATHER VALVE, with gear 71 to Early 77 - All Models

Деталь BREATHER VALVE GEAR

Деталь BREATHER VALVE GEAR

Деталь THRUST WASHER, breather valve - .120 thick 71 to Early 79 - All Models

Деталь THRUST WASHER, breather valve - .120 thick 71 to Early 79 - All Models

Деталь THRUST WASHER, breather valve - .125 thick 71 to Early 79 - All Models

Деталь THRUST WASHER, breather valve - .125 thick 71 to Early 79 - All Models

Деталь THRUST WASHER, breather valve - .110 thick 71 to Early 79 - All Models

Деталь THRUST WASHER, breather valve - .110 thick 71 to Early 79 - All Models

Деталь THRUST WASHER, breather valve - 0.110 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.115 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.115 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.120 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.120 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.125 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.125 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.130 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.130 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.135 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.135 thick (steel) Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.140 thick (steel). Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.140 thick (steel). Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.145 thick (steel). Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.145 thick (steel). Late 79 to Early 82 - All Models

Деталь THRUST WASHER, breather valve - 0.130 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.135 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.135 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.140 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.140 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.145 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.145 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.150 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.150 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.155 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.155 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.160 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.160 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.165 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь THRUST WASHER, breather valve - 0.165 thick (plastic) Late 82 to * - All Models | NOTE: use only plastic washers with plastic breather valve. Do not intermix plastic and steel parts.

Деталь CAM GEAR 71 to 77 - All Models

Деталь CAM GEAR 71 to 77 - All Models

Деталь Cam Gear - Late 77 to 84 Big Twins

Деталь Cam Gear - Late 77 to 84 Big Twins

Деталь THRUST WASHER, cam gear - 0.050 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear

Деталь THRUST WASHER, cam gear

Деталь THRUST WASHER, cam gear - 0.055 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.055 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.060 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.060 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.065 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.065 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.070 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.070 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.075 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.075 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.080 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.080 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.085 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.090 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.090 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.095 thick 71 to * - All Models

Деталь THRUST WASHER, cam gear - 0.095 thick 71 to * - All Models

Деталь BUSHING, gear cover 71 to * - All Models

Деталь BUSHING, gear cover 71 to * - All Models

Деталь BUSHING, gear cover pinion shaft

Деталь BUSHING, gear cover pinion shaft

Деталь DRIVE GEAR, oil pump - 25 T N/A 71 & 72 - All Models

Деталь DRIVE GEAR, oil pump - 25 T N/A 71 & 72 - All Models

Деталь DRIVE GEAR, oil pump - 24 T 73 to * - All Models

Деталь DRIVE GEAR, oil pump - 24 T 73 to * - All Models

Деталь DRIVE SHAFT, oil pump 71 to * - All Models

Деталь DRIVE SHAFT, oil pump 71 to * - All Models

Деталь KEY, oil pump gear (2; 1 - gear shaft - Late 75 & Later) 71 to * - All Models

Деталь KEY, oil pump gear (2; 1 - gear shaft - Late 75 & Later) 71 to * - All Models

Деталь DRIVE GEAR, oil pump N/A 71 & 72 - All Models

Деталь DRIVE GEAR, oil pump N/A 71 & 72 - All Models

Деталь DRIVE GEAR, oil pump 73 to * - All Models

Деталь DRIVE GEAR, oil pump 73 to * - All Models

Деталь COVER inner

Деталь TIMER COVER (polished) 80 to 82 - FXE, FXEF, FXEF-80, FXE-80

Деталь TIMER COVER (polished) 80 to 82 - FXE, FXEF, FXEF-80, FXE-80

Деталь TIMER COVER, (black) 80 to 82 - FXS-80, FXB, FXWG

Деталь TIMER COVER, (black) 80 to 82 - FXS-80, FXB, FXWG

Деталь TIMER COVER, polished aluminum N/A 83 to * - All Models

Деталь TIMER COVER, polished aluminum N/A 83 to * - All Models

Деталь LABEL, timer cover N/A 71 to 79 - All Models

Деталь LABEL, timer cover N/A 71 to 79 - All Models

Деталь TIMER COVER N/A 71 to 79 - All Models

Деталь TIMER COVER N/A 71 to 79 - All Models

Деталь GASKET, ignition cover

Деталь GASKET, ignition cover

Деталь STUD, ignition timer cover 80 to * - All Models

Деталь STUD, ignition timer cover 80 to * - All Models

Деталь CLAMP, circuit breaker wire 71 to 79 - All Models

Деталь CLAMP, circuit breaker wire 71 to 79 - All Models

Деталь Oil line fitting, rocker arm cover-front - 81 to 84 FLH-80, Classic, FX

Деталь Oil line fitting, rocker arm cover-front - 81 to 84 FLH-80, Classic, FX

Деталь OIL SEAL 71 to * - All Models
