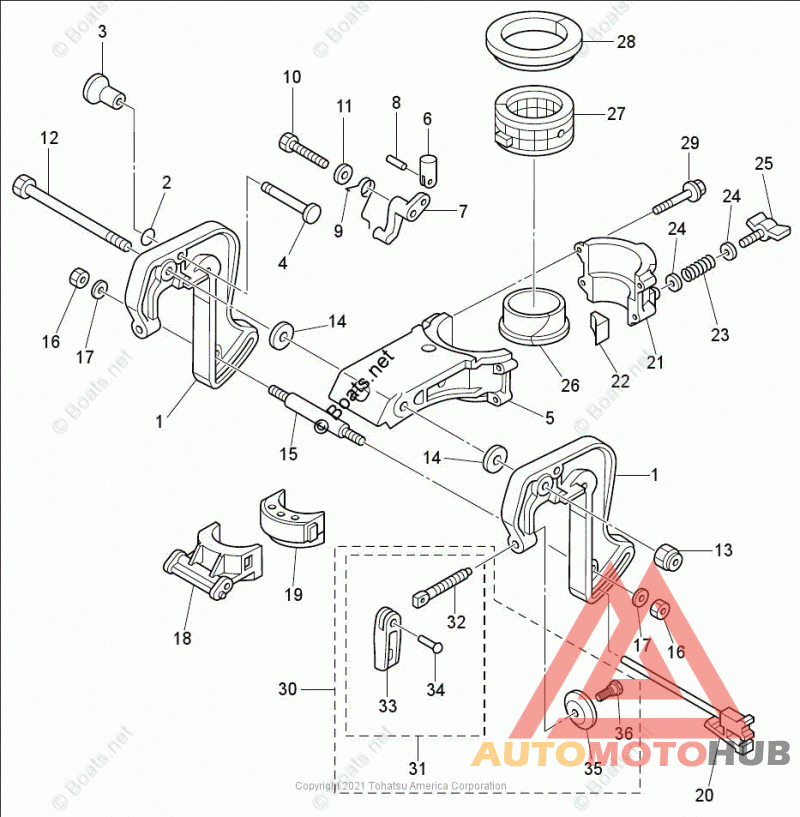

CLAMP BRACKET/SWIVEL BRACKET

BOLT

THRUST ROD, CLIP TYPE *{/*will not work with older flat bottom stern bracket-will only work with newer s/s bracket*/}*

PIVOT BUSHING (BLACK)

TILT STOPPER

LEVER

SPRING

RIVET

SHOULDER BOLT

THRUST BUSHING

DAMPER (LOWER)

BOLT

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

ROLL PIN (10 MULTIPLE)

STOPPER NLA *{/*PART IS NO LONGER AVAILABLE*/}*

THRUST SUPPORTER

BUSHING UPPER

SPRING, STEER. ADJUST SCREW

BOLT, 6-35 PRECOATED

CLAMP SCREW HANDLE (AMB)

CLAMP BRACKET (SEE NOTE) *{/*MUST USE 3AB624640M TILT STOPPER*/}*

SWIVEL BRACKET "A"

SWIVEL BRACKET "B"

CLAMP SCREW KIT, F2B/2.5B/3.5B-F4/5/6C

CLAMP SCREW KIT, F2B/2.5B/3.5B-F4/5/6C

CLAMP SCREW (THREADED STYLE)

NYLON NUT (10 MULTIPLE)

O-RING

WASHER

DISTANCE PIECE

FRICTION PLATE

KNOB, T/STOPPER

PAD, CLAMP SCREW (THREADED STYLE)

FRICTION KNOB
