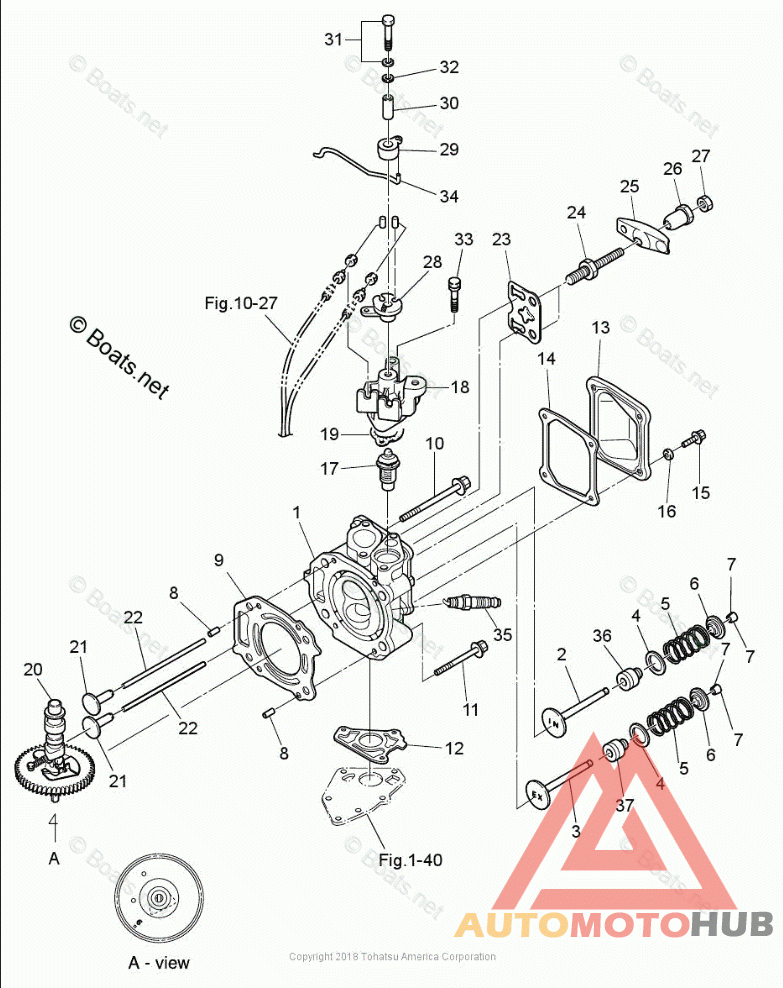

CYLINDER HEAD & VALVE & CAMSHAFT

DOWEL PIN 6-12

BOLT

ADJUST NUT (4.0mm THICK)

THROTTLE ROD

BOLT, CYLINDER HEAD

COTTER

CYLINDER HEAD ASSY, (LPG)

SEAL, INT VALVE STEM

BOLT, PIVOT

SEAL, EXH VALVE STEM

COLLAR

CAMSHAFT ASSY., MFS/NSF4/5/6A2-C

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

PIVOT, ROCKER ARM

PLATE, PUSH ROD

GASKET, THERMOSTAT *{/*For 40C serial 94363 and below has different gasket. That gasket is no longer available. Have to replace cylinder head and thermostat cap to newer style.*/}*

THROTTLE DRUM

VALVE SPRING

WASHER

WASHER

VALVE, INTAKE

VALVE, EXHAUST

ROCKER ARM

THROTTLE OPENER

PUSH ROD

CAP, THERMOSTAT

GASKET, CYLINDER HEAD

GASKET, HEAD COVER

THERMOSTAT

GASKET, EXHAUST PORT

SEAT, VALVE SPRING

LIFTER

SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)
