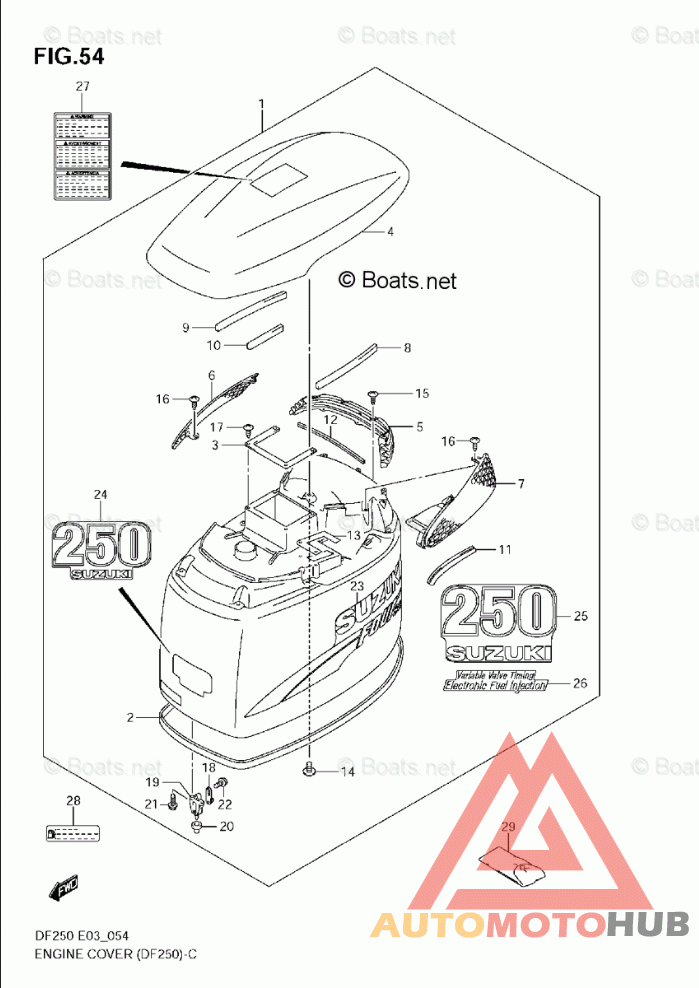

Engine Cover (DF250)(Model:04-09)

COVER SET, ENGINE *{DF250T:680084~ DF250Z:680040~}*

COVER SET, ENGINE (BLACK)

COVER SET, ENGINE (BLACK) *{MODEL:07~09}*

COVER SET, ENGINE (BLACK) *{MODEL:06}*

COVER SET, ENGINE (BLACK) *{DF250T:510725~ DF250Z:510189~}*

COVER SET, ENGINE (BLACK) *{DF250T:510595~ DF250Z:510133~}*

RUBBER, ENG COVER *{<-61112-93J00}*

GUARD, AIR INTAKE

HANDLE, TILT UP (BLACK) *{MODEL:07~09}*

HANDLE, TILT UP (BLACK) *{->61431-93J01-0EP USED WITH 03542-05163(8PCS) 09160-05048(8PCS) WASHER}*

HANDLE, TILT UP (BLACK) *{DF250T:680084~ DF250Z:680040~}*

LOUVER, TILT UP HANDLE

COVER, AIR INTK INNER STBD

COVER, AIR INTK INNER PORT

TAPE, TILT UP HANDLE (L:250)

TAPE, TILT UP HANDLE (L:106) *{->61438-93J00}*

SEAL, TILT UP HANDLE PORT

SEAL, TILT UP HANDLE RR

SEAL, AIR VENT

SCREW, TILT UP HANDLE

SCREW, TILT UP HANDLE *{DF250T:680084~ DF250Z:680040~}*

SCREW, TILT UP HANDLE LOUVER

SCREW, AIR INTK INNER COV

SCREW, AIR INTK GUARD

FASTENER

BRACKET, FASTENER

CUSHION, ENG COV FASTENER RR

BOLT, FASTENER BRACKET

BOLT, ENG COV FASTENER

STRIPE, ENGINE COVER STBD

STRIPE, ENGINE COVER PORT

MARK, EMBLEM FRONT (250)

MARK, EMBLEM REAR (250)

DECAL, EFI & VVT

LABEL, ENGINE COVER

LABEL, FUEL LIMITATION

TOOL SET

REFER TO FIG.54A(K- 4) FOR DF250 MODEL:10~ REFER TO FIG.55 (K- 6) FOR DF250S MODEL:08~09 REFER TO FIG.55A(K- 7) FOR DF250S MODEL:10~
