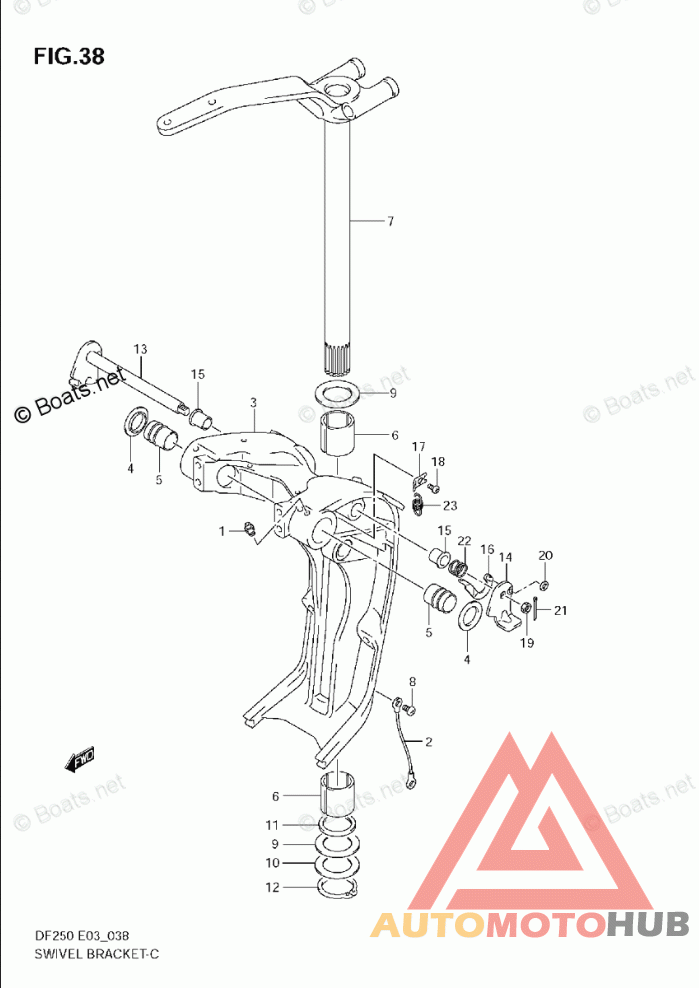

Swivel Bracket

NIPPLE, GREASE SWIVEL BRKT *{DF200T:510932~ DF225T:510552~ DF250T:511668~ DF200Z:510175~ DF225Z:510139~ DF250Z:510529~}*

NIPPLE, GREASE SWIVEL BRKT

LEAD (SWIVEL TO MOUNT BRKT)

BRACKET, SWIVEL (BLACK) *{->43100-93810-0EP BRACKET SET,SWIVEL CONTENTS: BRACKET,SWIVEL BUSH,CLAMP SHAFT SWIVEL(2PCS) LEAD,CLAMP TO SWIVEL SCREW,CLAMP TO SWIVEL LEAD(2PCS)}*

BRACKET, SWIVEL (BLACK) *{DF200T:680188~ DF225T:680175~ DF250T:680339~ DF200Z:680026~ DF225Z:680048~ DF250Z:680144~}*

BRACKET, SWIVEL (BLACK) *{DF200T:510932~ DF225T:510552~ DF250T:511668~ DF200Z:510175~ DF225Z:510139~ DF250Z:510529~ ->43100-93810-0EP BRACKET SET,SWIVEL CONTENTS: BRACKET,SWIVEL BUSH,CLAMP SHAFT SWIVE

WASHER, SWIVEL TO CLAMP BRKT

BUSH, CLAMP SHAFT SWIVEL *{DF200T:510932~ DF225T:510552~ DF250T:511668~ DF200Z:510175~ DF225Z:510139~ DF250Z:510529~}*

BUSH, STEERING

BRACKET, STEERING (BLACK)

SCREW, MT BRKT TO SWIVEL LEAD (6X10)

WASHER, SWIVEL BRACKET (39.5X64X1.0)

SHIM, SWIVEL BRACKET (39.5X64X0.3)

SEAL, PILOT SHAFT OIL

CIRCLIP, PILOT SHAFT LOWER

LEVER, TILT LOCK *{->41200-93811 LEVER & LINK SET,TILT LOCK}*

LEVER, TILT LOCK *{DF200T:980872~ DF225T:980646~ DF250T:981146~ DF200Z:980172~ DF225Z:980275~ DF250Z:980460~}*

LEVER, TILT LOCK PORT *{->41200-93811 LEVER & LINK SET,TILT LOCK}*

LEVER, TILT LOCK PORT *{DF200T:980872~ DF225T:980646~ DF250T:981146~ DF200Z:980172~ DF225Z:980275~ DF250Z:980460~}*

BUSH, TILT STOPPER ROD

LINK, TILT LOCK LEVER

LINK, TILT LOCK LEVER *{DF200T:980872~ DF225T:980646~ DF250T:981146~ DF200Z:980172~ DF225Z:980275~ DF250Z:980460~}*

BRACKET, TILT LOCK SPRING

SCREW, TILT LOCK SPR (6X10)

NUT, TILT LOCK LEVER PORT

WASHER, TILT LOCK LEVER LINK (6.5X13X1.0)

PIN, TILT LK LEVER LINK COTTE

SPRING, TILT LOCK SHAFT

SPRING, TILT LOCK

REFER TO FIG.39(H- 8) FOR DF250S,DF200TL
