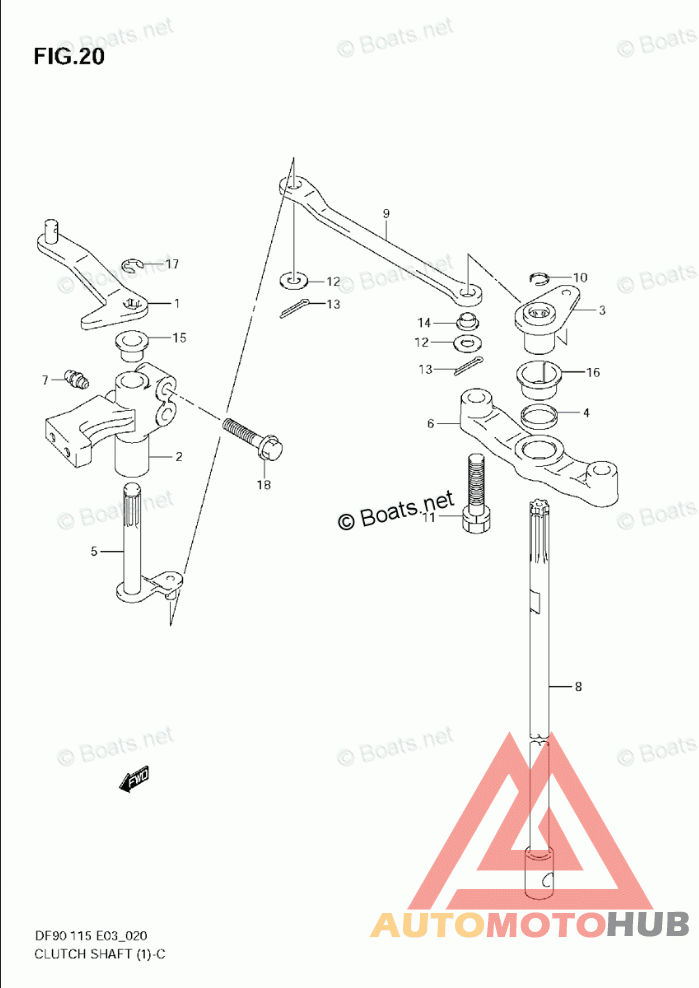

CLUTCH SHAFT

LEVER, CLUTCH *{DF90:251530~ DF115:252817~}*

LEVER, CLUTCH *{->21110-90J02 USED WITH 21151-90J01}*

HOLDER, CLUTCH LEVER *{DF90:251530~ DF115:252817~}*

HOLDER, CLUTCH LEVER *{->21151-90J01 USED WITH 21110-90J02}*

SHAFT, CLUTCH

BUSH, CLUTCH SHAFT HOLDER

ARM, CLUTCH SHAFT

HOLDER, CLUTCH SHAFT

ROD, CLUTCH (L)

ROD, CLUTCH (X)

LINK, CLUTCH LEVER

RING, CLUTCH ROD

BOLT (8X35)

WASHER (6.5X15X1.5)

PIN, CLUTCH LEVER LINK

BUSH, CLUTCH LEVER LINK

BUSH, CLUTCH LEVER

BUSH, CLUTCH SHAFT

E RING

BOLT, HOLDER CLUTCH LINK

REFER TO FIG.21(D- 3) FOR DF90T:372297~ DF115T:373696~ REFER TO FIG.22(D- 4) FOR DF90T:6806867~ DF115T:681518~ DF115Z,DF100T
