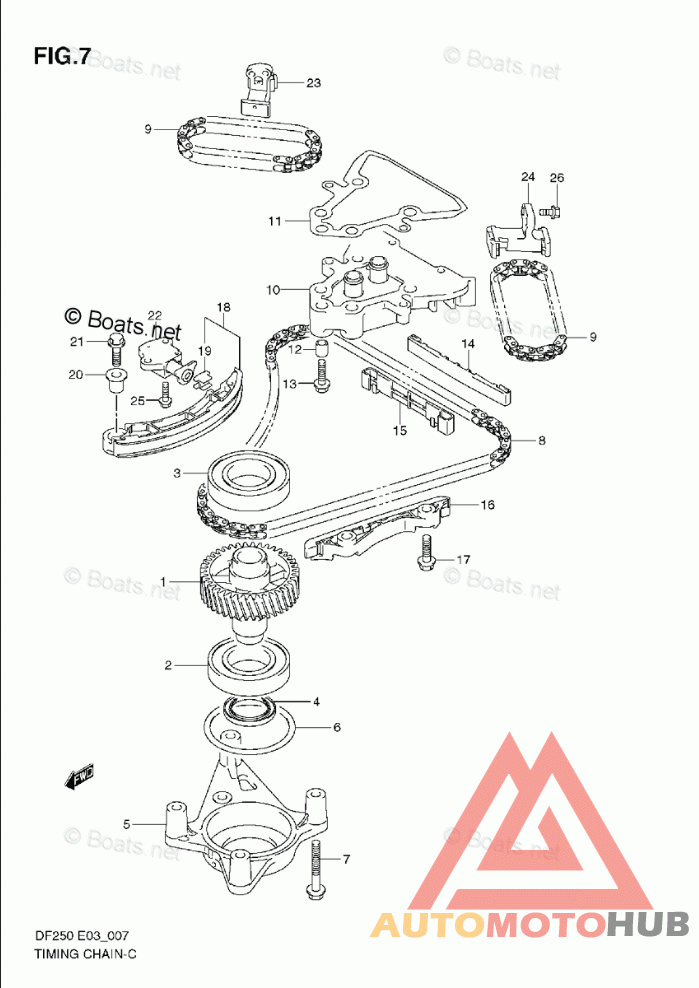

TIMING CHAIN

Деталь GEAR, DRIVEN

Деталь GEAR, DRIVEN *{DF250S}*

Деталь BEARING, LOWER *{DF200T:780781~ DF225T:780699~ DF250T:781102~ DF200Z:780110~ DF225Z:780138~ DF250Z:780366~ DF250S}*

Деталь BEARING, LOWER

Деталь BEARING, UPPER

Деталь BEARING, UPPER *{DF250S}*

Деталь SEAL, OIL

Деталь HOLDER, DRIVEN GEAR

Деталь O RING, HOLDER

Деталь BOLT, HOLDER

Деталь CHAIN, TIMING 1ST

Деталь CHAIN, TIMING 2ND

Деталь BASE, TIMING CHAIN GUIDE NO.1

Деталь GASKET, GUIDE BASE

Деталь PIN, GUIDE BASE

Деталь BOLT, GUIDE BASE

Деталь SHOE, TIMING CHAIN UPPER

Деталь SHOE, TIMING CHAIN LOWER

Деталь GUIDE, TIMING CHAIN NO.2

Деталь BOLT, CHAIN GUIDE

Деталь TENSIONER ASSY, TIMING CHAIN

Деталь PAD, TIMING CHAIN TENSIONER

Деталь SPACER, TIMING CHAIN TENSIONE

Деталь BOLT, TENSIONER

Деталь ADJUSTER ASSY, TENSIONER *{DF200T:421625~ DF200Z:421114~ DF225T:421416~ DF225Z:421100~ DF250T:422099~ DF250Z:421313~ DF250S}*

Деталь ADJUSTER ASSY, TENSIONER NO.1

Деталь TENSIONER ASSY, STBD

Деталь TENSIONER ASSY, PORT

Деталь BOLT, ADJUSTER NO.1

Деталь BOLT, ADJUSTER ASSY
