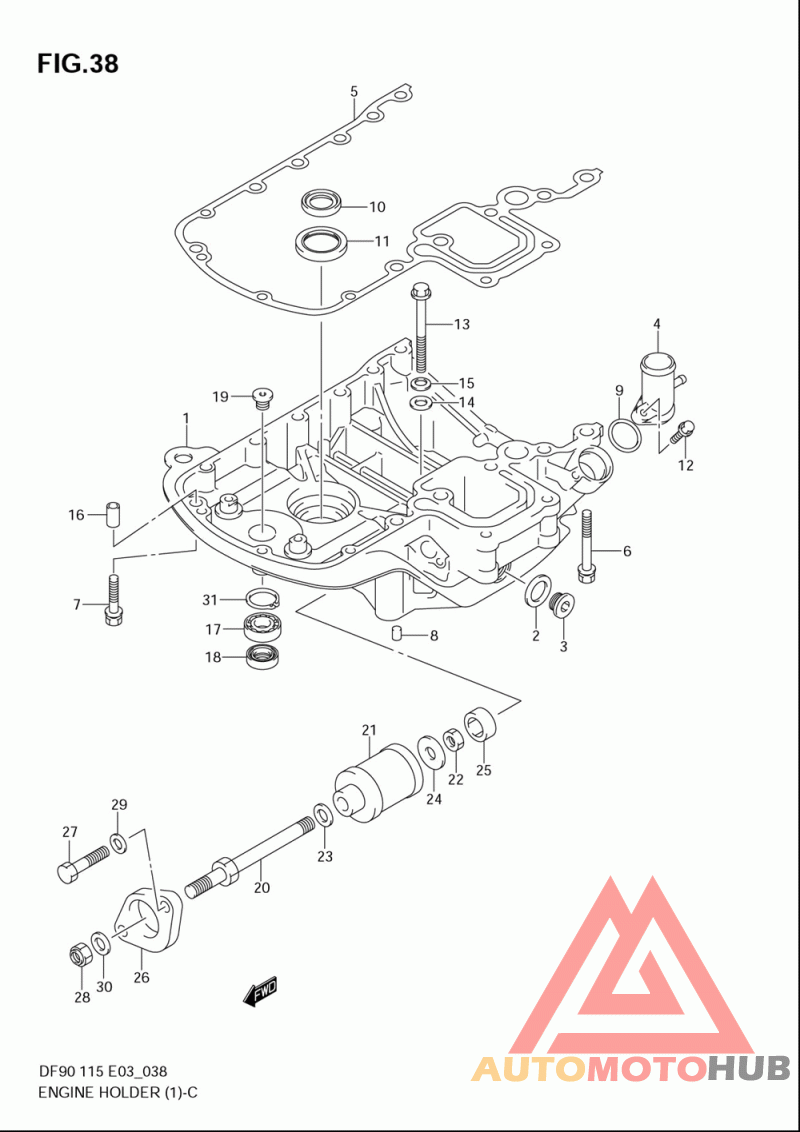

Основание двигателя

Holder & Cl Sft (inc.no.2, 3, 10, 11, Fig.5 No.7->51110-90830-0epcontentsshaft, Clutchlink, Clutch Leverplug, Clutch Shaftholder Set(51110-90820-0ep))

Holder Set, Engi (df90:372297~df115:373696~inc.no.2, 3, 10, 11, 17, 18fig.5 No.7)

.gasket (18.5x28x2.6) ()

.plug ()

.plug (df90:511126~df115:512041~)

Union, Water Ret ()

Gasket, Engine H ()

Bolt (8x70) ()

Bolt, 8x40 (<-09116-08098)

Pin ()

O Ring (d:3.1, Id:26.4) ()

Oil Seal ()

Seal, Oil ()

..bolt ()

Болт

Washer (df90:251396~df115:252549~)

Washer, Wave (df90:251396~df115:252549~)

.pin ()

Bearing, Clutch Shaft (df90:372297~df115:373696~)

Seal, Clutch Shaft (df90:372297~df115:373696~)

Plug (df90:372297~df115:373696~)

(->54100-90803)

Bolt, Upper Moun (df90:251596~df115:251604~<-54112-90j02)

Mount Set, Upper (df90:~251395df115:~252548)

Mount Set, Upper (df90:251396~df115:252549~)

Mount, Upper (model:03~06)

Гайка

Washer (12.5x24x2.5) (<-09160-12099)

Washer (12x32x3.0) ()

Washer (12.5x22x3) (model:03~06<-09160-12101)

Mount, Upper Thr ()

Cover, Upper Mou ()

Болт

Bolt, Drive Shaf (model:06)

Гайка

Washer (model:01~05)

Washer (12.5x22x2.5) ()

08331-41358 (df90:510374~df115:510603~)

Cover, Upper Mou ()
